Component Description For 360 Degree Viewing System Control Unit - GF54.65-P-5003RF
Model 205
up to model year 2019
with code 501 (360° camera)
Model 253 (except 253.99)
up to model year 2020
with code 501 (360° camera)
Shown on model 205.0
Location

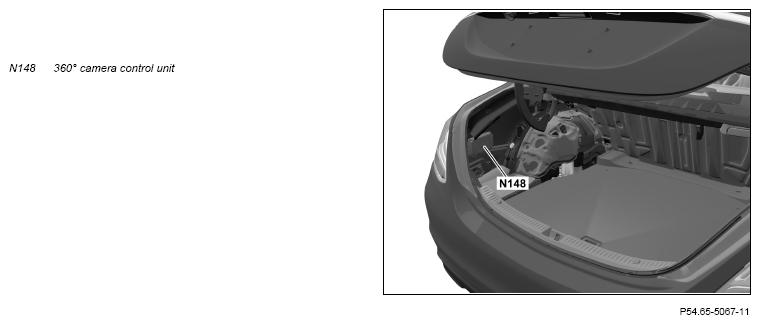

The 360° camera control unit is located on the left sidewall in the trunk.
Tasks
The 360° camera control unit has the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
- Output of signals
Reading in of signals
The input factors are read in via the following connections:
- Low voltage differential signal line (LVDS)
- User interface CAN (CAN HMI)
LVDS line
The picture data of the following components are read in via a low voltage differential signaling line in each case:
- Left 360° outside mirror camera (B84/7)
- Right 360° outside mirror camera (B84/8)
- Camera, front 360° camera (B84/9)
- Camera, rear 360° camera (B84/10)
User interface CAN
The signals for activating the 360° camera and for calculating the representation in the Audio/COMAND display (A40/8) are read in by the 360° camera control unit over the user interface CAN. The functions that use these signals are described in the individual function descriptions (see the appropriate block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The signals for activating the Audio/COMAND display are sent by the 360° camera control unit over the user interface CAN. The functions that use these signals are described in the individual function descriptions (see the appropriate block diagram or function schematic).
Output of signals
The 360° camera control unit transmits the visual data via an LVDS line to the head unit (A26/17).
| Wiring diagram for 360° camera control unit | Model 205 up to model year 2019 with code 501 (360° camera) Control unit N148 Model 253 (except 253.99) up to model year 2020 with code 501 (360° camera) Control unit N148 | PE54.65-P-2104-97FBA |
