Armrest Heating Control Unit, Basic Function - GF68.20-P-9890A

Model all (CAR) with code 906 (Front armrest heater)

Overview

This document contains information on:

• General
• Location

Location

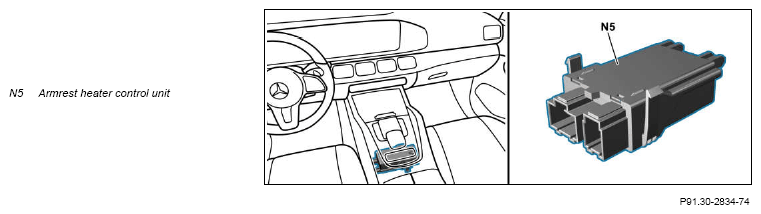

The armrest heater control unit is located in the center console.

• Function requirement

General

The armrest heater control unit takes over the heating control of the armrest in the center console.

Function requirement

• Circuit 15R ON
• Heat heater coded
