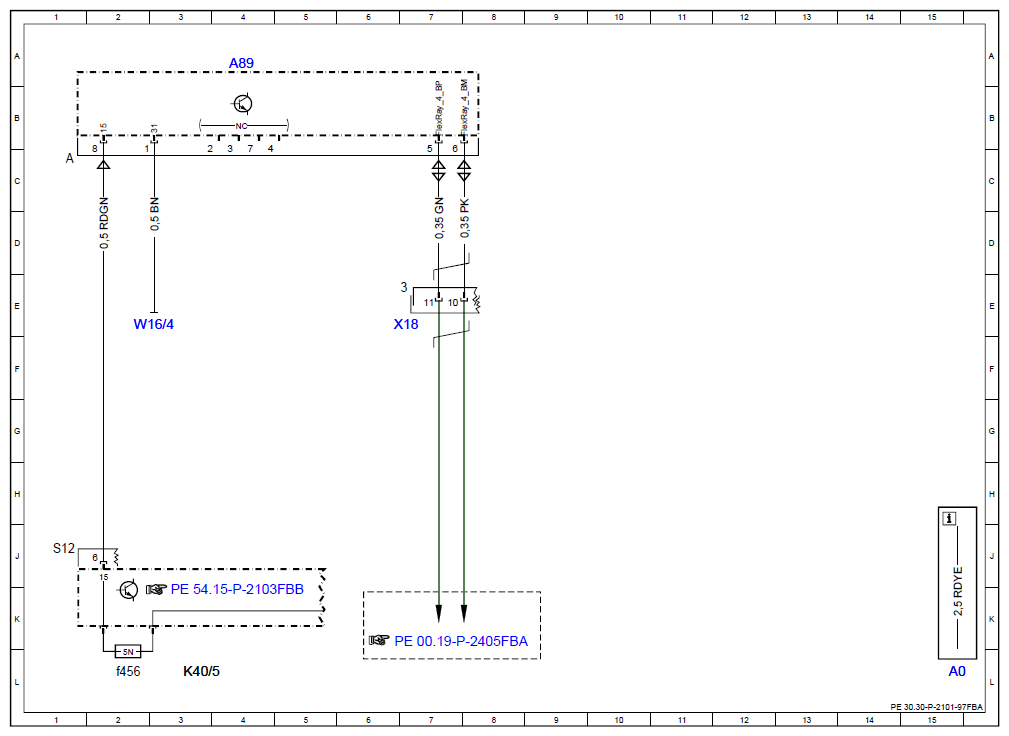

Wiring Diagram For Distronic (DTR) Control Unit - PE30.30-P-2101-97FBA
Engine 177, 274, 276, 626, 651 in model 205 up to model year 2019 with code 239 (Active Distance Assist DISTRONIC) Control unit A89 Engine 274, 651 in model 253 (except 253.99) up to model year 2020 with code 239 (Active Distance Assist DISTRONIC) Control unit A89
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 15L |
| A89 | DISTRONIC electric controller unit | 4A |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f456 | Fuse 456 | 2L |
| W16/4 | Right major assembly compartment ground point | 2E |
| XI8 | Cockpit wiring harness and frame floor assembly electrical connector | 7E |
