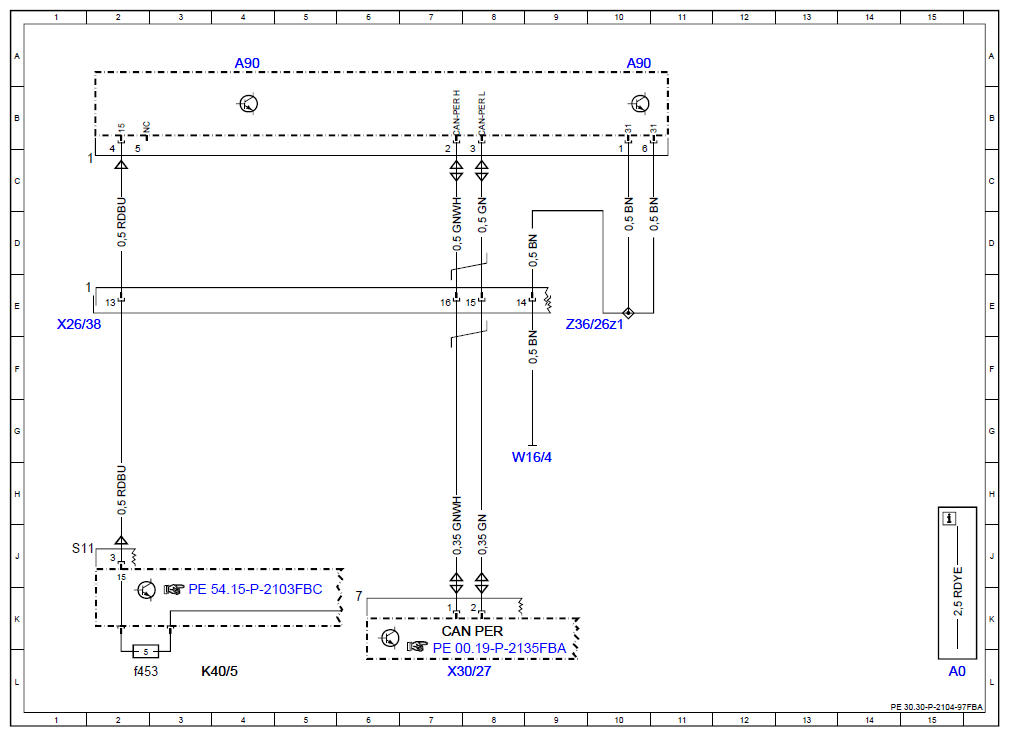

Wiring Diagram For Collision Prevention Assist Control Unit - PE30.30-P-2104-97FBA
Engine 177, 274, 276, 626, 651 in model 205 up to model year 2019 with code 258 (COLLISION PREVENTION ASSIST) Control unit A90 Engine 177, 274, 276, 642, 651 in model 253 (except 253.99) up to model year 2020 with code 258 (COLLISION PREVENTION ASSIST) Control unit A90
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 4A |
| A90 | COLLISION PREVENTION ASSIST controller unit | 10A |
| CAN PER | Peripherals CAN | 7K |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f453 | Fuse 453 | 2L |
| W16/4 | Right major assembly compartment ground point | 8H |
| X26/38 | Front bumper and frame wiring harness electrical connector | 1E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
| Z36/26z1 | DISTRONIC PLUS front ground line connector sleeve | 10E |
