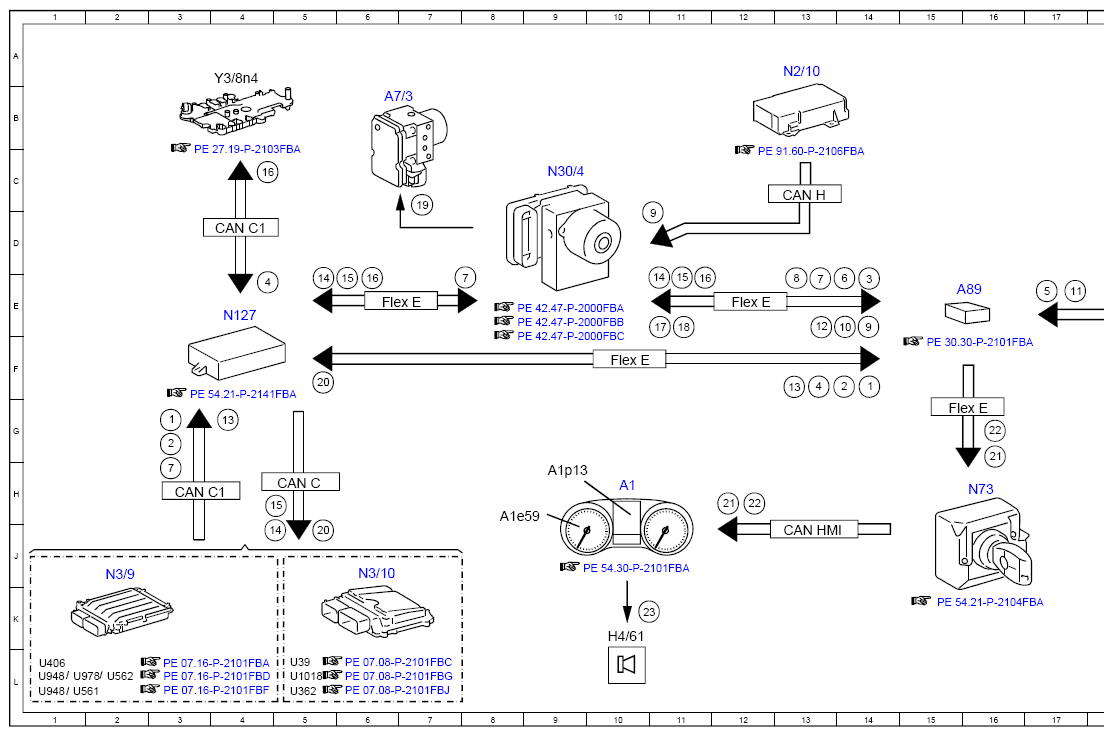

Distronic Plus Electrical Function Schematic - PE30.30-P-2053-97FBA
Model 205 up to model year 2019 with code 239 (Active Distance Assist DISTRONIC) Model 253 (except 253.99) up to model year 2020 with code 239 (Active Distance Assist DISTRONIC)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 14F |
| 1 | Engine running, signal | 3G |
| 10 | Wheel angle, signal | 14E |
| 11 | Combination switch, status | 17E |
| 11 | Combination switch, status | 20F |
| 12 | Brake pedal, status | 13E |
| 13 | Accelerator pedal position, signal | 13F |
| 13 | Accelerator pedal position, signal | 4G |
| 14 | Engine torque, increase request | 11E |
| 14 | Engine torque, increase request | 5E |
| 14 | Engine torque, increase request | 4J |
| 15 | Engine torque, reduce request | 6E |
| 15 | Engine torque, reduce request | 4H |
| 15 | Engine torque, reduce request | 11E |
| 16 | Engage targeted gear, request | 4C |
| 16 | Engage targeted gear, request | 6E |
| 16 | Engage targeted gear, request | 11E |
| 17 | Braking torque increase, request | 11E |
| 18 | Braking torque reduction, request | 11E |
| 19 | Traction system hydraulic unit, actuation | 7C |
| 2 | Drivetrain operational, signal | 14F |
| 2 | Drivetrain operational, signal | 3G |
| 20 | Object information, data package | 5F |
| 20 | Object information, data package | 5J |
| 21 | Warning and system messages, request | 16G |
| 21 | Warning and system messages, request | 12H |
| 22 | Warning tone, request | 16G |
| 22 | Warning tone, request | 12H |
| 23 | Speaker, actuation | 10K |
| 24 | Light-emitting diode actuation | 22D |
| 3 | Parking brake, status | 14E |
| 4 | Gear range, status | 13F |
| 4 | Gear range, status | 4E |
| 5 | CRUISE CONTROL lever, signal | 17E |
| 5 | CRUISE CONTROL lever, signal | 20E |
| 6 | Wheel speed, signal | 14E |
| 7 | Available torque, signal | 3H |
| 7 | Available torque, signal | 8E |
| 7 | Available torque, signal | 13E |
| 8 | Braking torque, signal | 13E |
| 9 | Turn rate, lateral and longitudinal acceleration sensor, signal | 11D |
| 9 | Turn rate, lateral and longitudinal acceleration sensor, signal | 14E |
| A1 | Instrument cluster | 10H |
| A1e59 | DISTRONIC warning lamp | 8H |
| A1p13 | Multifunction display | 9H |
| A7/3 | Traction system hydraulic unit | 6B |
| A89 | DISTRONIC electric controller unit | 16E |
| CAN C | Engine CAN | 5H |
| CAN C1 | Drive train CAN | 3H |
| CAN C1 | Drive train CAN | 4D |
| CAN H | Vehicle dynamics CAN | 13C |
| CAN HMI | User interface CAN | 13J |
| Flex E | Chassis FlexRay | 6E |
| Flex E | Chassis FlexRay | 12E |
| Flex E | Chassis FlexRay | 10F |
| Flex E | Chassis FlexRay | 15G |
| Flex E | Chassis FlexRay | 18E |
| H4/61 | Instrument cluster speaker | 10K |
| N127 | Drivetrain control unit | 4E |
| N2/10 | Supplemental restraint system control unit | 13A |
| N3/10 | ME-SFI [ME] control unit | 6J |
| N3/9 | CDI control unit | 2J |
| N30/4 | Electronic Stability Program control unit | 9C |
| N73 | Electronic ignition switch control unit | 16H |
| N80 | Steering column module control unit | 21E |
| S4 | Combination switch | 19F |
| S40/4 | Cruise control lever | 20B |
| S40/4r1 | DISTRONIC control | 20B |
| S40/4s1 | Resume from memory switch | 20B |
| S40/4s2 | Decelerate and set switch | 20C |
| S40/4s3 | Accelerate and set switch | 20C |
| S40/4s4 | OFF switch | 20C |
| S40/4s6 | SPEEDTRONIC switch | 20C |
| S40/4v1 | SPEEDTRONIC light emitting diode | 22C |
| U1018 | Valid for gasoline engine 276 | 5L |
| U2 | Not valid for USA | 20C |
| U2 | Not valid for USA | 21C |
| U362 | Valid for gasoline engine 274 | 5L |
| U39 | Valid for gasoline engine 177 | 5L |
| U406 | Valid for diesel engine 626 | 1L |
| U561 | Valid for Delphi system | 1L |
| U562 | Valid for Bosch system | 2L |
| U948 | Valid for diesel engine 651 | 1L |
| U948 | Valid for diesel engine 651 | 1L |
| U978 | Valid for hybrid drive | 1L |
| Y3/8n4 | Fully integrated transmission control, control unit | 4A |
