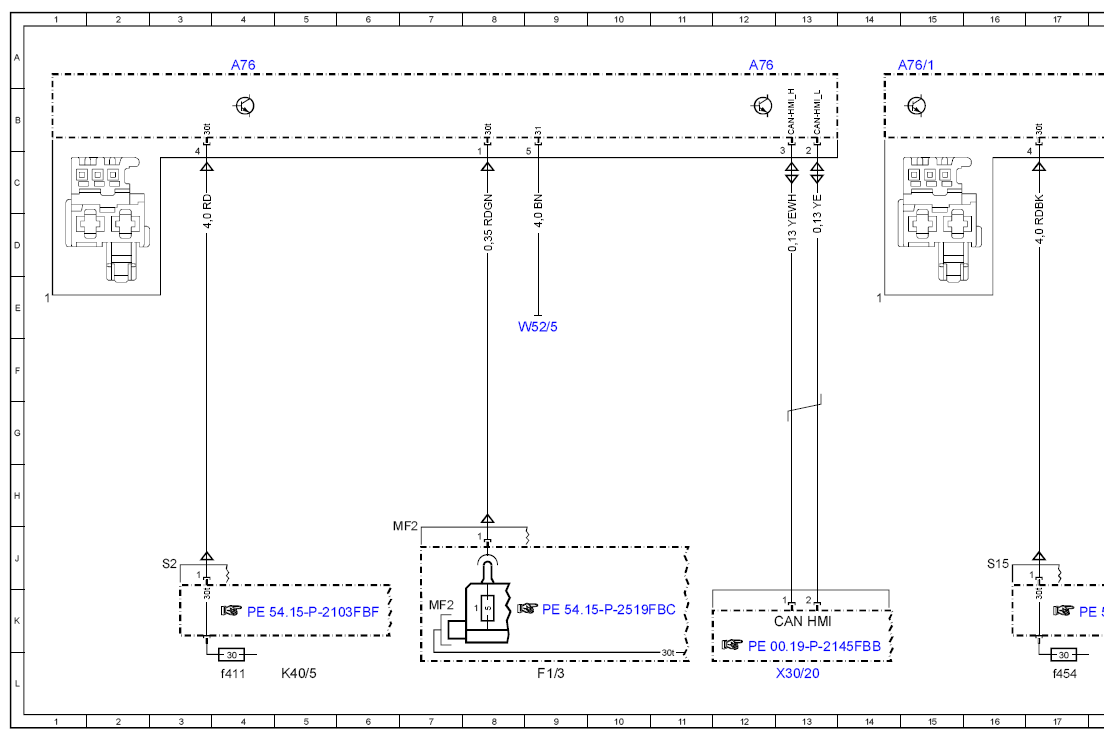

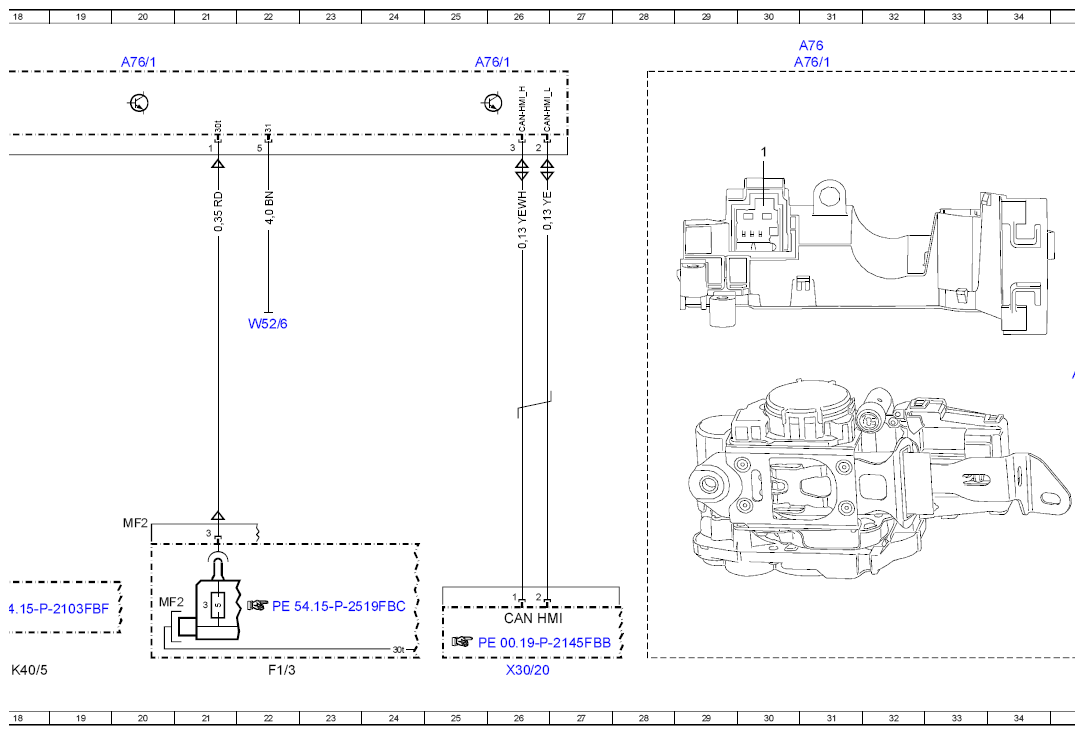

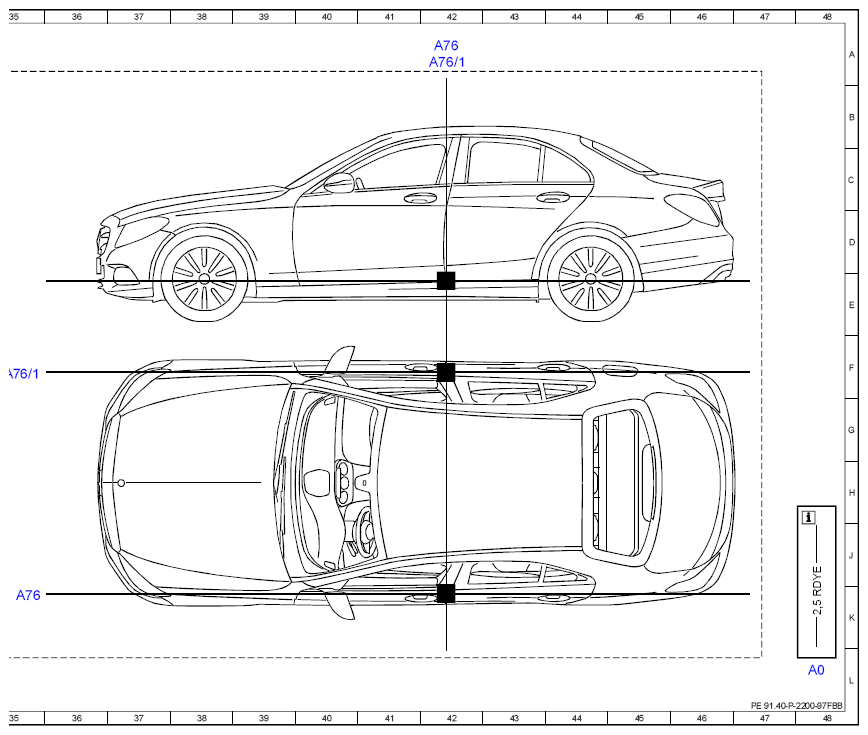

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97FBB
Model 205 from Model J. 2019 withCode 299 (PRE-SAFE®)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A76 | Left front reversible emergency tensioning retractor | 4A |
| A76 | Left front reversible emergency tensioning retractor | 12A |
| A76 | Left front reversible emergency tensioning retractor | 35K |
| A76 | Left front reversible emergency tensioning retractor | 31A |
| A76 | Left front reversible emergency tensioning retractor | 42A |
| A76/1 | Right front reversible emergency tensioning retractor | 15A |
| A76/1 | Right front reversible emergency tensioning retractor | 20A |
| A76/1 | Right front reversible emergency tensioning retractor | 35F |
| A76/1 | Right front reversible emergency tensioning retractor | 25A |
| A76/1 | Right front reversible emergency tensioning retractor | 31A |
| A76/1 | Right front reversible emergency tensioning retractor | 42A |
| CAN HMI | User interface CAN | 13K |
| CAN HMI | User interface CAN | 26K |
| F1/3 | Passenger-side A-pillar fuse box | 9L |
| F1/3 | Passenger-side A-pillar fuse box | 22L |
| F1/3MF2 | Multiple fuse 2 | 7K |
| F1/3MF2 | Multiple fuse 2 | 20K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5 | Rear fuse and relay module | 18L |
| K40/5f411 | Fuse 411 | 4L |
| K40/5f454 | Fuse 454 | 17L |
| W52/5 | Left center longitudinal member ground point | 9E |
| W52/6 | Right center longitudinal member ground point | 22E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 13L |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 26L |
