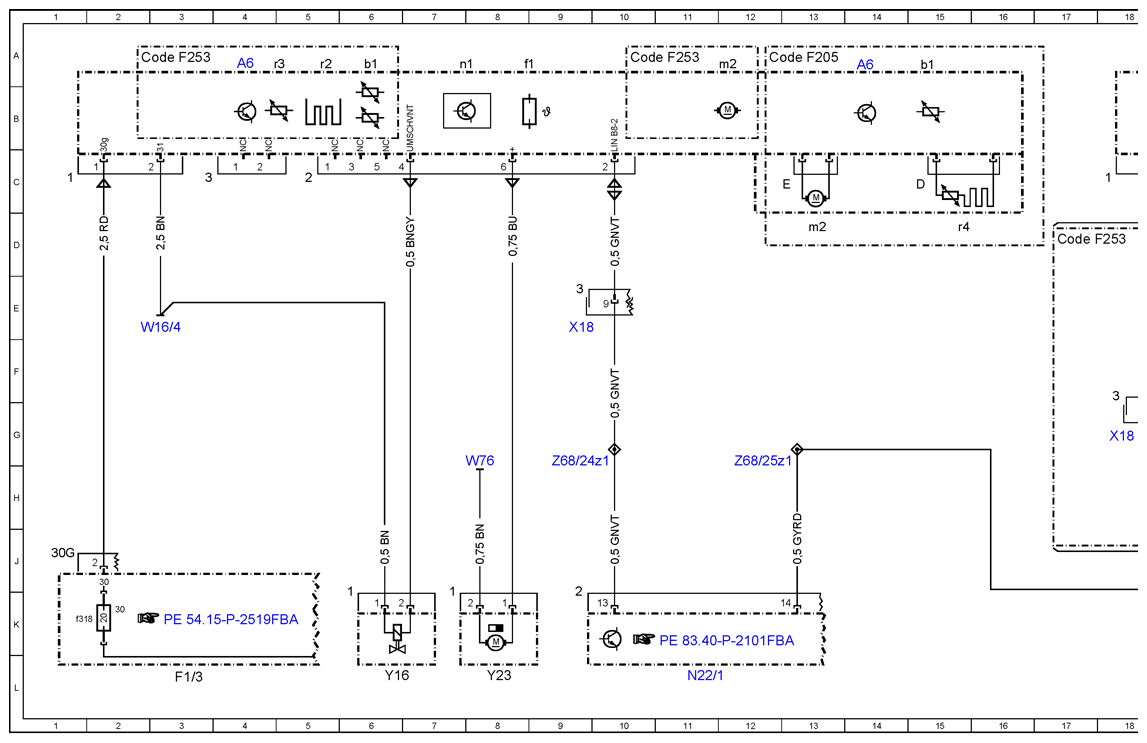

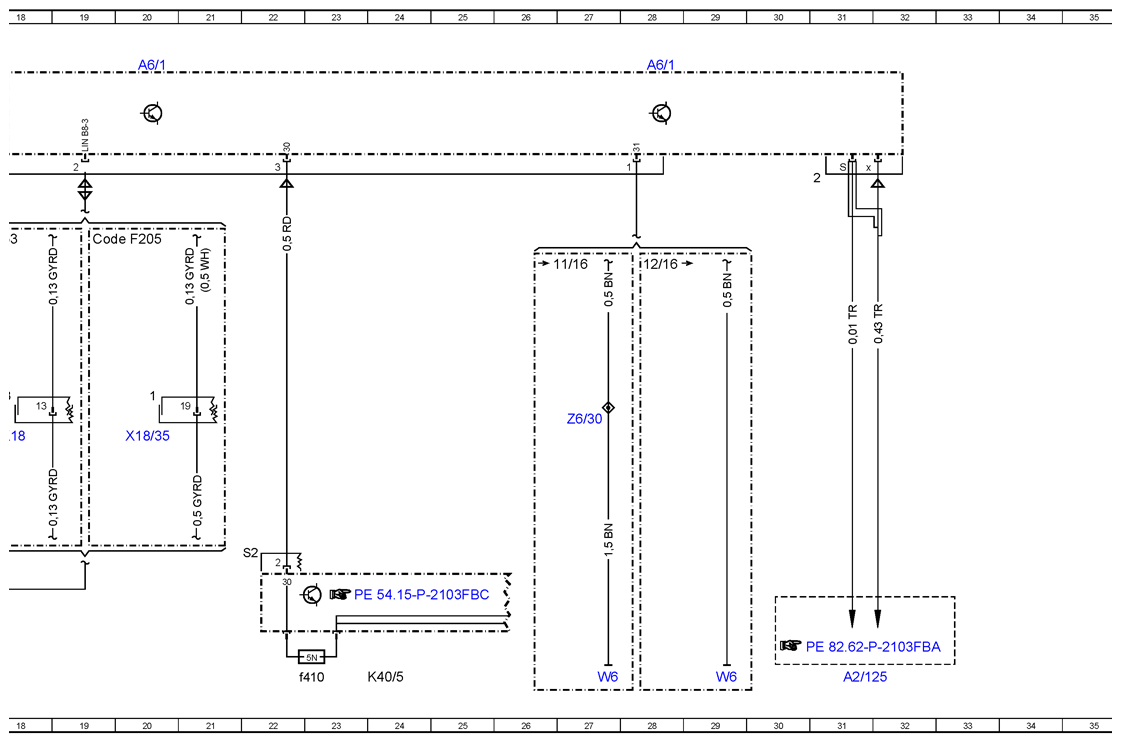

Wiring Diagram Of Stationary Heater (STH) Control Module - PE83.70-P-2101-97FBA
Model 205 up to model year 2019 with code 228 (Auxiliary heater) Control unit A6, A6/1 Model 253 (except 253.99) up to model year 2020 with code 228 (Auxiliary heater) Control unit A6, A6/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A2/125 | Communications module/stationary heater antenna splitter | 31L |
| A6 | Stationary heater unit | 4A |
| A6 | Stationary heater unit | 14A |
| A6/1 | Stationary heater radio remote control receiver | 20A |
| A6/1 | Stationary heater radio remote control receiver | 28A |
| A6b1 | Stationary heater temperature sensor | 6A |
| A6b1 | Stationary heater temperature sensor | 15A |
| A6f1 | Stationary heater thermal fuse | 8A |
| A6m2 | Stationary heater combustion air blower | 13D |
| A6m2 | Stationary heater combustion air blower | 12A |
| A6n1 | Stationary heater control unit | 7A |
| A6r2 | Glow plug | 5A |
| A6r3 | Flame monitor | 4A |
| A6r4 | Stationary heater glow plug/flame monitor unit | 15D |
| Code F205 | MODEL SERIES 205 | 19D |
| Code F205 | MODEL SERIES 205 | 12A |
| Code F253 | MODEL SERIES 253 | 17D |
| Code F253 | MODEL SERIES 253 | 2A |
| Code F253 | MODEL SERIES 253 | 10A |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f318 | Fuse 318 | 1K |
| K40/5 | Rear fuse and relay module | 24L |
| K40/5f410 | Fuse 410 | 23L |
| N22/1 | Climate control, control unit | 11L |
| W16/4 | Right major assembly compartment ground point | 3E |
| W6 | Left wheel arch trunk ground point | 27L |
| W6 | Left wheel arch trunk ground point | 29L |
| W76 | Fuel pump ground point | 8G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 18G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 9E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 20G |
| Y16 | Stationary heater switchover valve | 6L |
| Y23 | Stationary heater fuel pump | 8L |
| Z6/30 | Circuit 31 connector sleeve | 27G |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 9G |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 12G |
