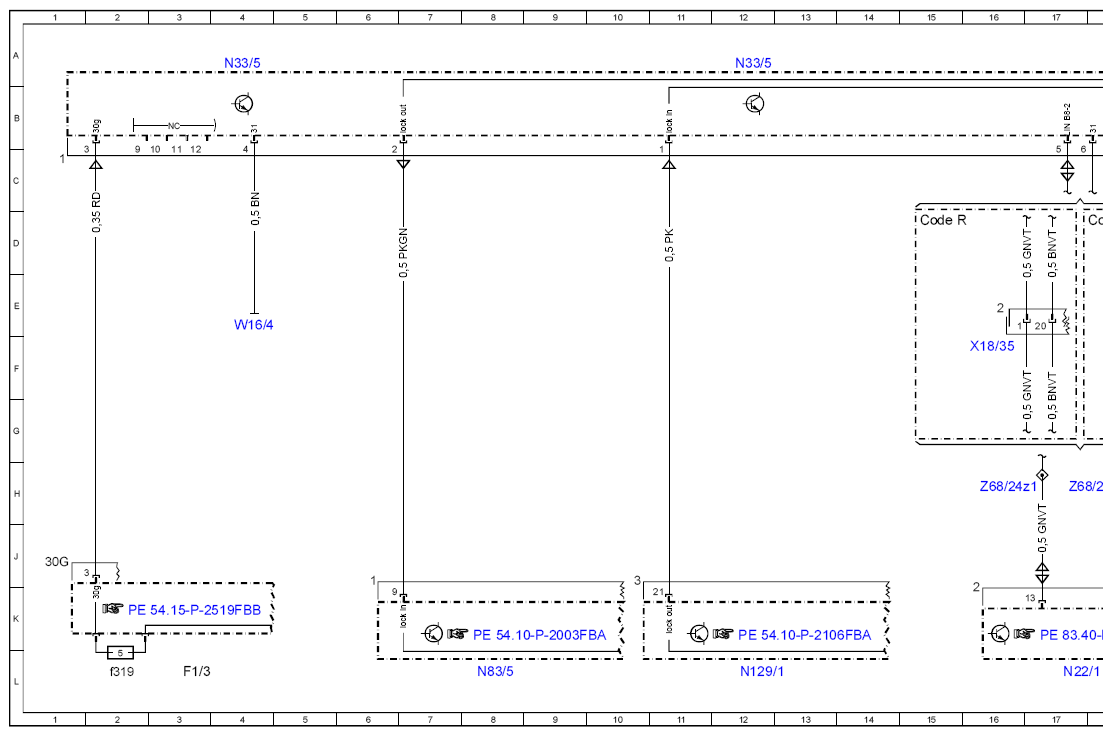

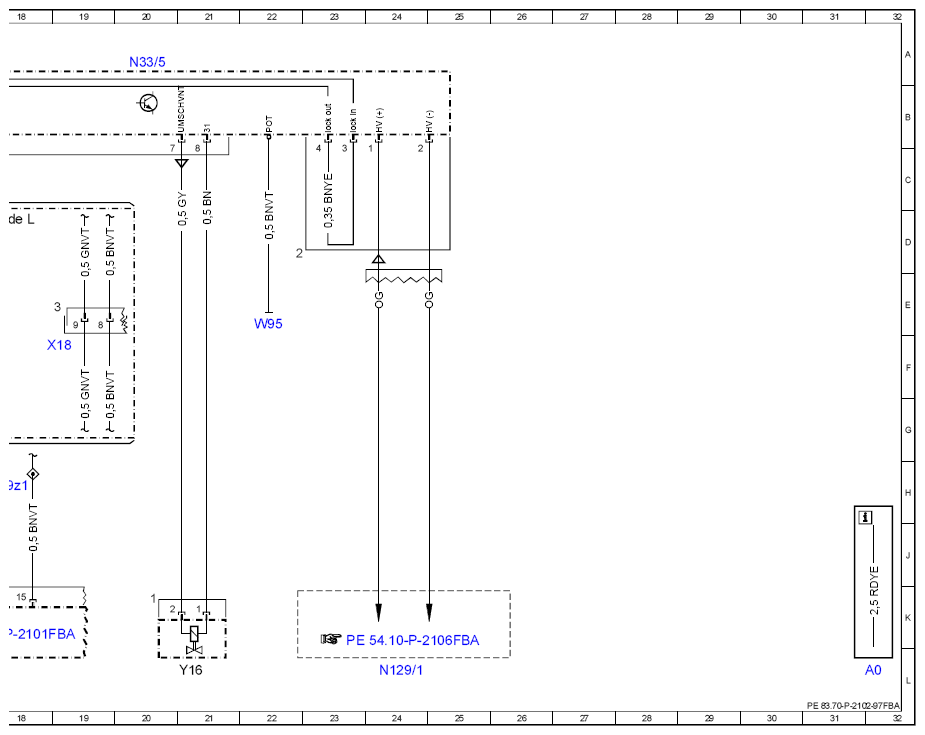

Wiring Diagram Of Heater Booster Control Unit - PE83.70-P-2102-97FBA
Model 205 up to model year 2019 with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| Code L | LEFT-HAND DRIVE | 18D |
| Code R | RIGHT-HAND DRIVE | 15D |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f319 | Fuse 319 | 2L |
| N129/1 | Power electronics control unit | 12L |
| N129/1 | Power electronics control unit | 24L |
| N22/1 | Climate control, control unit | 17L |
| N33/5 | High-voltage PTC heater | 4A |
| N33/5 | High-voltage PTC heater | 12A |
| N33/5 | High-voltage PTC heater | 20A |
| N83/5 | Charger | 8L |
| W16/4 | Right major assembly compartment ground point | 4E |
| W95 | Right front strut ground connection | 22E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 19F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 16F |
| Y16 | Stationary heater switchover valve | 21L |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 16H |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 18H |
