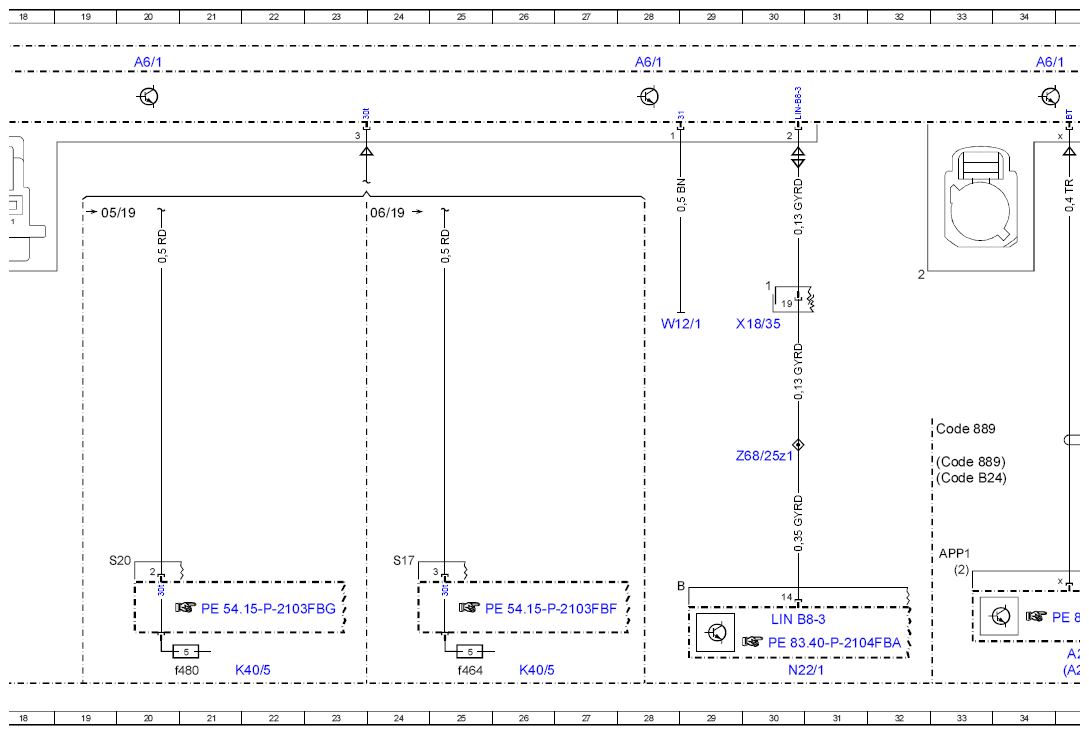

Wiring Diagram For Stationary Heater Control Unit - PE83.70-P-2104-97FBA
Model 205 as of model year 2019 with code 228 (Auxiliary heater)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A2/109 | Telephone antenna splitter | 35L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 35L |

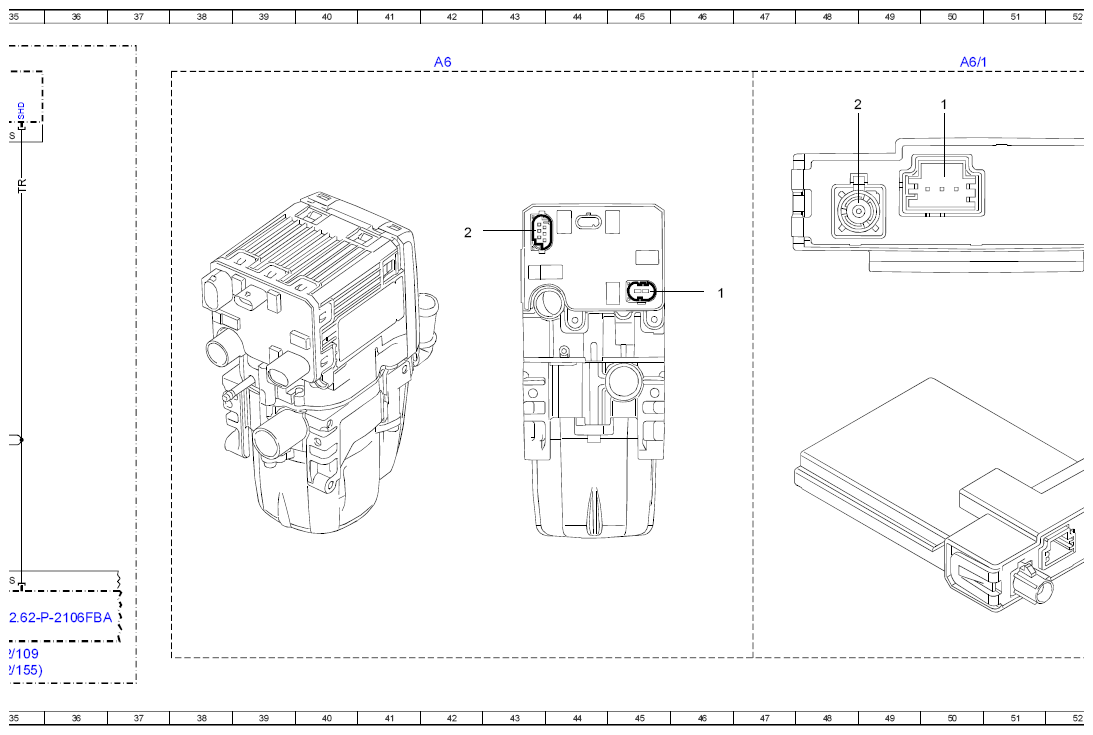

| A6 | Stationary heater unit | 4A |
| A6 | Stationary heater unit | 12A |
| A6 | Stationary heater unit | 42A |
| A6 | Stationary heater unit | 58A |
| A6/1 | Stationary heater radio remote control receiver | 20A |
| A6/1 | Stationary heater radio remote control receiver | 28A |
| A6/1 | Stationary heater radio remote control receiver | 34A |
| A6/1 | Stationary heater radio remote control receiver | 50A |
| A6/1 | Stationary heater radio remote control receiver | 64A |
| Code 889 | KEYLESS-GO | 33G |
| Code 889 | KEYLESS-GO | 33H |
| Code B24 | Radio remote control for stationary heater | 16A |
| Code B24 | Radio remote control for stationary heater | 33H |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3f308 | Fuse 308 | 4L |
| K40/5 | Rear fuse and relay module | 22L |
| K40/5 | Rear fuse and relay module | 26L |
| K40/5f464 | Fuse 464 | 25L |
| K40/5f480 | Fuse 480 | 21L |
| LIN B8-2 | Climate control LIN 2 | 13K |
| LIN B8-3 | AC operation LIN | 30K |
| N22/1 | Climate control, control unit | 13L |
| N22/1 | Climate control, control unit | 30L |
| W12/1 | Right center console ground point | 28E |
| W16/4 | Right major assembly compartment ground point | 5H |
| W76 | Fuel pump ground point | 11H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 30E |
| Y16 | Stationary heater switchover valve | 9L |
| Y23 | Stationary heater fuel pump | 11L |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 30G |
