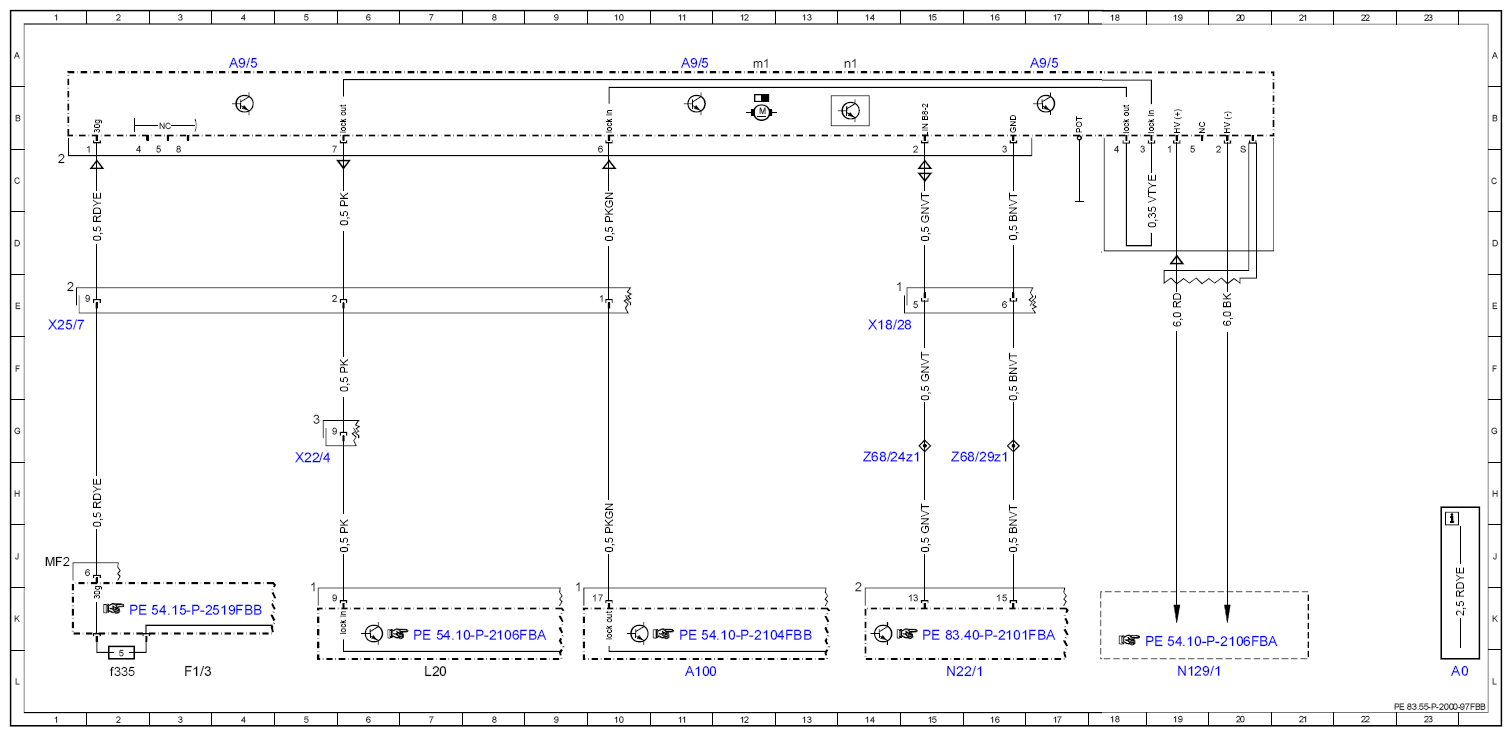

Wiring Diagram For Electric Refrigerant Compressor - PE83.55-P-2000-97FBB
Model 205 up to model year 2019 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) except code ME04 (Mild hybrid drive)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A100 | High-voltage battery module | 11L |
| A9/5 | Electric refrigerant compressor | 4A |
| A9/5 | Electric refrigerant compressor | 11A |
| A9/5 | Electric refrigerant compressor | 17A |
| A9/5m1 | Refrigerant compressor electric motor | 12A |
| A9/5n1 | Refrigerant compressor control unit and power electronics | 14A |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f335 | Fuse 335 | 2L |
| L20 | Electric machine rotor position sensor | 7L |
| N129/1 | Power electronics control unit | 19L |
| N22/1 | Climate control, control unit | 15L |
| X18/28 | Left cockpit/engine compartment electrical connector | 14E |
| X22/4 | Transmission/frame floor assembly connecting point | 5H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 1E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 14G |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 16G |
