Teach In Stationary Heater Radio Remote Control Transmitter - AR83.70-P-0013-01LC
Model 205
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Model 213
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Model 217
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Model 222
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Model 253
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Model 463
as of model year 2019
with code B24 (Remote control for Auxiliary heating)
with code H12 (Auxiliary heater)
Teach-in is only necessary when replacing the stationary heater radio remote control transmitter (A8/3) or the stationary heater radio remote control receiver.

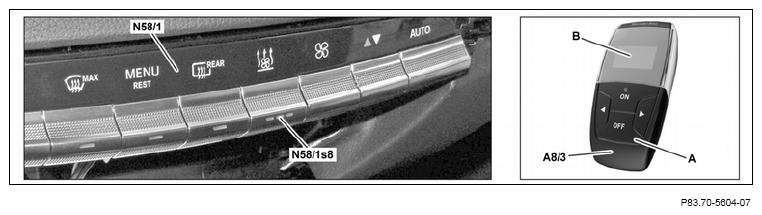

- Press stationary heater button (N58/1s8) at the climate control operating unit (N58/1) for approx. 20 s until the red indicator lamp in the stationary heater button (N58/1s8) flashes.
- Press "OFF" button (A) on stationary heater radio remote control transmitter (A8/3) long enough (at least 1 s) for the message "OFF" to appear in the display (B).
To teach in another stationary heater radio remote control transmitter (A8/3), perform teach-in process again. The stationary heater radio remote control receiver can store up to three stationary heater radio remote control transmitters (A8/3). The fourth stationary heater radio remote control transmitter (A8/3) overwrites the first taught-in stationary heater radio remote control transmitter (A8/3).
Optionally, read out number of taught-in stationary heater radio remote control transmitters (A8/3) via an open teach-in period window in the diagnostic device.
