Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97FBI
Model 205 up to model year 2019 W16/3, W16/5 Model 253 (except 253.99) up to model year 2020 W16/3, W16/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| B16/10 | High-pressure exhaust gas recirculation temperature sensor | 37L |
| Code L | LEFT-HAND DRIVE | 1H |
| Code L | LEFT-HAND DRIVE | 14F |
| Code L | LEFT-HAND DRIVE | 1A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 31E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 39E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 16E |
| Code M626 | DIESEL ENGINE OM626 | 35E |
| Code M626 | DIESEL ENGINE OM626 | 49E |
| Code M651 | DIESEL ENGINE OM651 | 53E |
| Code M651 | DIESEL ENGINE OM651 | 57E |
| F32/3 | Engine compartment prefuse box | 3L |
| K40/8 | Engine fuse and relay module | 7L |
| K40/8 | Engine fuse and relay module | 8A |
| M5/1 | Windshield washer system pump | 12L |
| M6/1 | Wiper motor | 3A |
| N3/10 | ME-SFI [ME] control unit | 19L |
| N3/10 | ME-SFI [ME] control unit | 33L |

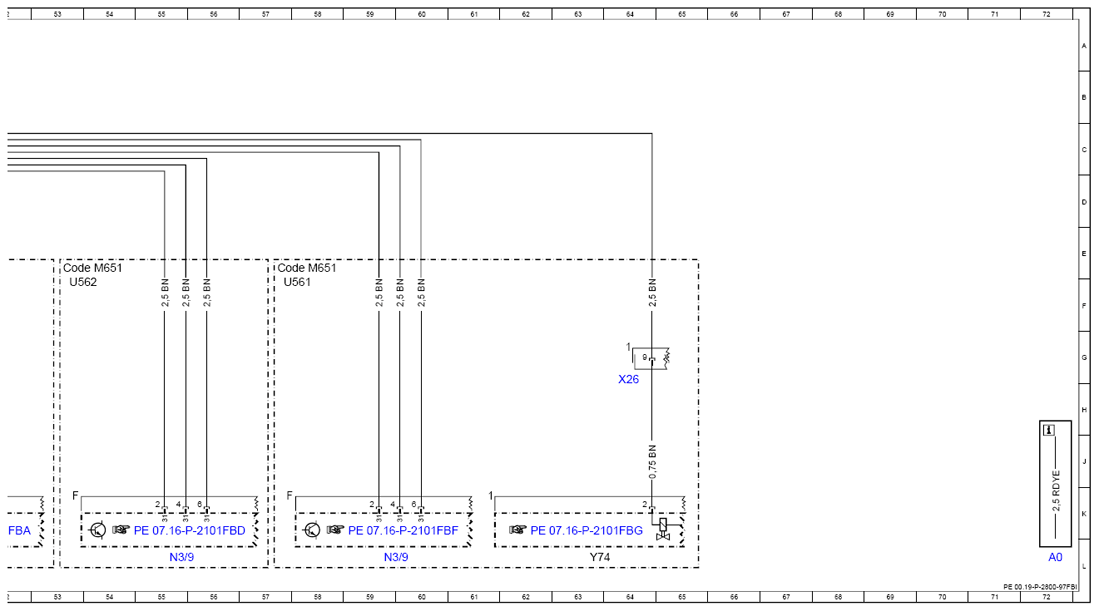

| N3/9 | CDI control unit | 59L |
| N3/9 | CDI control unit | 51L |
| N3/9 | CDI control unit | 55L |
| R4 | Spark plugs | 41L |
| R4 | Spark plugs | 46L |
| R4 | Spark plugs | 45L |
| R4 | Spark plugs | 44L |

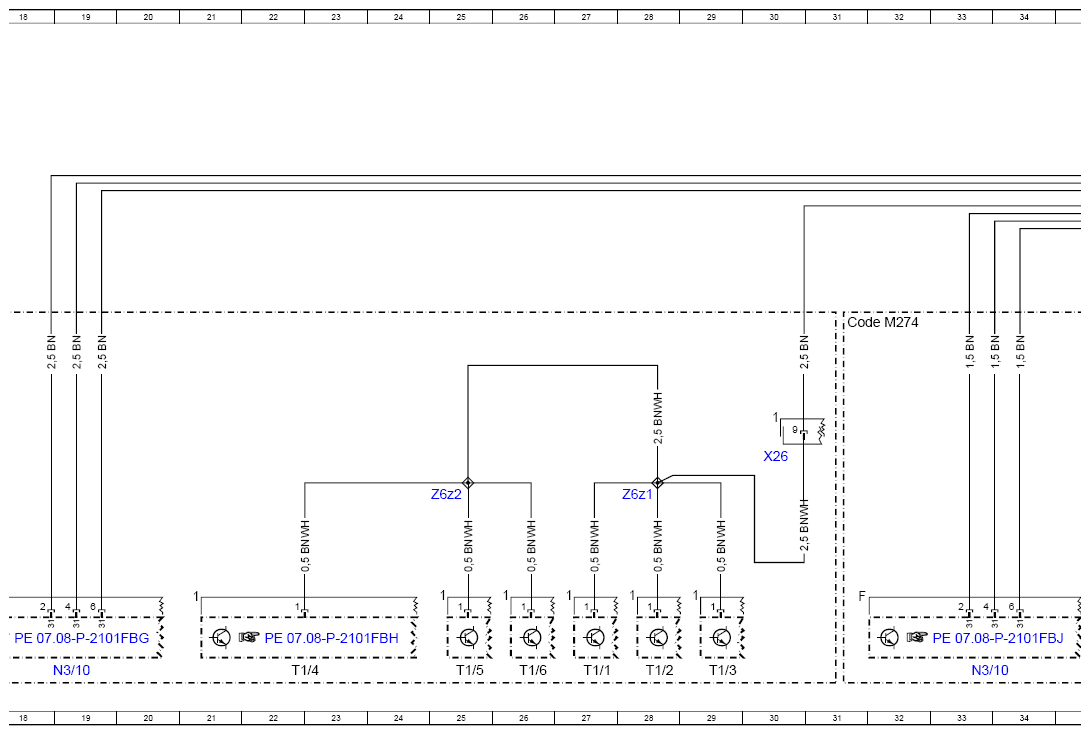

| T1/1 | Cylinder 1 ignition coil | 27L |
| T1/1 | Cylinder 1 ignition coil | 41K |
| T1/2 | Cylinder 2 ignition coil | 28L |
| T1/2 | Cylinder 2 ignition coil | 44K |
| T1/3 | Cylinder 3 ignition coil | 29L |
| T1/3 | Cylinder 3 ignition coil | 45K |
| T1/4 | Cylinder 4 ignition coil | 22L |
| T1/4 | Cylinder 4 ignition coil | 46K |
| T1/5 | Cylinder 5 ignition coil | 25L |
| T1/6 | Cylinder 6 ignition coil | 26L |
| U561 | Valid for Delphi system | 57F |
| U562 | Valid for Bosch system | 53F |

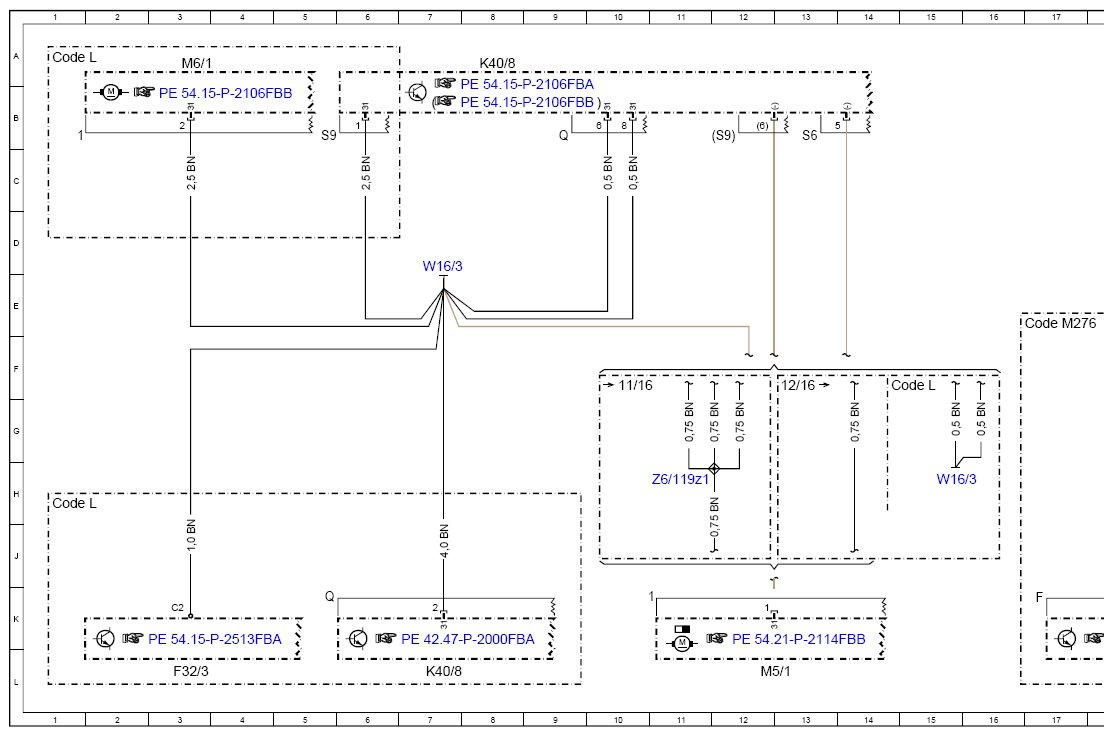

| W16/3 | Left major assembly compartment ground point | 15H |
| W16/3 | Left major assembly compartment ground point | 7D |

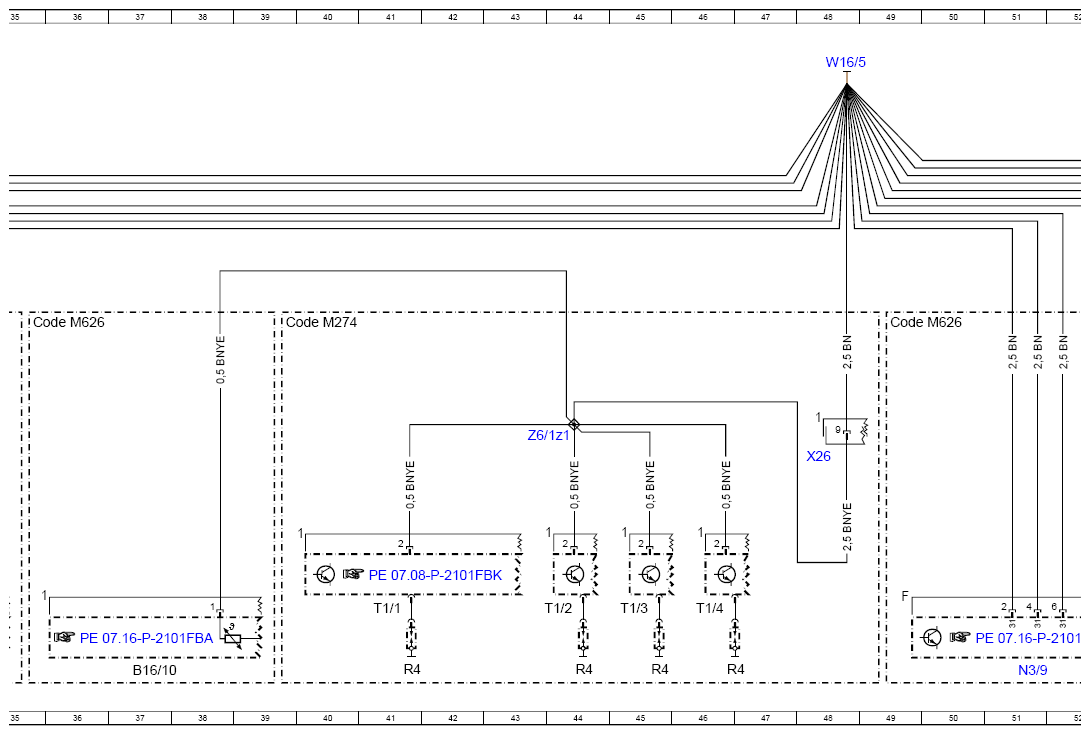

| W16/5 | Left major assembly compartment electronics ground point | 48A |
| X26 | Interior and engine wiring harness electrical connector | 30G |
| X26 | Interior and engine wiring harness electrical connector | 48G |
| X26 | Interior and engine wiring harness electrical connector | 64G |
| Y74 | Pressure regulator valve | 63L |
| Z6/119z1 | Left engine ground connection connector sleeve | 11H |
| Z6/1z1 | Ground line connector sleeve | 44G |
| Z6z1 | Circuit 31 connector sleeve | 28H |
| Z6z2 | Circuit 31 connector sleeve | 25H |
