Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97FBD
Model 205 up to model year 2019 W2, W3/11, W16/7 Model 253 (except 253.99) up to model year 2020 W2, W3/11, W16/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| A100 | High-voltage battery module | 40L |
| A100 | High-voltage battery module | 59L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 31L |
| A49 | Two-way radio | 48L |
| A50/1 | Mirror taximeter | 27L |
| A50/2 | Card reader and printer | 44L |
| Code 2U1 | Radiator shutters | 84J |
| Code 489 | AIR BODY CONTROL | 16A |
| Code 631 | Static LED headlamp, left-hand traffic | 102A |
| Code 632 | Static LED headlamp, right-hand traffic | 102A |
| Code 640 | High Performance LED | 97A |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 97A |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 97B |
| Code 872 | Seat heater in rear passenger compartment | 72A |
| Code 965 | Electrical preinstallation for taxi and rental car | 25H |
| Code F205 | MODEL SERIES 205 | 47A |
| Code F205 | MODEL SERIES 205 | 52A |
| Code F205 | MODEL SERIES 205 | 61G |
| Code F205 | MODEL SERIES 205 | 58A |
| Code F205 | MODEL SERIES 205 | 63A |
| Code F253 | MODEL SERIES 253 | 10C |
| Code FC | COUPE | 63A |
| Code FS | STATION WAGON | 52A |
| Code FW | SEDAN | 47A |
| Code FW | SEDAN | 62H |
| Code FW | SEDAN | 58A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 98J |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1H |
| Code ME04 | Hybrid drive 20 KW VARIANT | 102E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 34A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 57H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 93J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 1J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 57G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 93J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 102F |
| Code R | RIGHT-HAND DRIVE | 12C |
| Code R | RIGHT-HAND DRIVE | 10C |
| Code R | RIGHT-HAND DRIVE | 14C |
| Code R | RIGHT-HAND DRIVE | 1A |
| Code U02 | Belt extender, electric | 20H |
| E2 | Right front lamp unit | 91A |
| E2 | Right front lamp unit | 99A |
| E2 | Right front lamp unit | 104A |

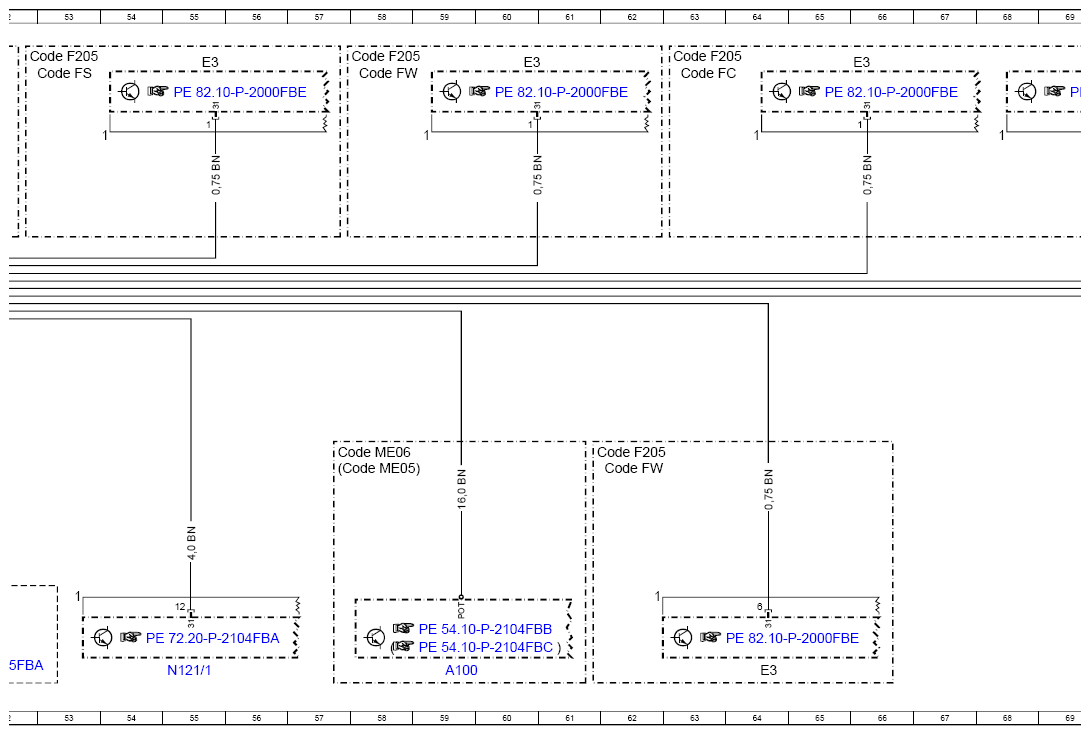

| E3 | Left rear lamp unit | 50A |
| E3 | Left rear lamp unit | 55A |
| E3 | Left rear lamp unit | 64L |
| E3 | Left rear lamp unit | 66A |
| E3 | Left rear lamp unit | 60A |
| E3/1 | Inner left rear lamp unit | 69A |
| F32/3 | Engine compartment prefuse box | 3L |
| H2/1 | Right fanfare horn | 91L |
| K40/8 | Engine fuse and relay module | 7L |
| K40/8 | Engine fuse and relay module | 8A |
| M13/5 | Coolant circulation pump | 82L |
| M43/6 | Low temperature circuit circulation pump 1 | 101L |
| M43/7 | Low temperature circuit circulation pump 2 | 96L |
| M43/7 | Low temperature circuit circulation pump 2 | 99L |
| M6/1 | Wiper motor | 3A |
| M87 | Radiator shutters actuator motor | 87L |
| N121 | Trunk lid control, control unit | 32A |
| N121/1 | Tailgate control, control unit | 55L |

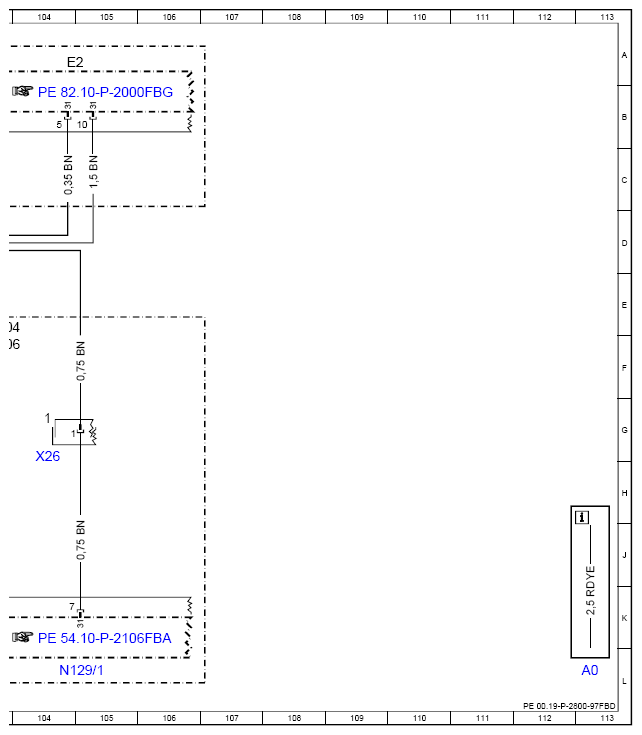

| N129/1 | Power electronics control unit | 104L |

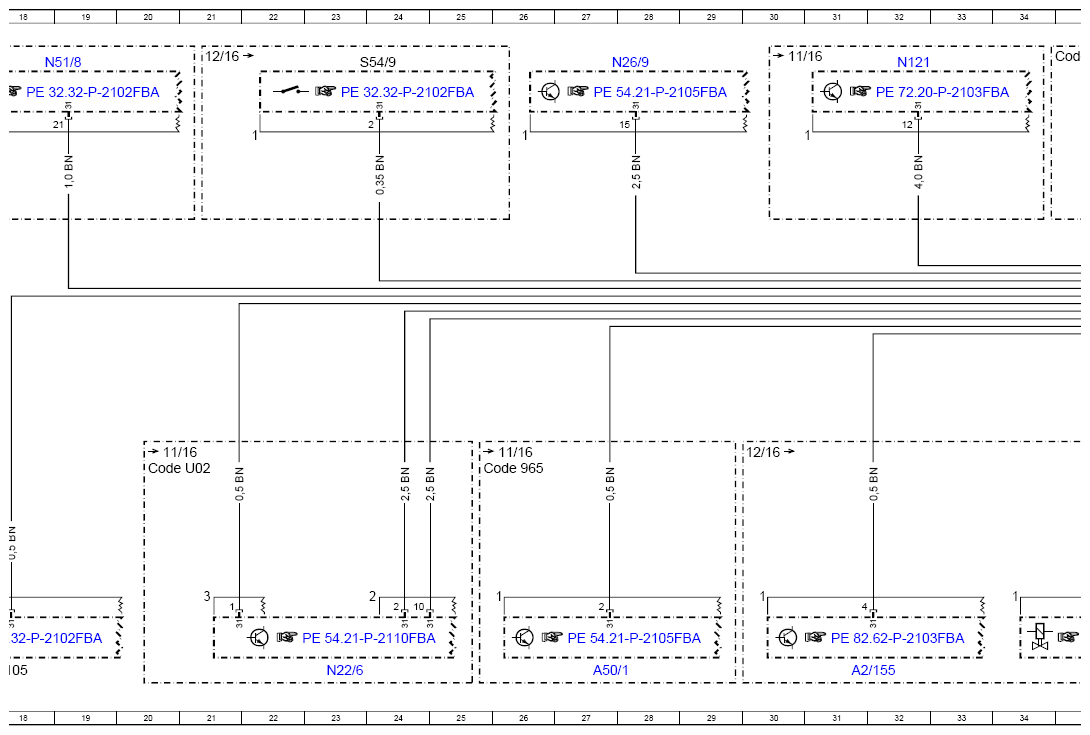

| N22/6 | Rear control unit | 23L |
| N25/6 | Rear seat heaters control unit | 74A |
| N26/9 | Special-purpose vehicle multifunction control unit | 28A |
| N51/8 | AIR BODY CONTROL Plus control unit | 19A |
| N83/5 | Charger | 37A |
| S105 | Rear-end lowering switch | 18L |
| S54/9 | Left luggage compartment rear backrest release button | 24A |

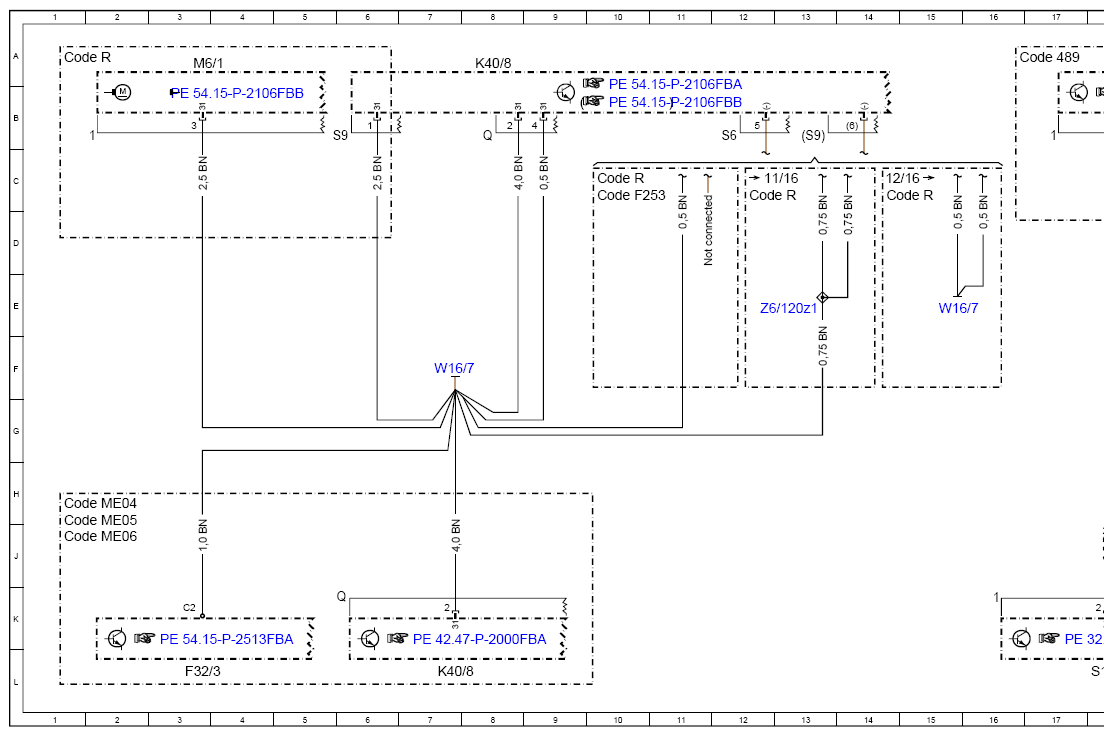

| W16/7 | Right major assembly compartment electronics ground point | 7F |
| W16/7 | Right major assembly compartment electronics ground point | 15E |

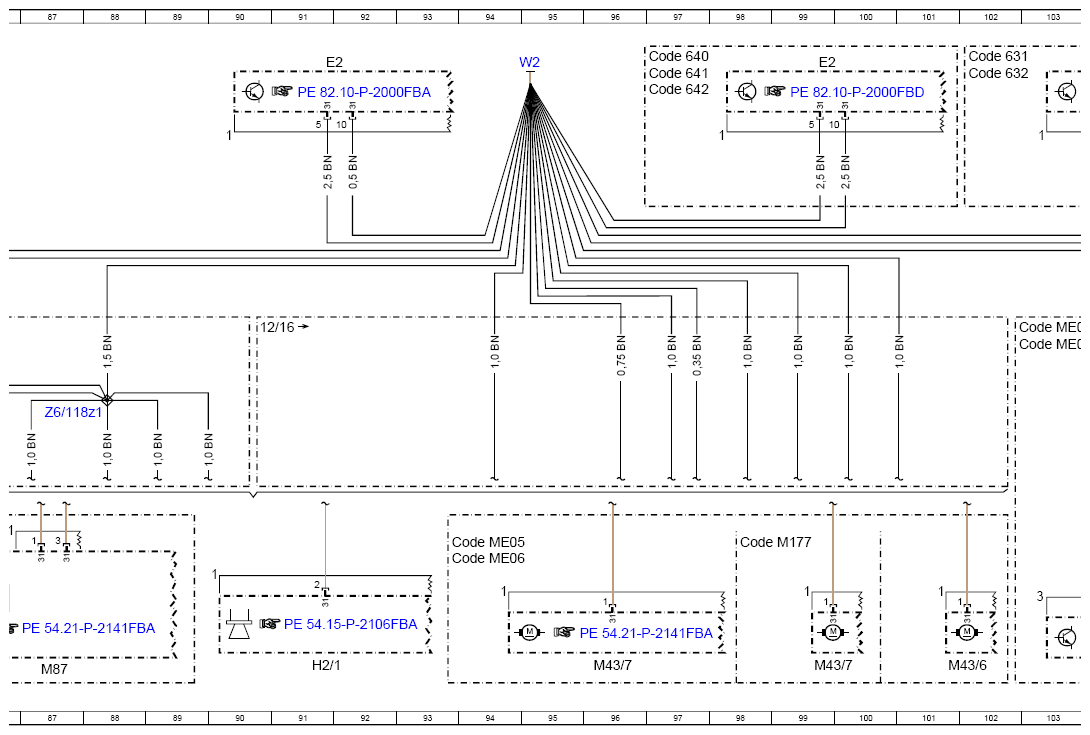

| W2 | Right front ground point (at lamp unit) | 95A |

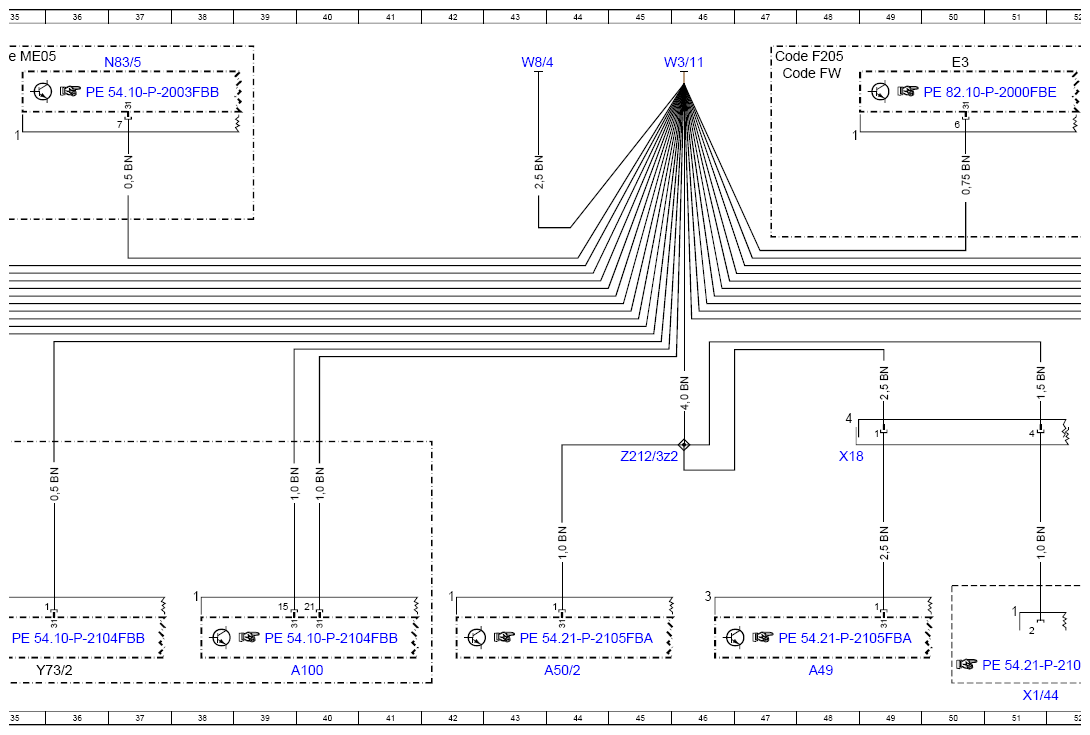

| W3/11 | Left rear wheel well ground point | 46A |
| W8/4 | Left tailgate ground point | 43A |
| X1/44 | Taxi peripheral device electrical connector | 51L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 48H |
| X26 | Interior and engine wiring harness electrical connector | 104H |
| Y73/2 | Low-temperature circuit switchover valve 2 | 35L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 78L |
| Z212/3z2 | Circuit 31 connector sleeve | 45G |

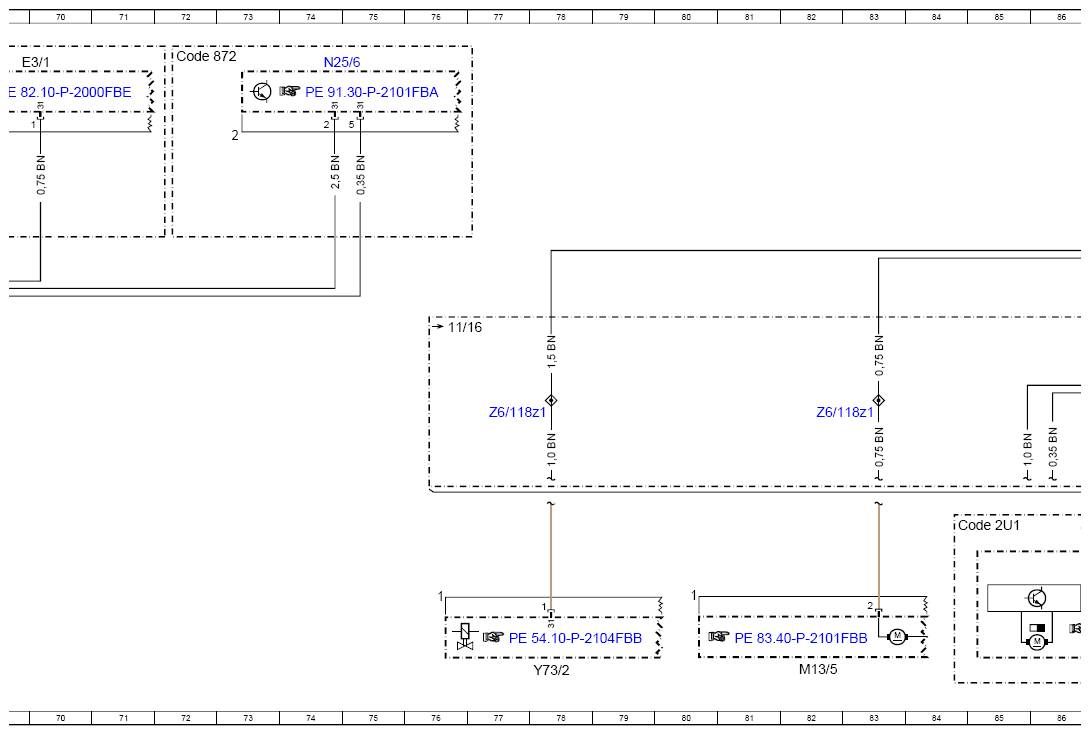

| Z6/118z1 | Right front ground line connector sleeve (in wiring harness) | 77G |
| Z6/118z1 | Right front ground line connector sleeve (in wiring harness) | 83G |
| Z6/118z1 | Right front ground line connector sleeve (in wiring harness) | 87G |
| Z6/120z1 | Right engine ground connection connector sleeve | 13E |
