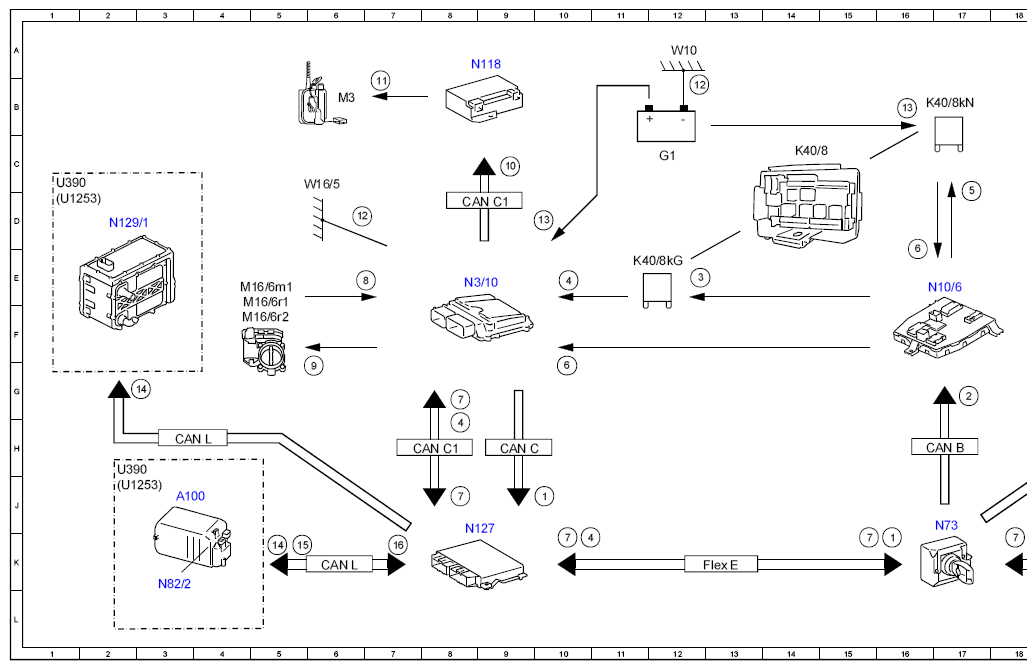

Electrical Function Schematic, Ignition On - PE07.10-P-2700-97FBH
Engine 274.9 in model 205.047/053/054/147/247/253
Engine 274.9 in model 253.354/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Instrument cluster, request | 10J |
| 1 | Instrument cluster, request | 22F |
| 1 | Instrument cluster, request | 16K |
| 10 | Fuel pump, request ON | 9C |
| 11 | Fuel pump, actuation | 7B |
| 12 | Circuit 31, status | 12B |
| 12 | Circuit 31, status | 6D |
| 13 | Circuit 30, status | 10D |
| 13 | Circuit 30, status | 16B |
| 14 | Circuit 15, status ON | 5K |
| 14 | Circuit 15, status ON | 3G |
| 15 | Contactor, status | 5K |
| 16 | Contactor, request | 7K |
| 2 | Circuit 15, request ON | 17G |
| 3 | Circuit 15 relay, actuation | 12E |
| 4 | Circuit 15, status ON | 8H |
| 4 | Circuit 15, status ON | 10E |
| 4 | Circuit 15, status ON | 10K |
| 5 | Combustion engine circuit 87 relay, actuation | 17D |
| 6 | Circuit 87, status | 10G |
| 6 | Circuit 87, status | 16E |
| 7 | Engine management diagnosis, communication | 18K |
| 7 | Engine management diagnosis, communication | 20K |
| 7 | Engine management diagnosis, communication | 8G |
| 7 | Engine management diagnosis, communication | 8J |
| 7 | Engine management diagnosis, communication | 10K |
| 7 | Engine management diagnosis, communication | 15K |
| 8 | Throttle valve position, signal | 7E |
| 9 | Throttle valve actuator motor, actuation | 21K |
| A1 | Instrument cluster | 22C |
| A100 | High-voltage battery module | 3J |
| CAN B | Interior CAN | 17H |
| CAN C | Engine CAN | 9H |
| CAN C1 | Drive train CAN | 8D |
| CAN C1 | Drive train CAN | 8H |
| CAN D | Diagnostic CAN | 19K |
| CAN HMI | User interface CAN | 21H |
| CAN L | Hybrid CAN | 6K |
| CAN L | Hybrid CAN | 3H |
| Flex E | Chassis FlexRay | 13K |
| G1 | On-board electrical system battery | 12C |
| K40/8 | Engine fuse and relay module | 14C |
| K40/8kG | Engine compartment terminal 15 relay | 11E |
| K40/8kN | Circuit 87M relay | 17B |
| M16/6m1 | Throttle valve actuator motor | 5E |
| M16/6r1 | Actual value potentiometer 1 | 5F |
| M16/6r2 | Actual value potentiometer 2 | 5F |
| M3 | Fuel pump (FP) | 6B |
| N10/6 | Front SAM control unit | 17E |
| N118 | Fuel pump control unit | 9A |
| N127 | Drivetrain control unit | 8J |
| N129/1 | Power electronics control unit | 2D |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N73 | Electronic ignition switch control unit | 17J |
| N82/2 | Battery management system control unit | 3K |
| U1253 | Valid for model 253 | 1D |
| U1253 | Valid for model 253 | 2J |
| U390 | Valid for model 205 | 1C |
| U390 | Valid for model 205 | 2H |
| W10 | Right on-board electrical system battery ground point | 12A |
| W16/5 | Left major assembly compartment electronics ground point | 5C |
| X11/4 | Diagnostic connector | 21K |
