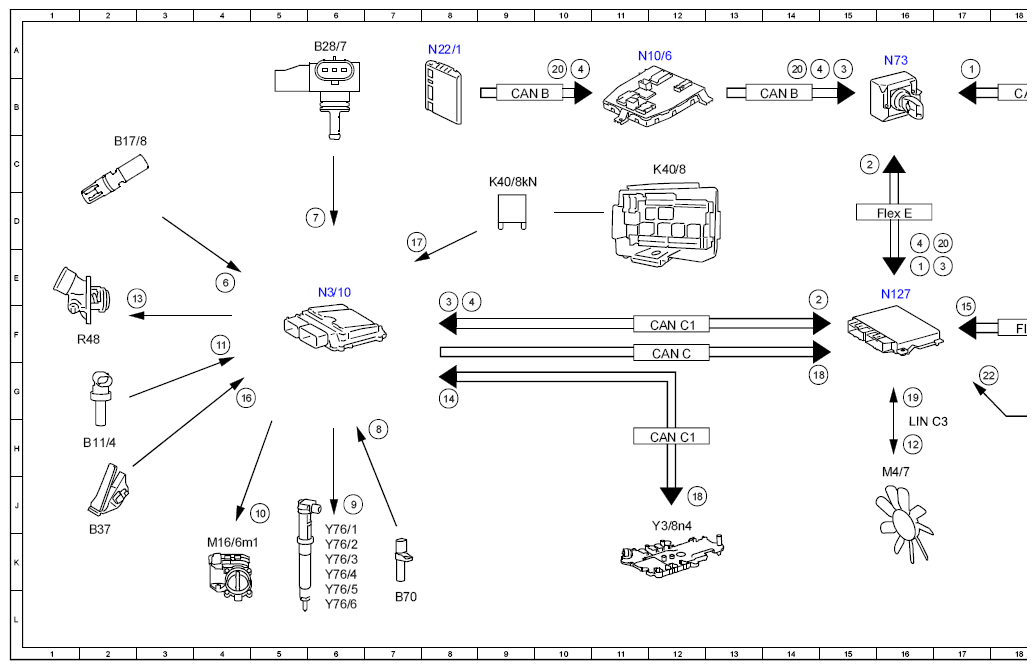

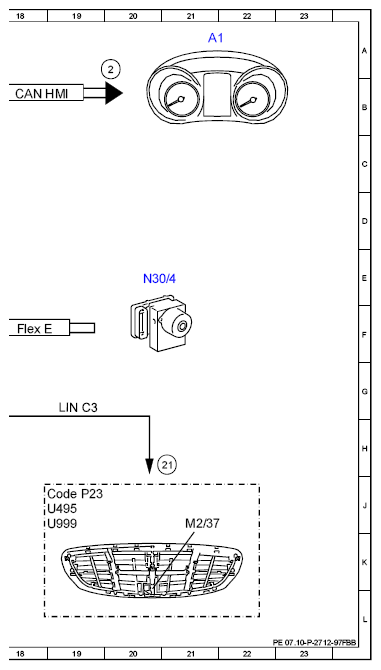

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97FBB
Engine 276.8 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Vehicle speed, signal | 16E |
| 1 | Vehicle speed, signal | 17A |
| 10 | Throttle valve actuator motor, actuation | 5J |
| 11 | Coolant temperature sensor, signal | 4F |
| 12 | Fan motor, specified RPM request | 16H |
| 13 | Coolant thermostat heating element, actuation | 2E |
| 14 | Transmission control, signal | 8G |
| 15 | Wheel speed, signal | 17F |
| 16 | Accelerator pedal sensor, signal | 4G |
| 17 | Circuit 87, status | 7D |
| 18 | Engine running, signal | 14G |
| 18 | Engine running, signal | 12J |
| 19 | Fan motor, status | 16G |
| 2 | Instrument cluster, message | 20A |
| 2 | Instrument cluster, message | 14E |
| 2 | Instrument cluster, message | 15C |
| 20 | Fan motor, request | 10A |
| 20 | Fan motor, request | 14A |
| 20 | Fan motor, request | 17D |
| 21 | Radiator trim flap actuator motor, actuation | 21H |
| 22 | Radiator trim flap actuator motor, status | 18G |
| 3 | Air conditioning, status | 8E |
| 3 | Air conditioning, status | 15A |
| 3 | Air conditioning, status | 17E |
| 4 | Outside temperature, signal | 8E |
| 4 | Outside temperature, signal | 14A |
| 4 | Outside temperature, signal | 16D |
| 4 | Outside temperature, signal | 10A |
| 6 | Charge air temperature sensor, signal | 4E |
| 7 | Engine load, signal | 6D |
| 8 | Engine speed, signal | 7H |
| 9 | Fuel injectors, actuation | 6J |
| A1 | Instrument cluster | 21A |
| B11/4 | Coolant temperature sensor | 2H |
| B17/8 | Charge air temperature sensor | 2C |
| B28/7 | Pressure sensor downstream of throttle valve | 6A |
| B37 | Accelerator pedal sensor | 2J |
| B70 | Crankshaft Hall sensor | 7L |
| CAN B | Interior CAN | 14B |
| CAN B | Interior CAN | 9B |
| CAN C | Engine CAN | 12F |
| CAN C1 | Drive train CAN | 12F |
| CAN C1 | Drive train CAN | 12H |
| CAN HMI | User interface CAN | 18B |
| Code P23 | EXCLUSIVE Exterior | 18J |
| Flex E | Chassis FlexRay | 16D |
| Flex E | Chassis FlexRay | 18F |
| K40/8 | Engine fuse and relay module | 12C |
| K40/8kN | Circuit 87M relay | 9C |
| LIN C3 | Drivetrain LIN | 16H |
| LIN C3 | Drivetrain LIN | 19G |
| M16/6m1 | Throttle valve actuator motor | 4K |
| M2/37 | Radiator trim flap actuator motor | 21J |
| M4/7 | Fan motor | 16H |
| N10/6 | Front SAM control unit | 11A |
| N127 | Drivetrain control unit | 16E |
| N22/1 | Climate Control control unit | 8A |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N30/4 | Electronic Stability Program control unit | 20E |
| N73 | Electronic ignition switch control unit | 16A |
| R48 | Coolant thermostat heating element | 1F |
| U495 | Not valid for driving assistance package | 18J |
| U999 | Not valid with DISTRONIC PLUS | 18J |
| Y3/8n4 | Fully integrated Transmission Control control unit | 12J |
| Y76/1 | Cylinder 1 fuel injector | 6K |
| Y76/2 | Cylinder 2 fuel injector | 6K |
| Y76/3 | Cylinder 3 fuel injector | 6K |
| Y76/4 | Cylinder 4 fuel injector | 6K |
| Y76/5 | Cylinder 5 fuel injector | 6L |
| Y76/6 | Cylinder 6 fuel injector | 6L |
