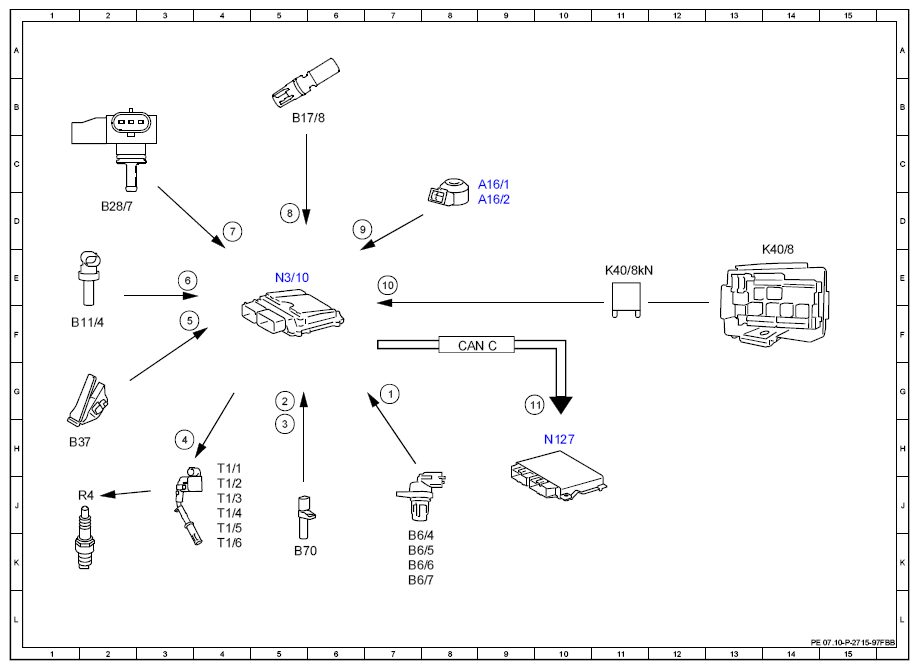

Electrical Function Schematic For Knock Control - PE07.10-P-2715-97FBB
Engine 276.8 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Camshaft Hall sensor, signal | 7G |
| 10 | Circuit 87, status | 7E |
| 11 | Engine running, signal | 9G |
| 2 | Engine speed, signal | 5G |
| 3 | Crankshaft Hall sensor, signal | 5H |
| 4 | Ignition coils, actuation | 3H |
| 5 | Accelerator pedal sensor, signal | 3F |
| 6 | Coolant temperature sensor, signal | 3E |
| 7 | Engine load, signal | 4D |
| 8 | Charge air temperature sensor, signal | 5D |
| 9 | Knock sensor, signal | 6D |
| A16/1 | Knock sensor 1 | 8C |
| A16/2 | Knock sensor 2 | 8D |
| B11/4 | Coolant temperature sensor | 2F |
| B17/8 | Charge air temperature sensor | 5B |
| B28/7 | Pressure sensor downstream of throttle valve | 2D |
| B37 | Accelerator pedal sensor | 1H |
| B6/4 | Left intake camshaft Hall sensor | 7K |
| B6/5 | Right intake camshaft Hall sensor | 7K |
| B6/6 | Left exhaust camshaft Hall sensor | 7K |
| B6/7 | Right exhaust camshaft Hall sensor | 7K |
| B70 | Crankshaft Hall sensor | 5K |
| CAN C | Engine CAN | 8F |
| K40/8 | Engine fuse and relay module | 14E |
| K40/8kN | Circuit 87M relay | 11E |
| N127 | Drivetrain control unit | 10H |
| N3/10 | ME-SFI [ME] control unit | 5E |
| R4 | Spark plugs | 1J |
| T1/1 | Cylinder 1 ignition coil | 4H |
| T1/2 | Cylinder 2 ignition coil | 4J |
| T1/3 | Cylinder 3 ignition coil | 4J |
| T1/4 | Cylinder 4 ignition coil | 4J |
| T1/5 | Cylinder 5 ignition coil | 4J |
| T1/6 | Cylinder 6 ignition coil | 4K |
