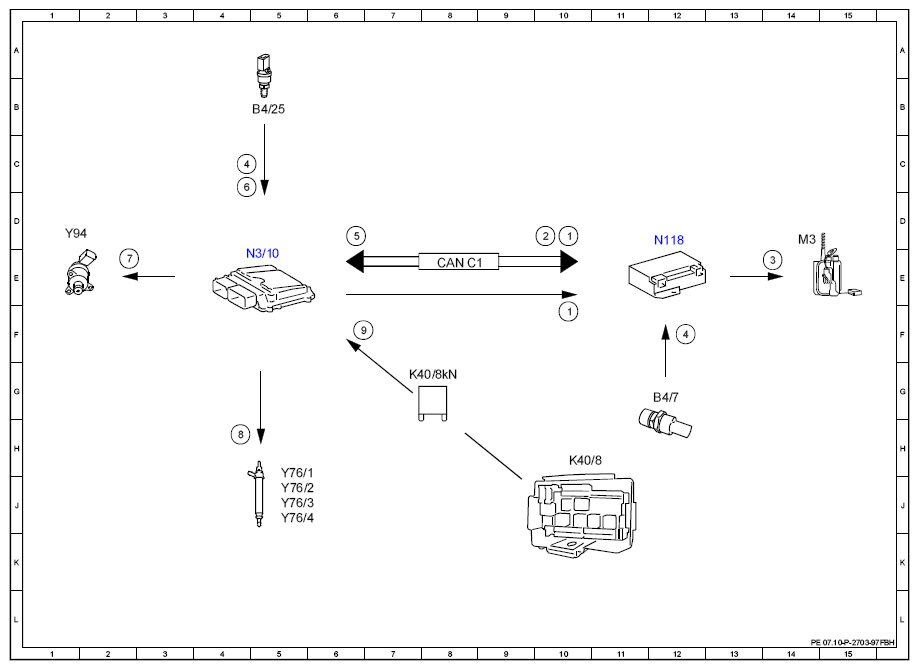

Electrical Function Schematic For Fuel Supply - PE07.10-P-2703-97FBH
Engine 274.9 in model 205.047/053/054/147/247/253
Engine 274.9 in model 253.354/954
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Fuel pump, request ON | 10D |
| 1 | Fuel pump, request ON | 10F |
| 2 | Fuel pump, specified pressure request | 10D |
| 3 | Fuel pump, actuation | 14E |
| 4 | Fuel pressure, signal | 12F |
| 4 | Fuel pressure, signal | 4C |
| 5 | Fuel pressure, status | 6D |
| 6 | Fuel temperature, signal | 4C |
| 7 | Quantity control valve, actuation | 2E |
| 8 | Fuel injectors, actuation | 4H |
| 9 | Circuit 87, status | 6F |
| B4/25 | Fuel pressure and temperature sensor | 5B |
| B4/7 | Fuel pressure sensor | 12G |
| CAN C1 | Drive train CAN | 8E |
| K40/8 | Engine fuse and relay module | 10H |
| K40/8kN | Circuit 87M relay | 8G |
| M3 | Fuel pump (FP) | 14D |
| N118 | Fuel pump control unit | 12D |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y76/1 | Cylinder 1 fuel injector | 5J |
| Y76/2 | Cylinder 2 fuel injector | 5J |
| Y76/3 | Cylinder 3 fuel injector | 5J |
| Y76/4 | Cylinder 4 fuel injector | 5J |
| Y94 | Quantity control valve | 1D |
