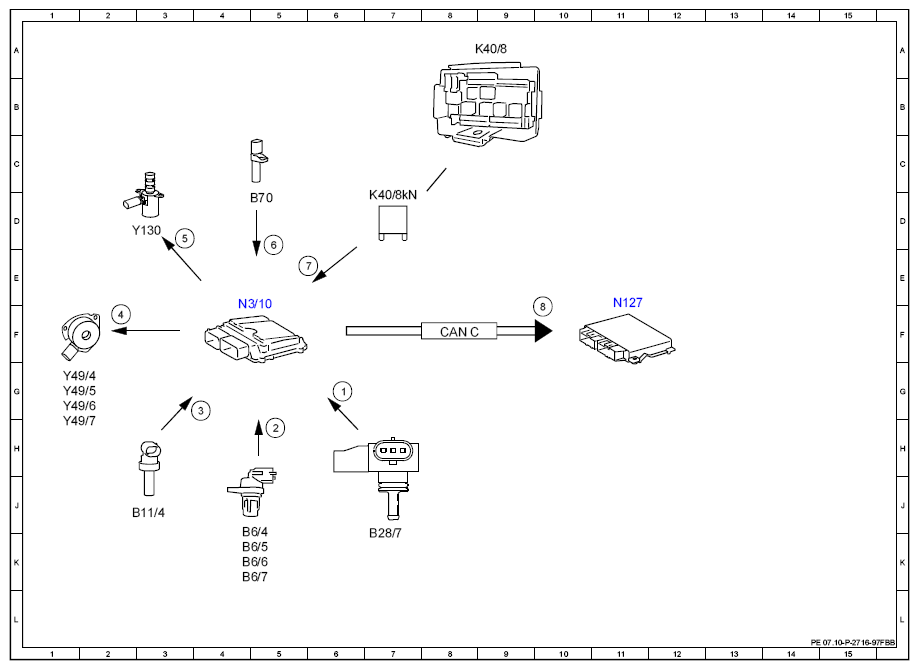

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97FBB
Engine 276.8 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6G |
| 2 | Camshaft Hall sensor, signal | 5H |
| 3 | Coolant temperature sensor, signal | 4G |
| 4 | Camshaft solenoids, actuation | 2F |
| 5 | Engine oil pump valve, actuation | 3D |
| 6 | Engine speed, signal | 5D |
| 7 | Circuit 87, status | 5E |
| 8 | Engine running, signal | 10F |
| B11/4 | Coolant temperature sensor | 3J |
| B28/7 | Pressure sensor downstream of throttle valve | 7K |
| B6/4 | Left intake camshaft Hall sensor | 4K |
| B6/5 | Right intake camshaft Hall sensor | 4K |
| B6/6 | Left exhaust camshaft Hall sensor | 4K |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 4D |
| CAN C | Engine CAN | 8F |
| K40/8 | Engine fuse and relay module | 9A |
| K40/8kN | Circuit 87M relay | 7D |
| N127 | Drivetrain control unit | 11F |
| N3/10 | ME-SFI [ME] control unit | 4F |
| Y130 | Engine oil pump valve | 3D |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1H |
