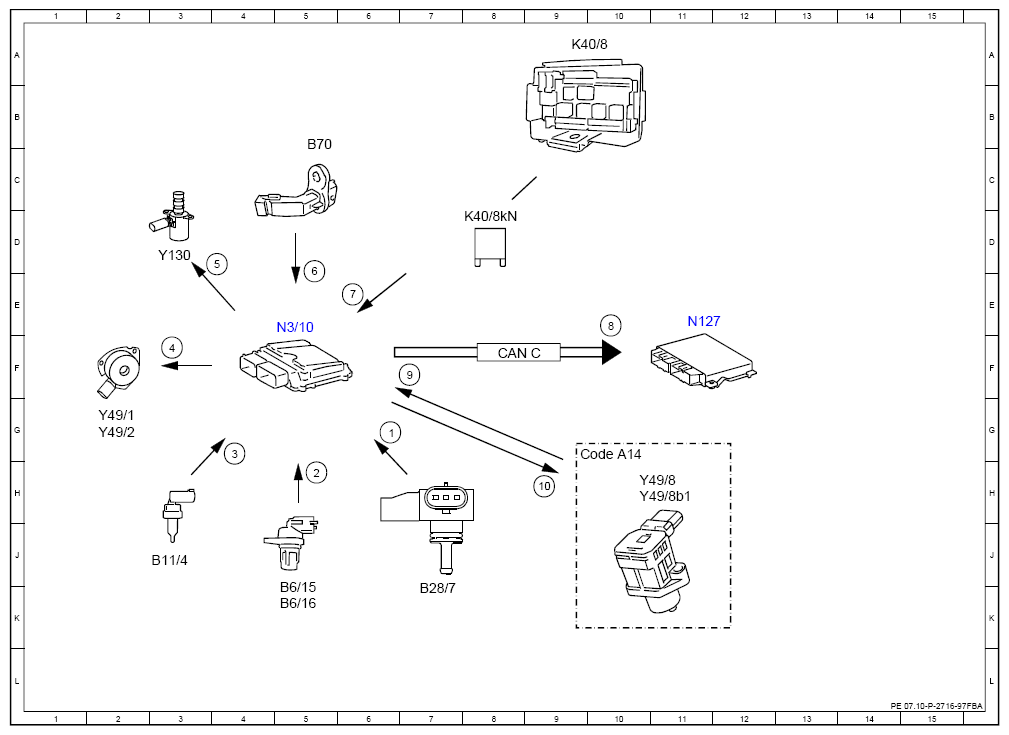

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97FBA
Engine 274.9 in model 205 (except 205.047/053/054/147/247/253)
Engine 274.9 in model 253 (except 253.354/954)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6G |
| 10 | Intake camshaft valve lift switching actuator, actuation | 9H |
| 2 | Camshaft Hall sensor, signal | 5H |
| 3 | Coolant temperature sensor, signal | 4G |
| 4 | Camshaft solenoids, actuation | 3F |
| 5 | Engine oil pump valve, actuation | 4D |
| 6 | Engine speed, signal | 5E |
| 7 | Circuit 87, status | 6E |
| 8 | Engine running, signal | 10E |
| 9 | Intake camshaft valve lift switching Hall sensor, signal | 7F |
| B11/4 | Coolant temperature sensor | 3J |
| B28/7 | Pressure sensor downstream of throttle valve | 7K |
| B6/15 | Intake camshaft Hall sensor | 5K |
| B6/16 | Exhaust camshaft Hall sensor | 5K |
| B70 | Crankshaft Hall sensor | 5C |
| CAN C | Engine CAN | 8F |
| Code A14 | Camtronic | 9G |
| K40/8 | Engine fuse and relay module | 9A |
| K40/8kN | Circuit 87M relay | 8D |
| N127 | Drivetrain control unit | 11E |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y130 | Engine oil pump valve | 3D |
| Y49/1 | Intake camshaft solenoid | 2G |
| Y49/2 | Exhaust camshaft solenoid | 2G |
| Y49/8 | Intake camshaft valve lift switching actuator | 10H |
| Y49/8b1 | Intake camshaft valve lift switching Hall sensor | 11H |
