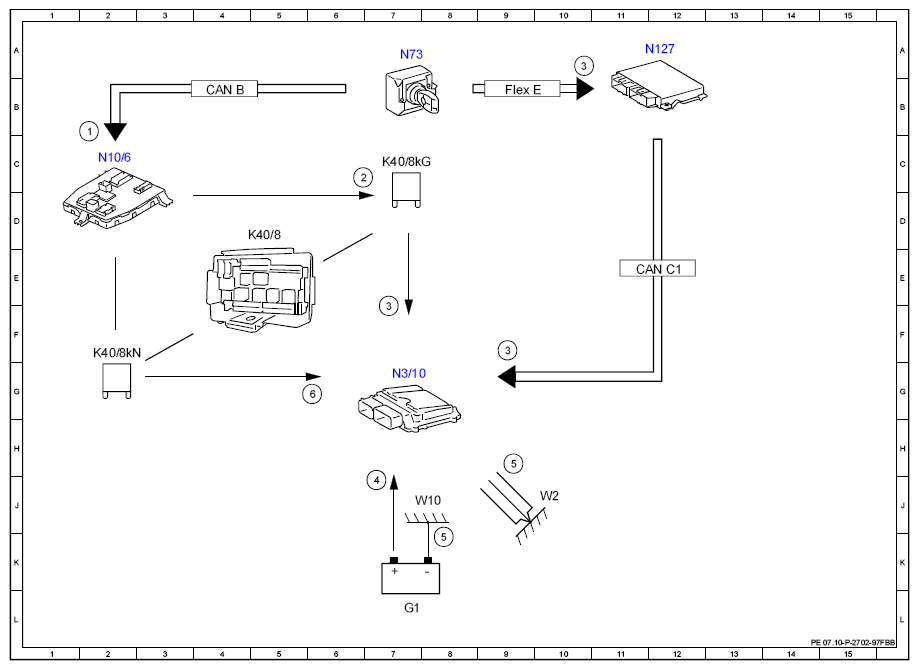

Electrical Function Diagram For Ignition Off - PE07.10-P-2702-97FBB
Engine 276.8 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, request OFF | 2B |
| 2 | Circuit 15 relay, actuation OFF | 6C |
| 3 | Circuit 15, status OFF | 7F |
| 3 | Circuit 15, status OFF | 10A |
| 3 | Circuit 15, status OFF | 9F |
| 4 | Circuit 30, status | 7J |
| 5 | Circuit 31, status | 8K |
| 5 | Circuit 31, status | 9H |
| 6 | Circuit 87, status | 6G |
| CAN B | Interior CAN | 4B |
| CAN C1 | Drive train CAN | 12E |
| Flex E | Chassis FlexRay | 9B |
| G1 | On-board electrical system battery | 7L |
| K40/8 | Engine fuse and relay module | 5D |
| K40/8kG | Engine compartment terminal 15 relay | 7C |
| K40/8kN | Circuit 87M relay | 2F |
| N10/6 | Front SAM control unit | 2C |
| N127 | Drivetrain control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 7G |
| N73 | Electronic ignition switch control unit | 7A |
| W10 | Right on-board electrical system battery ground point | 7J |
| W2 | Right front ground point (at lamp unit) | 10J |
