Tightening Procedure For High-Pressure Pump Shielding - AR07.02-P-0815-01MR

ENGINE 274

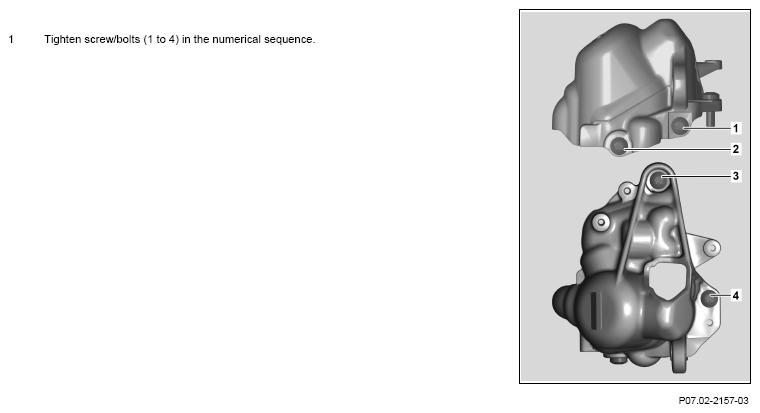

Fig 1: High-Pressure Fuel Pump Shielding Bolts Tightening Sequence - Engine 274 In Model 205
G12816738Courtesy of MERCEDES-BENZ USA
HIGH PRESSURE PUMP

Number Designation ENGINE 274
BA07.02-P-1004-01D Bolt, shielding for high-pressure pump Nm 20
