Mount High-Pressure Lines - AR07.03-P-1010-02MR
ENGINE 274
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | ENGINE 274 | ||
|---|---|---|---|---|
| BA07.03-P-1001-01F | Union nut, fuel line to fuel distributor | Stage 1 | Nm | 15 |
| Stage 2 | ∠° | 75 | ||
| Stage 3 | ∠° | 25 | ||
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | ENGINE 274 | ||
|---|---|---|---|---|
| BA07.03-P-1002-01F | Union nut, fuel line to high-pressure pump | Stage 1 | Nm | 15 |
| Stage 2 | ∠° | 75 | ||
| Stage 3 | ∠° | 25 | ||

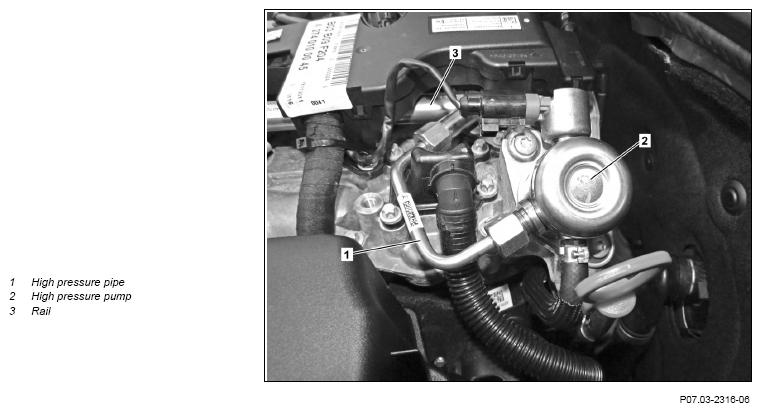

- Mount high pressure line (1) on high pressure pump (2) and rail (3).
Lay on the union nuts for the high-pressure line (1) completely by hand.
- Tighten union nuts with torque.
Comply with the tightening torques exactly.
Leaks can occur otherwise.
