Mount High-Pressure Lines - AR07.03-P-1010-02MMA
Engine 276
MODIFICATION NOTES
| 24.09.2014 | Union nut, fuel line to diagnostic socket | BA07.03-P-1008-01D | |
| 24.09.2014 | Union nut, fuel line to high-pressure pump | BA07.03-P-1002-01D | |
| 24.09.2014 | Union nut, fuel line to fuel distributor | BA07.03-P-1001-01D |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA07.03-P-1001-01D | Union nut, fuel line to fuel distributor | Stage 1 | Nm | 15 |
| Stage 2 | ∠° | 90 | ||
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA07.03-P-1002-01D | Union nut, fuel line to high-pressure pump | Stage 1 | Nm | 15 |
| Stage 2 | ∠° | 90 | ||
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.03-P-1003-01D | Screw/bolt, fuel line service connection to cylinder head cover | Nm | 9 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.03-P-1005-01D | Screw/bolt, fuel line clamps | Nm | 9 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA07.03-P-1008-01D | Union nut, fuel line to service connection | Stage 1 | Nm | 15 |
| Stage 2 | ∠° | 90 | ||

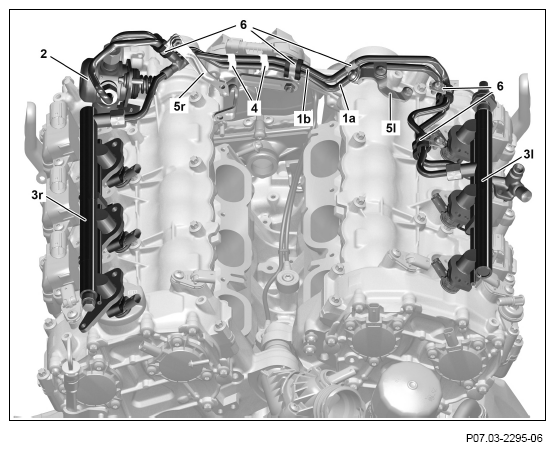

Shown on engine 276.8

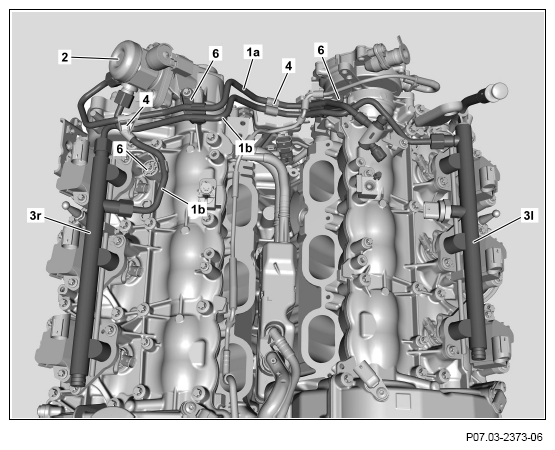

Shown on engine 276.9
The union nuts for the low-pressure line (1a) and high-pressure line (1b) may only be tightened with a torque after installation of the low-pressure line (1a) and high-pressure line (1b).
Leaks can occur otherwise.
Do not kink or bend low-pressure line (1a) and high-pressure line (1b).
Leaks can occur otherwise.
- Loosely mount low pressure line (1a) on high-pressure pump (2) and on the left cylinder head cover.
- Loosely mount high-pressure line (1b) on left rail (1l) and right rail (1r) and on high-pressure pump (2).
- Mount clamps (6) for low-pressure line (1a) and the high-pressure line (1b) on the cylinder head covers
.
Clamps (6) must be aligned before screwing on.
Pay attention to correct routing of the low-pressure line (1a) and the high-pressure line (1b).
- Tighten union nuts with torque
Comply with the tightening torques exactly.
Leaks can occur otherwise.
