Remove/Install Right Exhaust Camshaft Hall Sensor - AR15.10-P-2004MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right air filter housing | AR09.10-P-1150MMV | |

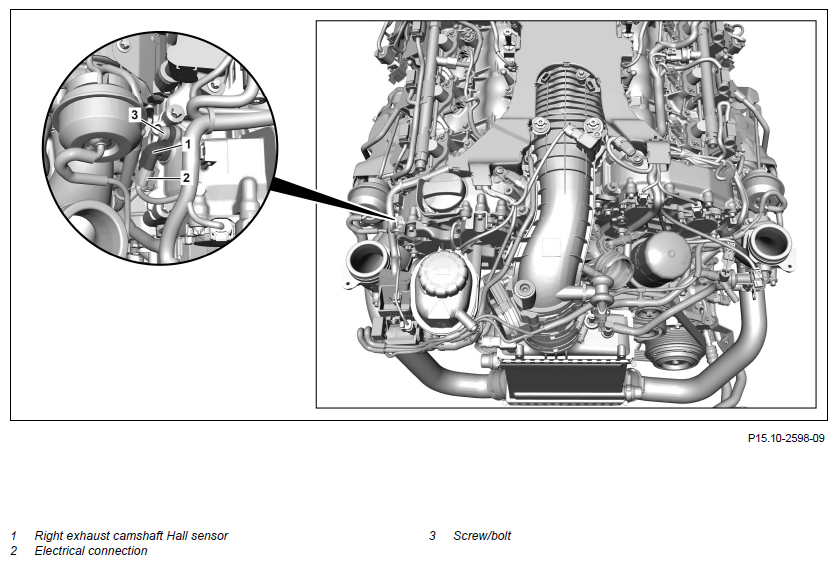

| 3 | Release and disconnect electrical connection (2) | ||
| 4 | Remove screw/bolt (3) | ||
| 5 | Take out right exhaust camshaft Hall sensor (1) | ||
| Install | |||
| 6 | Replace sealing ring on right exhaust camshaft Hall sensor (1) | ||
| 7 | Position right exhaust camshaft Hall sensor (1) on cylinder head cover | ||
| 8 | Tighten screw/bolt (3) | *BA15.10-P-1006-03E | |
| 9 | Put together electrical connection (2) until they are locked | ||
| 10 | Install right air filter housing | AR09.10-P-1150MMV | |
| 11 |
Read out and erase fault memory | AD00.00-P-2000-04B | |
| 12 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run, checking the engine for proper operation and leaktightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| 13 | Install upper engine cover |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 9 |
