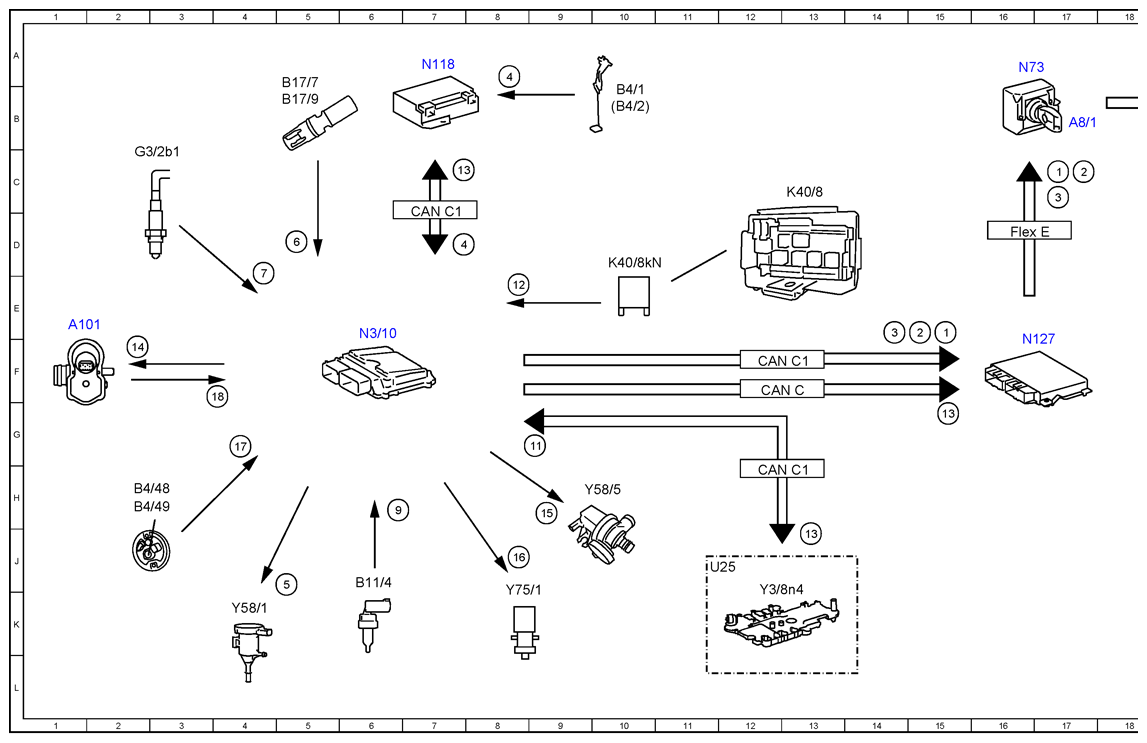

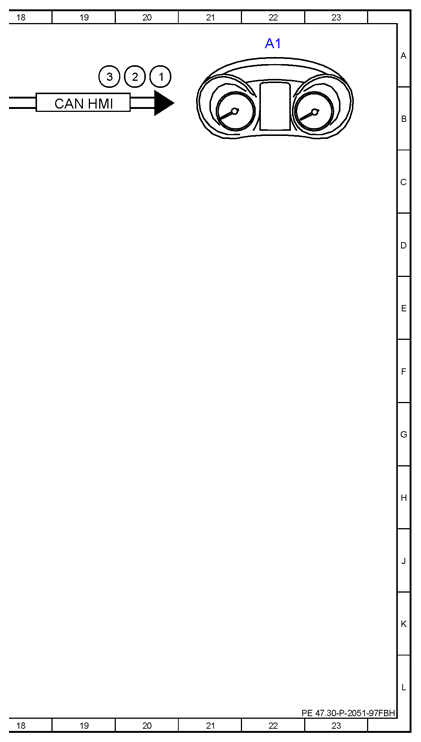

Electrical Function Schematic For System Purging With Leak Test - PE47.30-P-2051-97FBH
Engine 274.9 in model 205.047 with code 494 (US version) Engine 274.9 in model 253.954 with code 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 20A |
| 1 | Engine diagnosis indicator lamp, actuation | 17C |
| 1 | Engine diagnosis indicator lamp, actuation | 15E |
| 11 | Gear range, status | 9G |
| 12 | Circuit 87, status | 8E |
| 13 | Engine running, signal | 13J |
| 13 | Engine running, signal | 15G |
| 13 | Engine running, signal | 7C |
| 14 | Fuel tank diagnostic module, actuation | 2F |
| 15 | Fuel tank shutoff valve, actuation | 9H |
| 16 | Fuel vapor shutoff valve, actuation | 9J |
| 17 | Fuel tank pressure sensor, signal | 4G |
| 18 | Fuel tank diagnostic module, status | 4F |
| 2 | Instrument cluster, message | 20A |
| 2 | Instrument cluster, message | 17C |
| 2 | Instrument cluster, message | 15E |
| 3 | Fuel reserve warning lamp, actuation | 19A |
| 3 | Fuel reserve warning lamp, actuation | 17C |
| 3 | Fuel reserve warning lamp, actuation | 14E |
| 4 | Fuel level, signal | 8A |
| 4 | Fuel level, signal | 7D |
| 5 | Purging switchover valve, actuation | 5J |
| 6 | Intake air temperature sensor, signal | 5D |
| 7 | Oxygen sensor, sensor element, signal | 4E |
| 9 | Coolant temperature sensor, signal | 6H |
| A1 | Instrument cluster | 22A |
| A101 | Fuel tank diagnostic module | 1E |
| A8/1 | Transmitter key | 17B |
| B11/4 | Coolant temperature sensor | 6J |
| B17/7 | Charge air temperature sensor upstream of throttle valve | 5B |
| B17/9 | Charge air temperature sensor downstream of throttle valve | 5B |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 10B |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 10B |
| B4/48 | Fuel tank pressure sensor 1 | 2H |
| B4/49 | Fuel tank pressure sensor 2 | 2H |
| CAN C | Engine CAN | 12F |
| CAN C1 | Drive train CAN | 12F |
| CAN C1 | Drive train CAN | 12H |
| CAN C1 | Drive train CAN | 7D |
| CAN HMI | User interface CAN | 19B |
| Flex E | Chassis FlexRay | 16D |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 2C |
| K40/8 | Engine fuse and relay module | 13C |
| K40/8kN | Circuit 87M relay | 10D |
| N118 | Fuel pump control unit | 7A |
| N127 | Drivetrain control unit | 16F |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N73 | Electronic ignition switch control unit | 16A |
| U25 | Valid for automatic transmission | 11J |
| Y3/8n4 | Fully integrated transmission control, control unit | 12K |
| Y58/1 | Purge control valve | 4K |
| Y58/5 | Fuel tank shutoff valve | 10H |
| Y75/1 | Fuel vapor shutoff valve | 8K |
