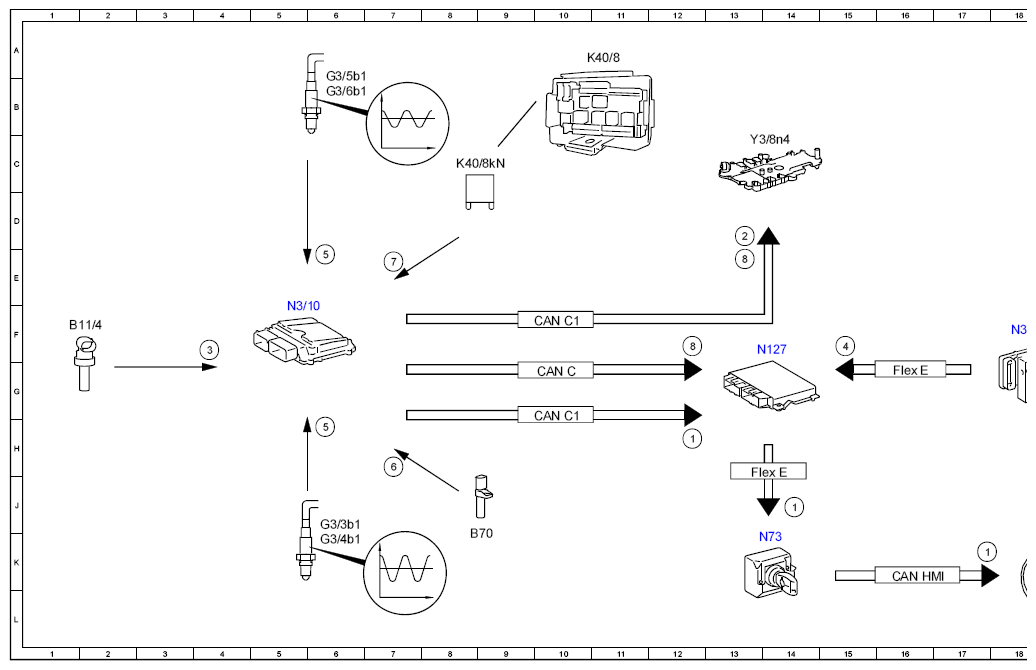

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97FBB
Engine 276.8 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 12H |
| 1 | Engine diagnosis indicator lamp, actuation | 14J |
| 1 | Engine diagnosis indicator lamp, actuation | 17K |
| 2 | Shift point, increase request | 13D |
| 3 | Coolant temperature sensor, signal | 4F |
| 4 | Wheel speed, signal | 15F |
| 5 | Oxygen sensor, sensor element, signal | 6H |
| 5 | Oxygen sensor, sensor element, signal | 6E |
| 6 | Engine speed, signal | 7H |
| 7 | Circuit 87, status | 7E |
| 8 | Engine running, signal | 12F |
| 8 | Engine running, signal | 13E |
| A1 | Instrument cluster | 19J |
| B11/4 | Coolant temperature sensor | 1F |
| B70 | Crankshaft Hall sensor | 8K |
| CAN C | Engine CAN | 10G |
| CAN C1 | Drive train CAN | 10F |
| CAN C1 | Drive train CAN | 10H |
| CAN HMI | User interface CAN | 16K |
| Flex E | Chassis FlexRay | 13H |
| Flex E | Chassis FlexRay | 16G |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 6J |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 6K |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 6B |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 6B |
| K40/8 | Engine fuse and relay module | 11A |
| K40/8kN | Circuit 87M relay | 8C |
| N127 | Drivetrain control unit | 14F |
| N3/10 | ME-SFI [ME] control unit | 5F |
| N30/4 | Electronic Stability Program control unit | 18F |
| N73 | Electronic ignition switch control unit | 14K |
| Y3/8n4 | Fully integrated transmission control, control unit | 13C |
