Replacing Rear Crankshaft Radial Seal - AR03.20-P-3063MMV

Engine 276.8 in model 205

Engine 276.8 in model 253

MODIFICATION NOTES

20.05.2019

Rear end cover bolt at crankcase/oil pan (belt side)

BA01.40-P-1002-01K

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove drive plate		AR03.30-P-8001MMV

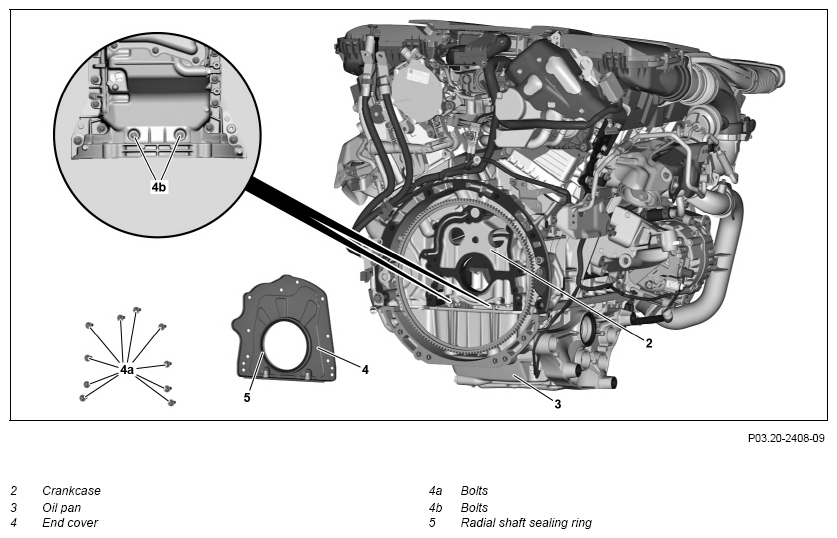

2	Clean crankcase (2) and oil pan (3) in area around the end cover (4)	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove screw/bolts (4a, 4b)	Screw, rear end cover to crankcase/oil pan (belt side)	*BA01.40-P-1002-01K
		Screw/bolt, oil pan to crankcase/timing case cover/rear end cover	*BA01.45-P-1001-01E
4	Place at the side cutouts of the end cover (4) and unfasten end cover (4) with radial shaft sealing ring (5) from crankcase (2)	Do not drive in any tools between end cover (4) and crankcase (2) to loosen them. The sealing surfaces can be damaged otherwise. Heat oil pan top section (4) in area of the sealing surfaces if necessary using a heat gun.
5	Remove end cover (4) with radial shaft sealing ring (5)	The radial shaft sealing ring (5) is vulcanized into the end cover (4) and can only, therefore, be replaced together with the end cover (4).	AR03.20-P-3063-01MMA
		Assembly cleaner	*BR00.45-Z-1028-04A
		Loctite 7200	*BR00.45-Z-1038-04A
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Screw/bolt, oil pan to crankcase/timing case cover/rear end cover	*BA01.45-P-1001-01E
		Screw, rear end cover to crankcase/oil pan (belt side)	*BA01.40-P-1002-01K
		Insertion tool	Fig 1
	Clean
6	Clean sealing surfaces for end cover (4)	Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise.
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
7	Install in the reverse order
	Check
8	Check engine oil level and correct if necessary		AP18.00-P-1811MP
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Carry out engine test run and check engine for leaktightness while it is running

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 276
BA01.40-P-1002-01K	Screw, rear end cover to crankcase/oil pan (belt side)	Nm	9

OIL PAN

Number	Designation			Engine 276
BA01.45-P-1001-01E	Screw/bolt, oil pan to crankcase/timing case cover/rear end cover	M6	Nm	9

Fig 1: Identifying Insertion Tool (273 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant, Loctite 5970, 50 ml	A 003 989 98 20 10
BR00.45-Z-1028-04A	Assembly cleaner	Adolf Wurth GmbH & Co. KG
BR00.45-Z-1038-04A	Loctite 7200	Henkel AG & Co. KGaA
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
