Replace Front Crankshaft Radial Sealing Ring - AR03.20-P-3000MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove | |||
| 1 | Remove belt pulley/vibration damper (8) | AR03.30-P-1600MMV | |
| 2 | Press out radial shaft sealing ring (5) using a suitable tool from the mounting hole | ||
| Check | |||
| 3 | Check contact surface of radial shaft sealing ring (5) at hub of belt pulley/vibration damper (8) for damage | If damage is present ↓ Replace belt pulley/vibration damper (8). |
AR03.30-P-1600MMV |
| Install | |||
| 4 | Install radial shaft sealing ring (5) | AR03.20-P-3000-01MM | |

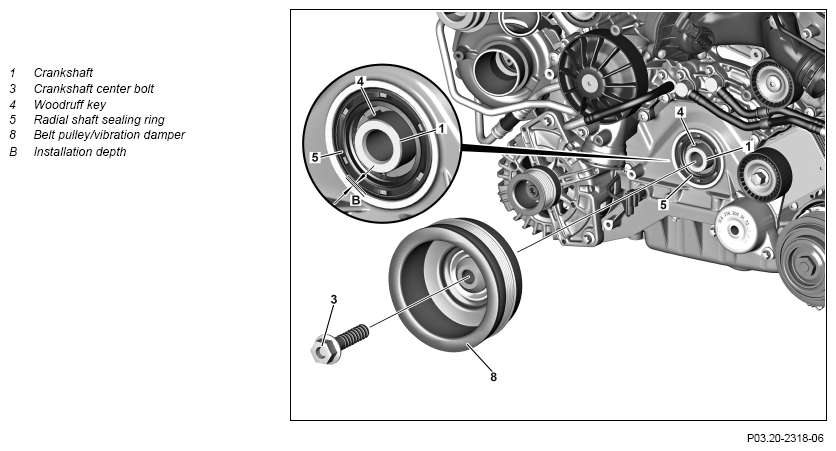

| Fig 1 | |||
| 5 | Install belt pulley/vibration damper (8) | AR03.30-P-1600MMV | |
| 6 | Check engine oil level; correct if necessary | AP18.00-P-1811MP | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run and check engine for leaktightness | ||
| 8 | Install lower engine compartment paneling | AR61.20-P-1105LW |
