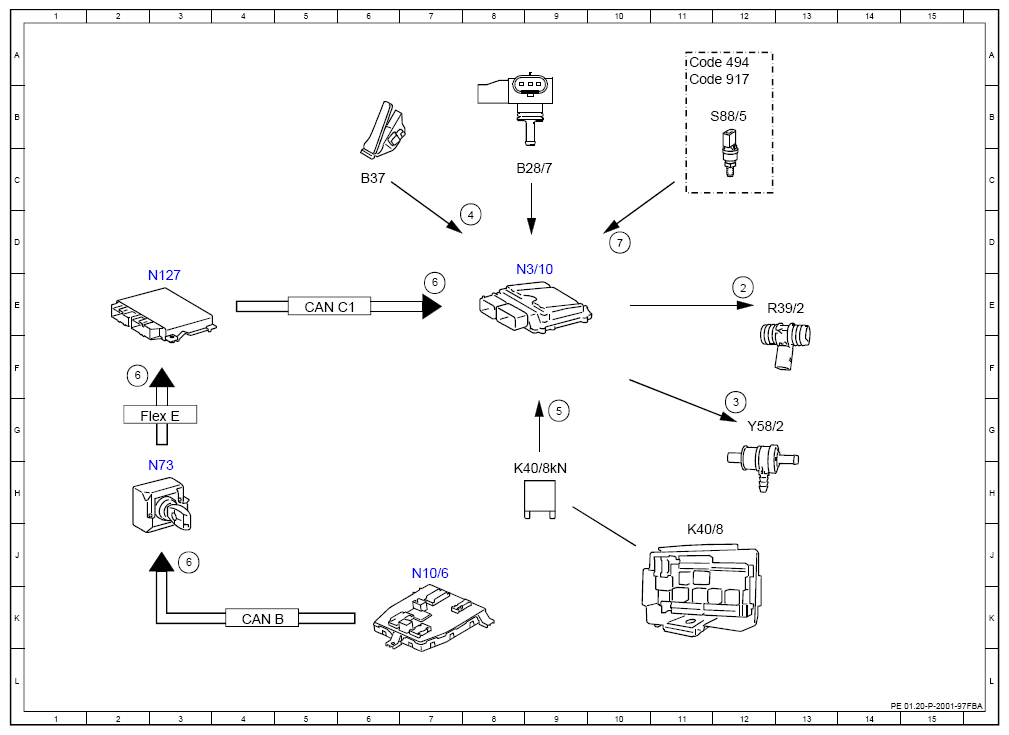

Electrical Function Schematic For Crankcase Ventilation System - PE01.20-P-2001-97FBA
Engine 274.9 in model 205 (except 205.047/053/054/147/247/253) Engine 274.9 in model 253 (except 253.354/954)
| Code: | Designation: | Position: |
|---|---|---|
| 2 | Vent line heater element, actuation | 12E |
| 3 | Partial load operation crankcase ventilation system valve, actuation | 12G |
| 4 | Accelerator pedal sensor, signal | 8D |
| 5 | Circuit 87, status | 9G |
| 6 | Outside temperature, signal | 2F |
| 6 | Outside temperature, signal | 3J |
| 6 | Outside temperature, signal | 7E |
| 7 | Vent line contact switch, signal | 10D |
| B28/7 | Pressure sensor downstream of throttle valve | 9C |
| B37 | Accelerator pedal sensor | 6C |
| CAN B | Interior CAN | 4K |
| CAN C1 | Drive train CAN | 5E |
| Code 494 | USA version | IIA |
| Code 917 | PZEV emission USA | IIA |
| Flex E | Chassis FlexRay | 3G |
| K40/8 | Engine fuse and relay module | 11J |
| K40/8kN | Circuit 87M relay | 9H |
| N10/6 | Front SAM control unit | 7J |
| N127 | Drivetrain control unit | 3E |
| N3/10 | ME-SFI [ME] control unit | 9E |
| N73 | Electronic ignition switch control unit | 3H |
| R39/2 | Full-load operation vent line heater element | 13E |
| S88/5 | Vent line contact switch | IIB |
| Y58/2 | Partial load operation crankcase ventilation valve | 12G |
