Remove/Install The Coolant Lines For The Turbocharger - AR09.40-P-6020-14MR
Engine 274
MODIFICATION NOTES
| 18.05.2016 | Screw coolant line supply / return to exhaust gas turbocharger | BA09.40-P-1009-01U | |
| 18.05.2016 | Coolant line screw return to cylinder head | BA09.40-P-1011-01U |
TURBOCHARGER
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA09.40-P-1009-01U | Bolt, coolant feed/return line to turbocharger | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA09.40-P-1010-01U | Bolt, coolant line feed line to water pump | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA09.40-P-1011-01U | Bolt, coolant return flow line to cylinder head | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||

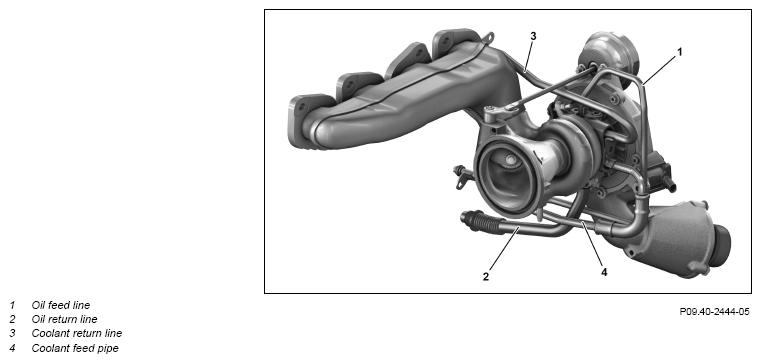

- Detach coolant return line (3) at cylinder head and turbocharger.
Installation: Replace screw/bolts.
- Detach coolant return line (4) at coolant pump and turbocharger.
