Remove/Install Radiator - AR20.20-P-3865LWB
Model 205 (except 205.013/213) with engine 274.9, 276.8, 626, 651, 654
Shown on engine 651
Shown on engine 651
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Drain off coolant. | Model 205 (except 205.013/213) with engine 654 | AR20.00-P-1142OLI |
| Model 205 with engine 274.9, 276.8, 626, 651 | AR20.00-P-1142LW | ||
| 2 | Remove fan unit. | Engine 654 in model 205 (except 205.013/213) | AR20.40-P-5050OLI |
| Engine 626 in model 205 | AR20.40-P-5050OLP | ||
| Engine 274.9, 276.8, 651 in model 205 | AR20.40-P-5050LWB | ||

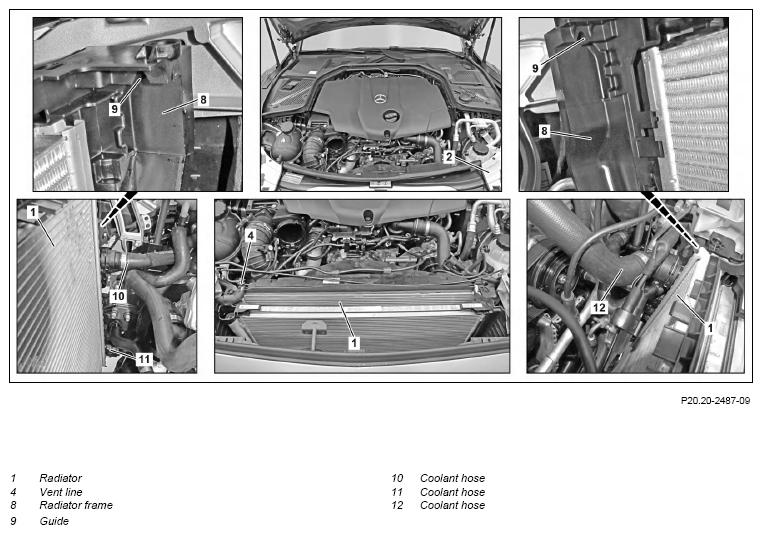

| 3 | Remove vent line (4) from cooler (1). | AR20.20-P-7441-01RQ | |
| 4 | Remove coolant hose (11) from cooler (1). | Model 205 (except 205.013/213) with engine 274.9, 276.8, 651, 654 | |
| AR20.20-P-7441-01RQ | |||
| 5 | Remove coolant hoses (10, 12) from cooler (1). | AR20.20-P-7441-01RQ | |
| 6 | Remove screw/bolts for cooler (1) from the cooler frame (8) | Model 205 (except 205.013/213) with engine 654 | |

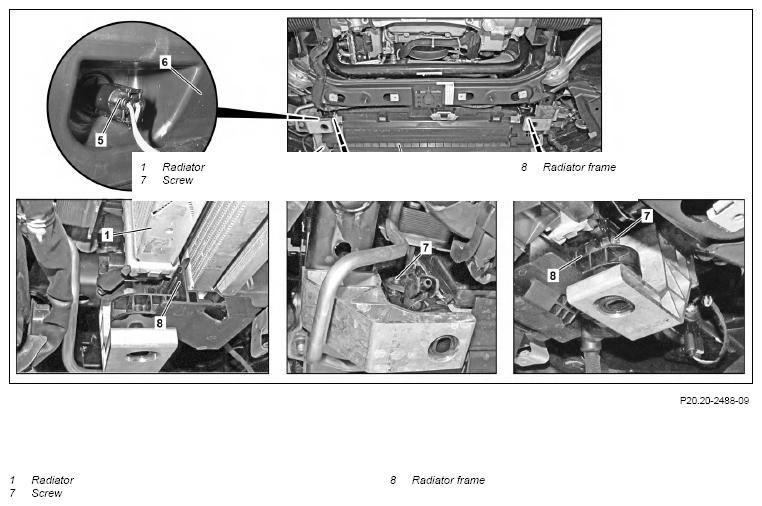

| 7 | Remove bolts_(7). | Model 205 with engine 274.9, 276.8, 651 | |
| 8 | Pull the cooler (1) to the rear out of the radiator frame (8) | Model 205 with engine 274.9, 276.8, 651 | |
| 9.1 | Press radiator (1) downwards out of the upper guides (9) of the radiator frame (8) upwards and remove radiator (1) downwards | Model 205 (except 205.013/213) with engine 274.9, 276.8, 651, 654 |
|
| 9.2 | Unlock upper retaining clamp of radiator (1), tip the radiator (1) to the rear and remove upwards | Model 205 with engine 626 | |
| 10 | Check radiator (1) for damage | When reusing the radiator (1) If damage is present, ↓ Replace the radiator (1). |
|
| 11 | Install in the reverse order. |
