Remove/Install The Oil Line On The Turbocharger - AR09.40-P-6020-13MR
Engine 274
MODIFICATION NOTES
| 18.05.2016 | Oil line screw, oil inlet to exhaust gas turbocharger | BA09.40-P-1005-01U | |
| 18.05.2016 | Screw oil line oil supply to crankcase | BA09.40-P-1006-01U | |
| 18.05.2016 | Oil pressure line screw on exhaust gas turbocharger | BA09.40-P-1007-01U | |
| 18.05.2016 | Screw oil pressure line to crankcase | BA09.40-P-1008-01U |
TURBOCHARGER
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA09.40-P-1005-01U | Screw/bolt, oil line for oil feed to exhaust gas turbocharger | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA09.40-P-1006-01U | Screw/bolt, oil line for oil feed to crankcase | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA09.40-P-1007-01U | Bolt, oil return flow line to turbocharger | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||
TURBOCHARGER
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA09.40-P-1008-01U | Bolt, oil return line to crankcase | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 60 | ||

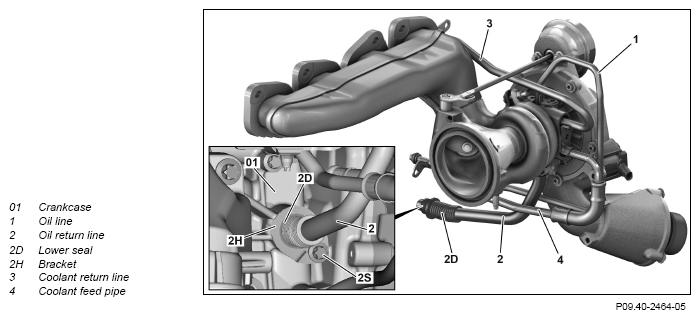

- Detach oil line (1) at crankcase (01) and ATL.
Installation: Replace screw/bolts.
- Detach oil return line (2) on crankcase (01) at ATL
Installation:
Replace upper and lower seal (2D).
