Remove/Install Circulation Pump For Low-Temperature Water Circuit - AR09.41-P-6925MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
Shown on engine 276.8 in model 205

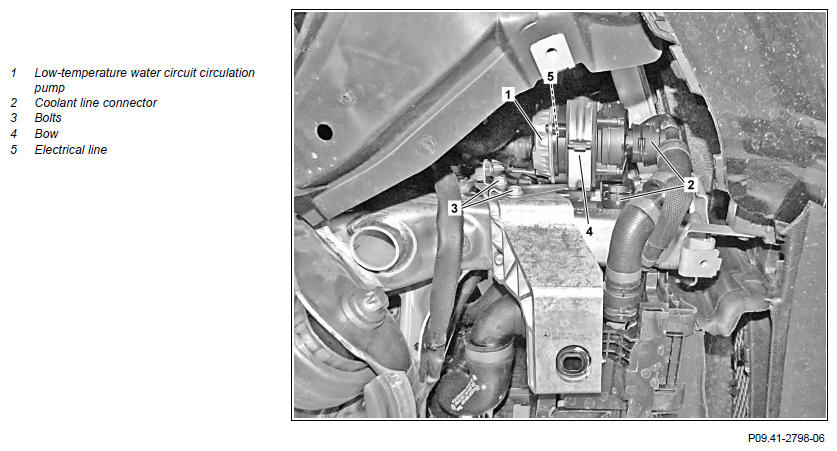

Fig 1: Circulation Pump For Low-Temperature Water Circuit Components Location - Engine 276.8 in model 205
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove lower front and center lower engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834LW | |
| 3 | Release and disconnect electrical line (5) at low-temperature water circuit circulation pump (1) | ||
| 4 | Detach coolant line connector (2) | AR20.20-P-7441-01RQ | |
| 5 | Remove screw/bolts (3) and remove low-temperature water circuit circulation pump (1) together with bracket (4) and elastomer bearing from bracket on longitudinal member | ||
| 6 | Install in the reverse order |
