Remove/Install Circulation Pump For Low-Temperature Water Circuit - AR09.41-P-6925LW
Model 205, 253 with engine 274.9, 651

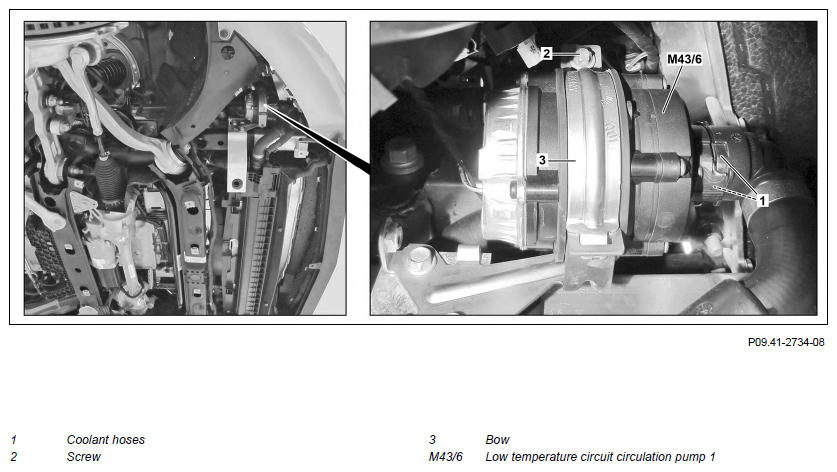

Fig 1: Circulation Pump For Low-Temperature Water Circuit Components Location - Model 205 with Engine 274.9; Shown on model 205 with engine 651
Shown on model 205 with engine 651
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove front part section of lower engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834LW | |
| 3 | Disconnect electrical connection at low-temperature circuit circulation pump 1 (M43/6) | ||
| 4 | Detach coolant hose (1) at low-temperature circuit circulation pump 1 (M43/6). | AR09.41-P-1311-01AL | |
| 5 | Remove screw/bolt (2), remove bracket (3) and remove low-temperature circuit circulation pump 1 (M43/6) | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check low-temperature circuit cooling system for leaktightness | AR09.41-P-1010LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check low-temperature circuit cooling system circulation pump (1 M43/6) for proper operation and leaktightness |
