Routing Diagram For Poly-V Belt - AR13.22-P-3902-02MRA

Engine 274.9 in model 205 (except 205.047/147/247)

Engine 274.9 in model 253 (except 253.354/954)

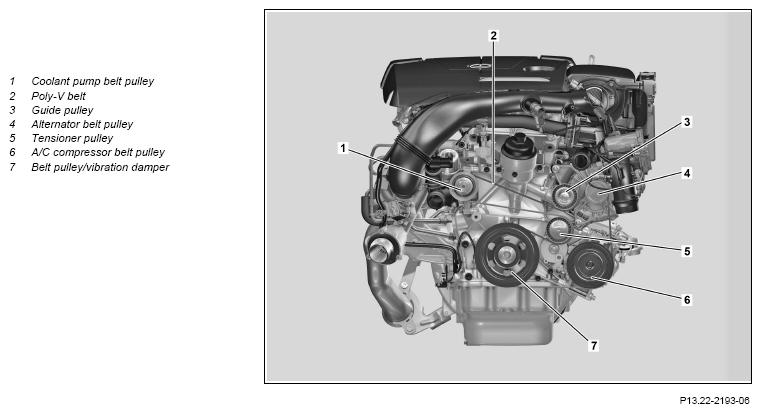

Shown on engine 274.9 with a manual coolant pump

Fig 1: Poly-V Belt Routing Diagram - Engine 274.9 In Model 205 With An Manual Coolant Pump

Courtesy of MERCEDES-BENZ USA

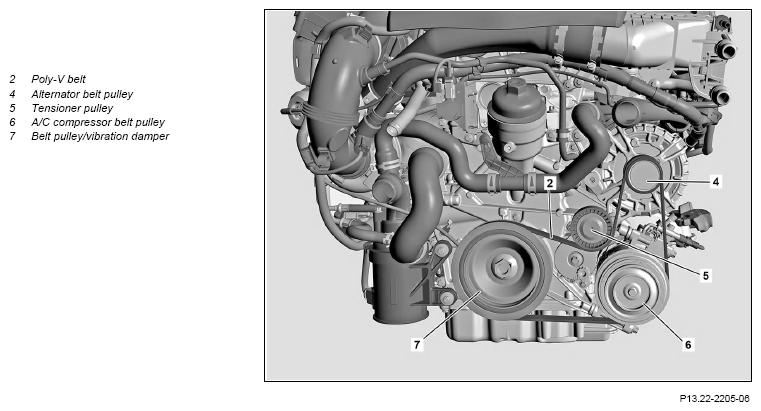

Shown on engine 274.9 with an electrical coolant pump

Fig 2: Poly-V Belt Routing Diagram - Engine 274.9 In Model 205 With An Electrical Coolant Pump

Courtesy of MERCEDES-BENZ USA
