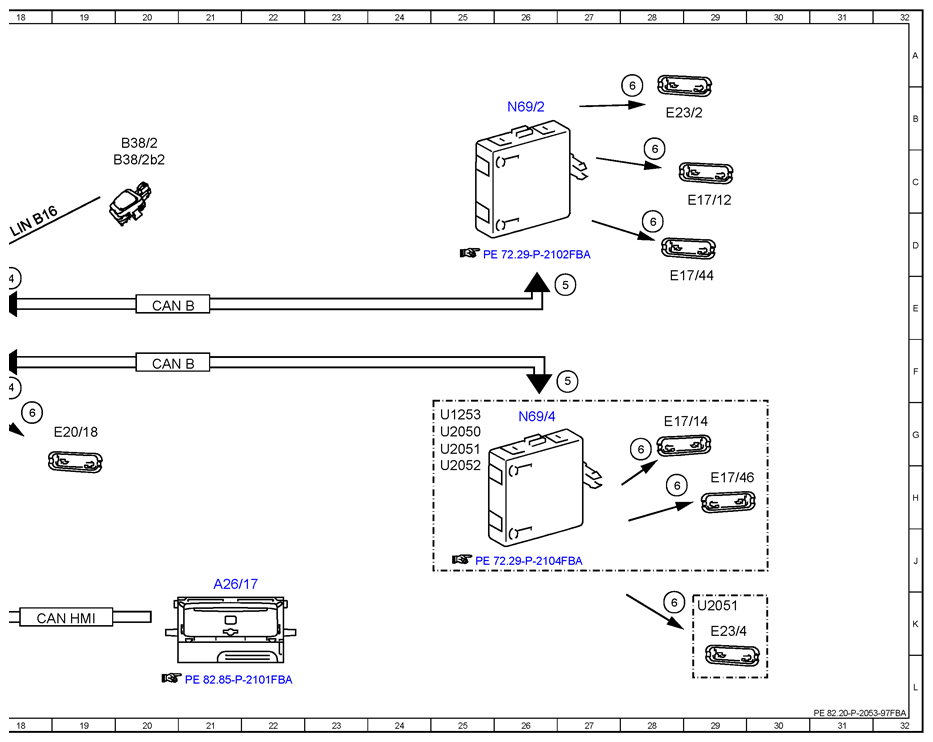

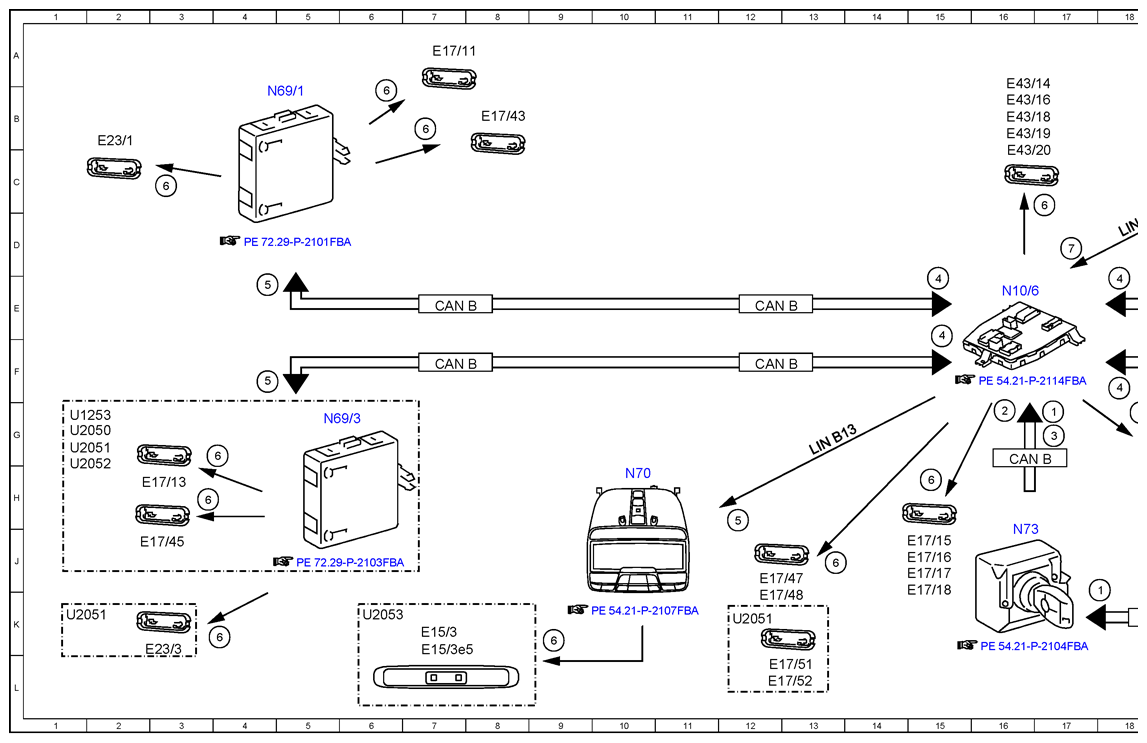

Electrical Function Schematic Ambiance Illumination - PE82.20-P-2053-97FBA
Model 205 up to model year 2019 with code 877 (ambient lighting) Model 253 (except 253.99) up to model year 2020 with code 877 (ambient lighting)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Ambiance illumination settings, status | 17G |
| 1 | Ambiance illumination settings, status | 18K |
| 2 | Central locking, status | 16G |
| 3 | Circuit 15, status | 17G |
| 4 | Door rotary tumbler switch, status | 18E |
| 4 | Door rotary tumbler switch, status | 18F |
| 4 | Door rotary tumbler switch, status | 19E |
| 4 | Door rotary tumbler switch, status | 15E |
| 5 | Ambience illumination, request | 12H |
| 5 | Ambience illumination, request | 27E |
| 5 | Ambience illumination, request | 27F |
| 5 | Ambience illumination, request | 4E |
| 5 | Ambience illumination, request | 4F |
| 6 | Ambience illumination, actuation | 15H |
| 6 | Ambience illumination, actuation | 18G |
| 6 | Ambience illumination, actuation | 28D |
| 6 | Ambience illumination, actuation | 28C |
| 6 | Ambience illumination, actuation | 28B |
| 6 | Ambience illumination, actuation | 4K |
| 6 | Ambience illumination, actuation | 3H |
| 6 | Ambience illumination, actuation | 4G |
| 6 | Ambience illumination, actuation | 17C |
| 6 | Ambience illumination, actuation | 28K |
| 6 | Ambience illumination, actuation | 28H |
| 6 | Ambience illumination, actuation | 28G |
| 6 | Ambience illumination, actuation | 7B |
| 6 | Ambience illumination, actuation | 6B |
| 6 | Ambience illumination, actuation | 3C |
| 6 | Ambience illumination, actuation | 13J |
| 6 | Ambience illumination, actuation | 9K |
| 7 | Dusk setting, signal | 17C |
| A26/17 | Head unit | 21J |
| B38/2 | Rain/light sensor with additional functions | 20B |
| B38/2b2 | Light sensor | 20C |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 20E |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 12E |
| CAN HMI | User interface CAN | 19K |
| E15/3 | Rear dome lamp | 7K |
| E15/3e5 | Rear dome lamp ambiance illumination | 7K |
| E17/11 | Left front door, door handle illumination | 7A |
| E17/12 | Right front door, door handle illumination | 29C |
| E17/13 | Left rear door, door handle illumination | 3H |
| E17/14 | Right rear door, door handle illumination | 28G |
| E17/15 | Right front footwell lamp | 15J |
| E17/16 | Left front footwell lamp | 15J |
| E17/17 | Left rear footwell lamp | 15J |
| E17/18 | Right rear footwell lamp | 15K |
| E17/43 | Left front door ambiance illumination | 8B |
| E17/44 | Right front door ambiance illumination | 28E |
| E17/45 | Left rear door ambiance illumination | 3J |
| E17/46 | Right rear door ambiance illumination | 29H |
| E17/47 | Left front illuminated door sill molding | 12J |
| E17/48 | Right front illuminated door sill molding | 12K |
| E17/51 | Left rear illuminated door sill molding | 12L |
| E17/52 | Right rear illuminated door sill molding | 12L |
| E20/18 | Front center console cup holder ambiance illumination | 19G |
| E23/1 | Left front door stowage compartment illumination | 2B |
| E23/2 | Right front door stowage compartment illumination | 28B |
| E23/3 | Left rear door stowage compartment illumination | 3K |
| E23/4 | Right rear door stowage compartment illumination | 29K |
| E43/14 | Left front center console ambiance illumination | 16B |
| E43/16 | Right front center console ambiance illumination | 16B |
| E43/18 | Driver-side ambiance illumination | 16B |
| E43/19 | Passenger-side interior ambiance illumination | 16B |
| E43/20 | Passenger-side exterior ambiance illumination | 16C |
| LIN B13 | Roof LIN | 13G |
| LIN B16 | Rain and light sensor LIN | 18D |
| N10/6 | Front SAM control unit | 16E |
| N69/1 | Left front door control unit | 5B |
| N69/2 | Right front door control unit | 26B |
| N69/3 | Left rear door control unit | 5G |
| N69/4 | Right rear door control unit | 26G |
| N70 | Overhead control panel control unit | 10H |
| N73 | Electronic ignition switch control unit | 16J |
| U1253 | Valid for model 253 | 1G |
| U1253 | Valid for model 253 | 25G |
| U2050 | Valid for model 205.0 | 1G |
| U2050 | Valid for model 205.0 | 25G |
| U2051 | Valid for model 205.1 | 29K |
| U2051 | Valid for model 205.1 | 1K |
| U2051 | Valid for model 205.1 | 12K |
| U2051 | Valid for model 205.1 | 1G |
| U2051 | Valid for model 205.1 | 25G |
| U2052 | Valid for model 205.2 | 1H |
| U2052 | Valid for model 205.2 | 25H |
| U2053 | Valid for model 205.3 | 6K |
