Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBM
Model 205 as of model year 2019 with code 640 (High-performance LED) with code 641 (Dynamic LED headlamps, left-hand traffic) with code 642 (Dynamic LED headlamps, right-hand traffic) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) Headlamps E1
| Code: | Designation: | Position: |
|---|---|---|

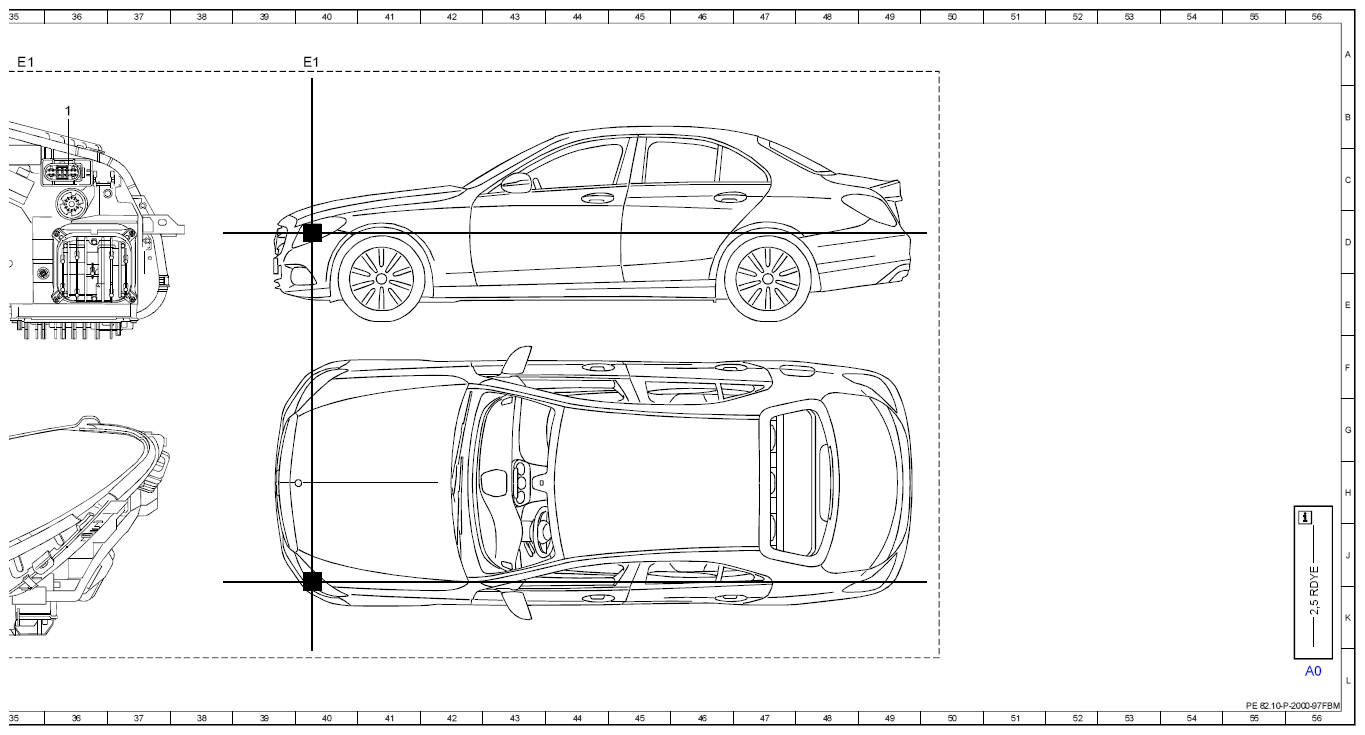

| A0 | Use of wiring diagrams | 56L |

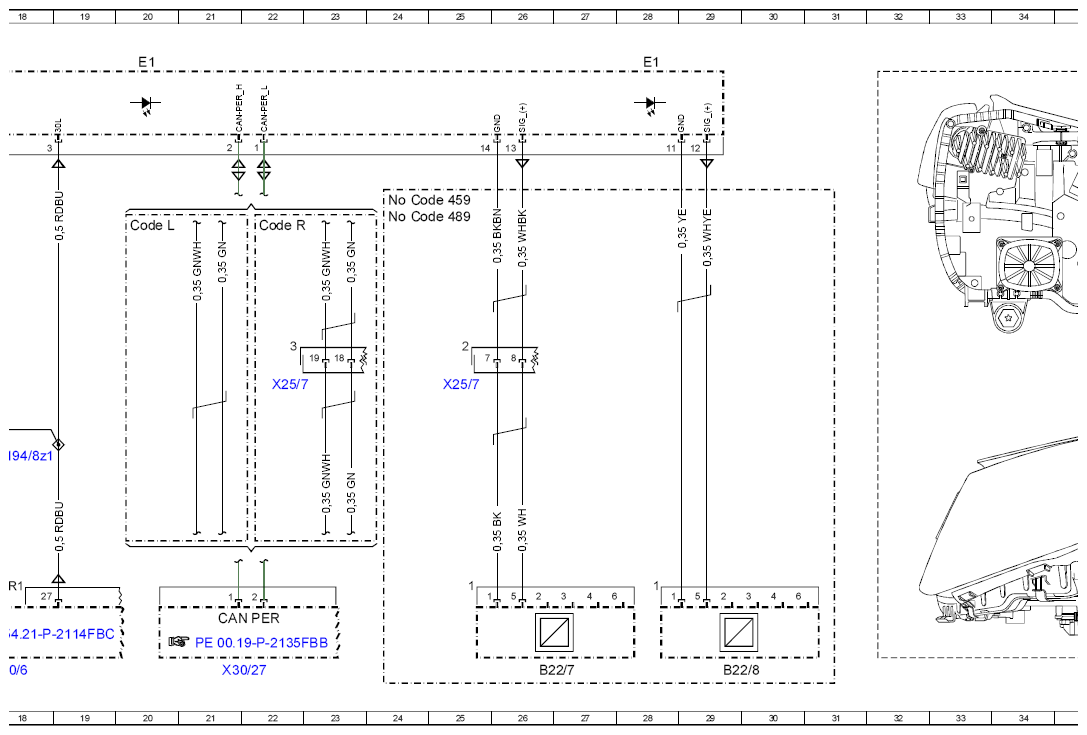

| B22/7 | Left rear level sensor | 26L |
| B22/8 | Left front level sensor | 29L |
| CAN PER | Peripherals CAN | 21K |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 24C |
| Code 489 | AIRMATIC | 24D |
| Code L | LEFT-HAND DRIVE | 20D |
| Code R | RIGHT-HAND DRIVE | 22D |

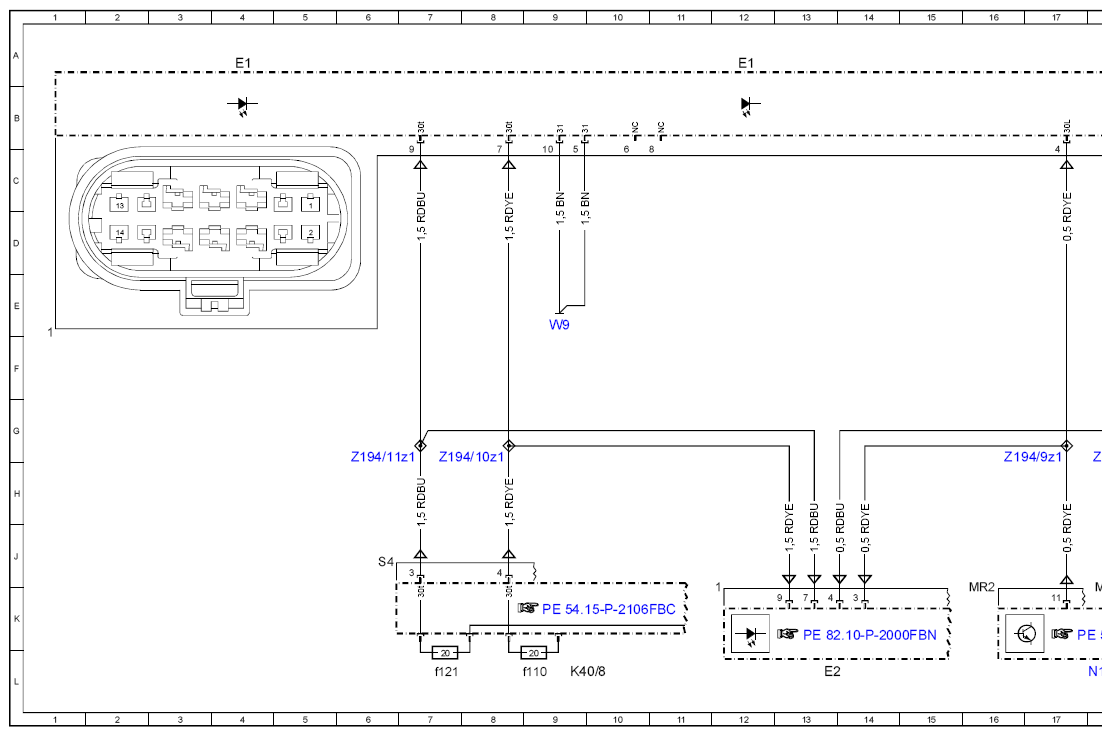

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 28A |
| E1 | Left front lamp unit | 35A |
| E1 | Left front lamp unit | 40A |
| E2 | Right front lamp unit | 13L |
| K40/8 | Engine fuse and relay module | 9L |
| K40/8f110 | Fuse 110 | 9L |
| K40/8f111 | Fuse 111 | 7L |
| N10/6 | Front SAM control unit | 18L |
| W9 | Left front ground point (at lamp unit) | 9E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 22F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 25F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 21L |
| Z194/10z1 | Terminal 30_A connector sleeve, front lamp unit | 8G |
| Z194/11zl | Terminal 30_B connector sleeve, front lamp unit | 6G |
| Z194/8z1 | Circuit 30L connector sleeve | 18G |
| Z194/9z1 | Circuit 30L connector sleeve | 17G |
