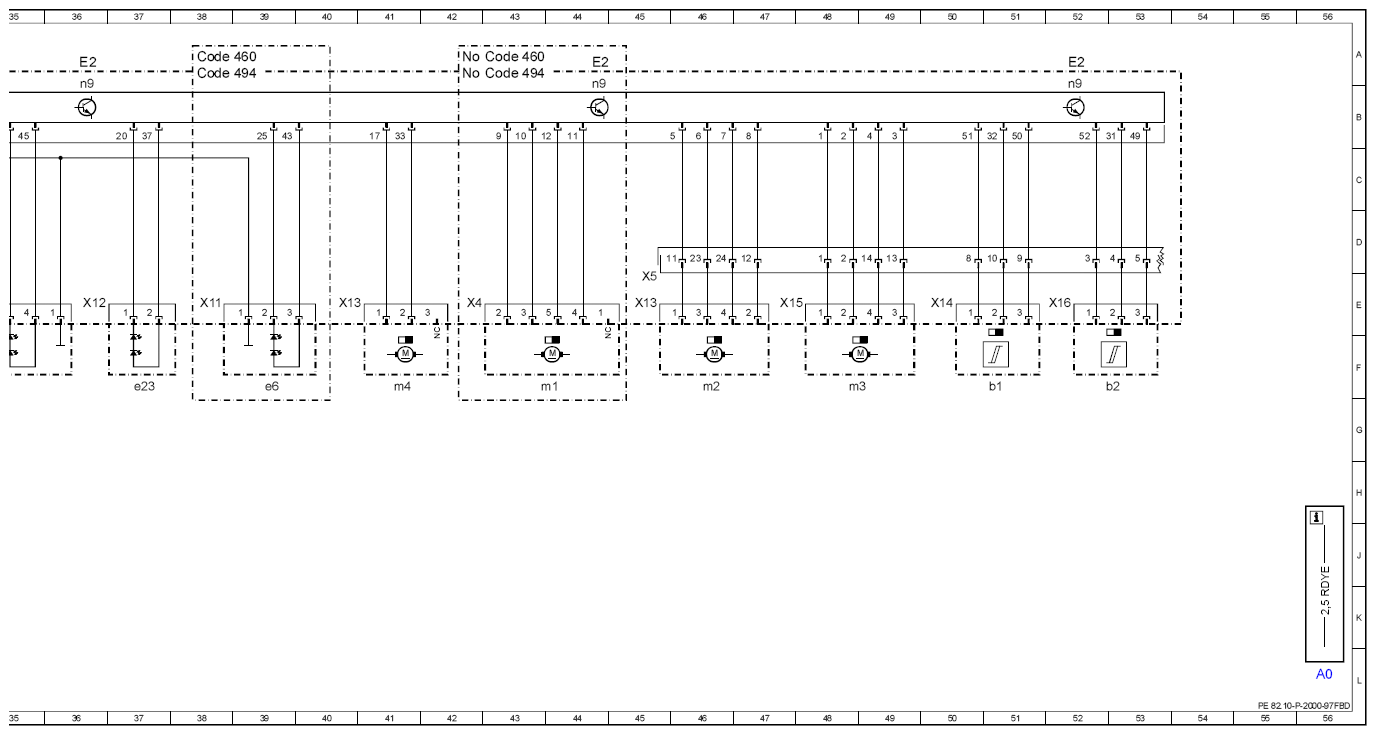

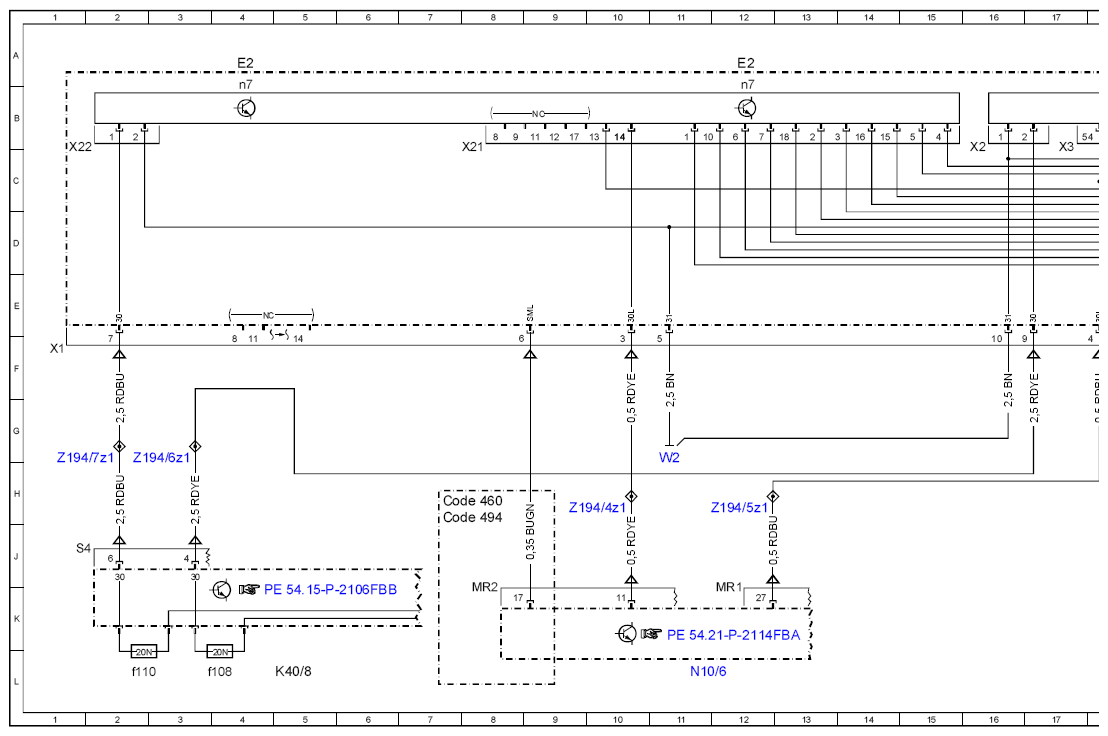

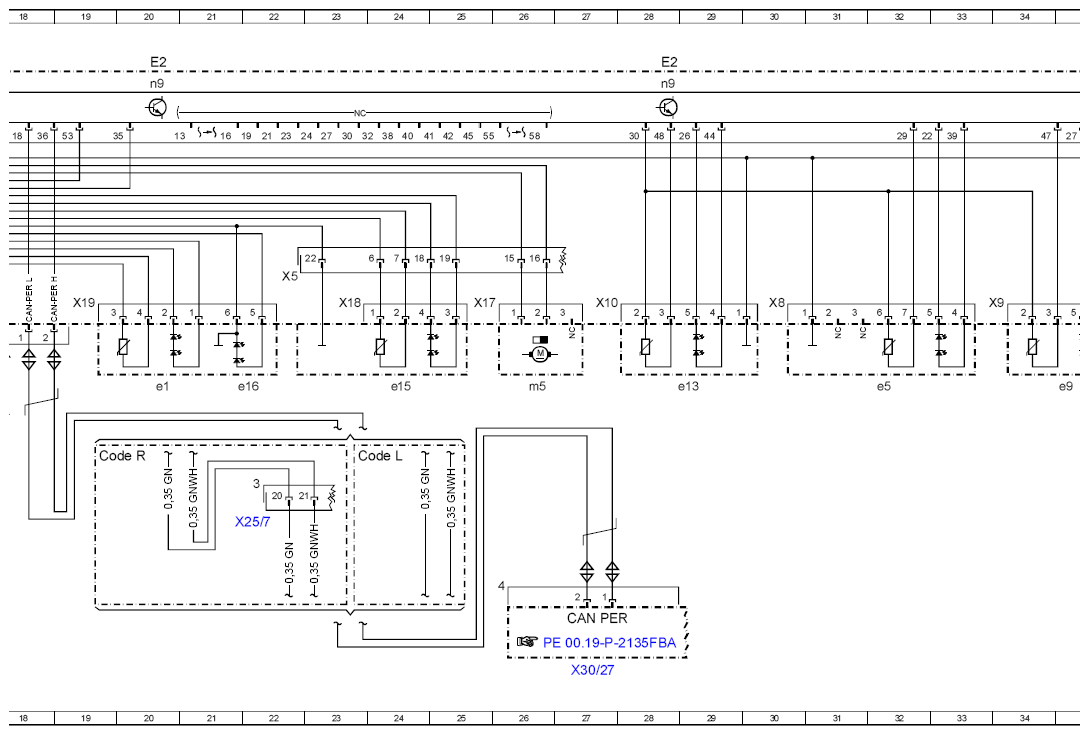

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBD
Model 205 up to model year 2019 with code 640 (High-performance LED) with code 641 (Dynamic LED headlamps, left-hand traffic) with code 642 (Dynamic LED headlamps, right-hand traffic) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| CAN PER | Peripherals CAN | 27K |
| Code 460 | Canada version | 7H |
| Code 460 | Canada version | 38A |
| Code 460 | Canada version | 43A |
| Code 494 | USA version | 7H |
| Code 494 | USA version | 38A |
| Code 494 | USA version | 43A |
| Code L | LEFT-HAND DRIVE | 23G |
| Code R | RIGHT-HAND DRIVE | 19G |
| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 28A |
| E2 | Right front lamp unit | 36A |
| E2 | Right front lamp unit | 44A |
| E2 | Right front lamp unit | 52A |
| E2b1 | Right active curve illumination position sensor | 51F |
| E2b2 | Right light distribution position sensor | 53F |
| E2e1 | Right high beam | 20F |
| E2e13 | Right parking light, standing light and daytime running light | 29F |
| E2e15 | Right low beam (short range) | 24F |
| E2e16 | Right low beam (long range) | 22F |
| E2e23 | Right front ambient light | 37F |
| E2e5 | Right front turn signal lamp | 32F |
| E2e6 | Right front side-marker lamp | 39F |
| E2e9 | Right cornering illumination | 35F |
| E2m1 | Right headlamp range adjustment actuator motor | 44F |
| E2m2 | Right active curve illumination actuator motor | 46F |
| E2m3 | Right light distribution actuator motor | 48F |
| E2m4 | Right LED signaling lights actuation module fan motor | 41F |
| E2m5 | Right LED driving lights actuation module fan motor | 26F |
| E2n7 | Actuation module for right front exterior lights LED | 4B |
| E2n7 | Actuation module for right front exterior lights LED | 12B |
| E2n9 | Right headlamp control unit | 20B |
| E2n9 | Right headlamp control unit | 28B |
| E2n9 | Right headlamp control unit | 36B |
| E2n9 | Right headlamp control unit | 44B |
| E2n9 | Right headlamp control unit | 52B |
| K40/8 | Engine fuse and relay module | 5L |
| K40/8f108 | Fuse 108 | 4L |
| K40/8f110 | Fuse 110 | 2L |
| N10/6 | Front SAM control unit | 11L |
| W2 | Right front ground point (at lamp unit) | 11H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 22J |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 27L |
| Z194/4z1 | Left front lamp unit circuit 30 connector sleeve | 10H |
| Z194/5z1 | Right front lamp unit circuit 30 connector sleeve | 12H |
| Z194/6z1 | Left position lamp connector sleeve | 3H |
| Z194/7z1 | Right position lamp connector sleeve | 2H |
