Remove/Install TV Tuner - AR82.85-P-7366LWM
Model 205.0 (except 205.013/053/054), 205.1/3, 205.2 (except 205.213/253)
as of model year 2019
with code 865 (digital TV)

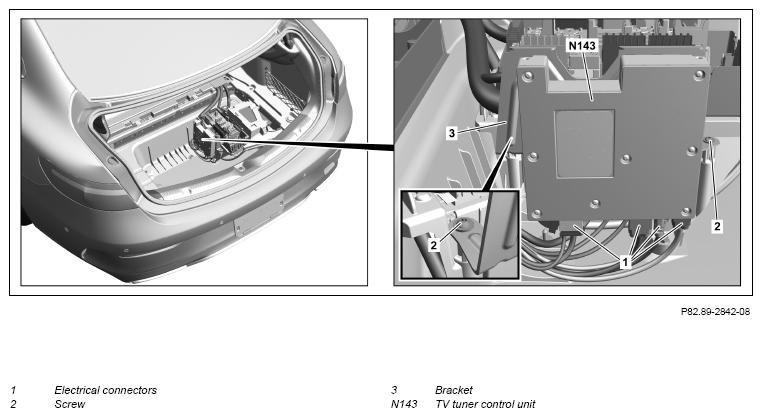

Shown on model 205.3 except code B01 (48V technology)

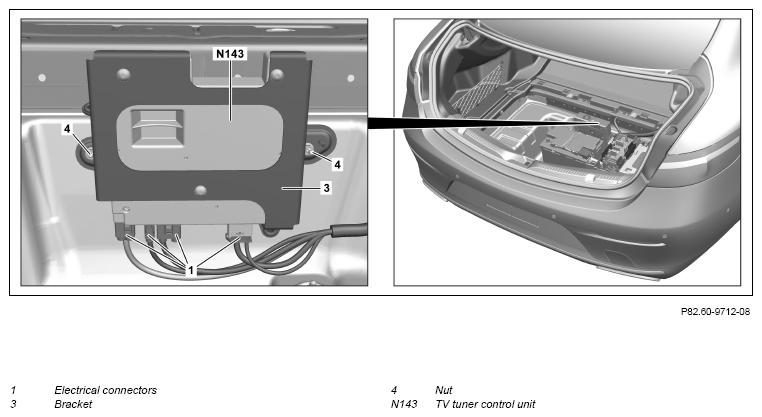

Shown on model 205.3 with code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission TV tuner control unit (N143). | When replacing the TV tuner control unit (N143). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove trunk recess trim or load compartment well trim. | Model 205.0 (except 205.013/053/054), 205.1/3, 205.2 (except 205.213/253) as of model year 2019 with code 865 (digital TV) |
|
| Model 205.0 (except 205.013/053/054), 205.1/3 as of model year 2019 with code 865 (digital TV) |
AR68.30-P-4600LW | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 4 | Remove on-board electrical system battery. | Model 205.0 (except 205.012/013/047/053/054), 205.1 (except 205.147), 205.2 (except 205.212/213/247/253), 205.3 as of model year 2019 with code 865 (digital TV) with code B01 (48V technology) |
AR54.10-P-0005LW |
| 5 | Disconnect electrical connectors (1) and cover fiber-optic cables. | ||
| 6.1 | Unscrew bolts (2). | Model 205.0 (except 205.013/053/054), 205.1/3, 205.2 (except 205.213/253) as of model year 2019 with code 865 (digital TV) except code B01 (48V technology) |
|
| 6.2 | Unscrew nuts (4). | Model 205.0 (except 205.013/053/054), 205.1/3, 205.2 (except 205.213/253) as of model year 2019 with code 865 (digital TV) with code B01 (48V technology) |
|
| 7 | Remove TV tuner control unit (N143) with bracket (3). | ||
| 8 | Remove TV tuner control unit (N143) from bracket (3). | When replacing the TV tuner control unit (N143). | |
| 9 | Install in the reverse order |
