Remove/Install HERMES Control Unit - AR82.95-P-0019LW
Model 205.0/1/2/3
up to model year 2019
with code 360 (HERMES UMTS)
Model 205.0/1/2/3
up to model year 2019
with code 362 (HERMES communications module LTE)
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission HERMES control unit (N112/9). | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove rear cover in trunk. | Model 205.0/1/3 up to model year 2019 with code 360 (HERMES UMTS) Model 205.0/1/3 up to model year 2019 with code 362 (HERMES communications module LTE) |
AR68.30-P-4600LW |
| 3.2 | Remove load compartment floor front section. | Model 205.2 up to model year 2019 with code 360 (HERMES UMTS) Model 205.2 up to model year 2019 with code 362 (HERMES communications module LTE) |
AR68.30-P-1180LWS |

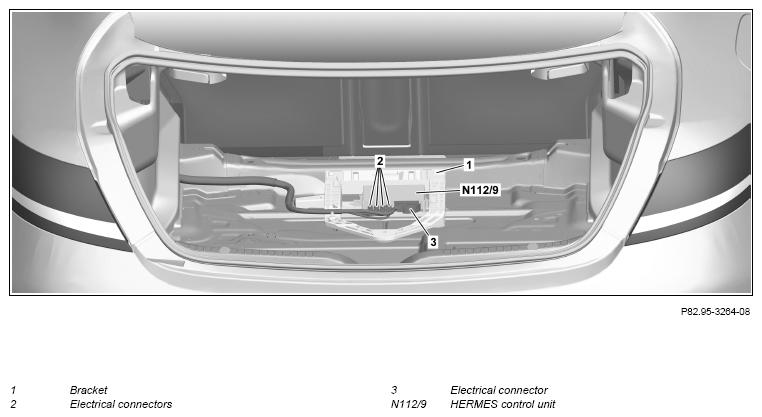

| 4 | Remove HERMES control unit (N112/9) from holder (1). | ||
| 5 | Disconnect electrical connectors (2, 3) and remove HERMES control unit (N112/9). | ||
| 6 | Install in the reverse order. |
