Remove/Install Control Unit For Emergency Call System - AR82.95-P-1005LWH
Model 205.047/147/247
up to model year 2019
with code 348 (Emergency call/assistant system)
Shown on model 205.247 except code 550 (Trailer hitch)

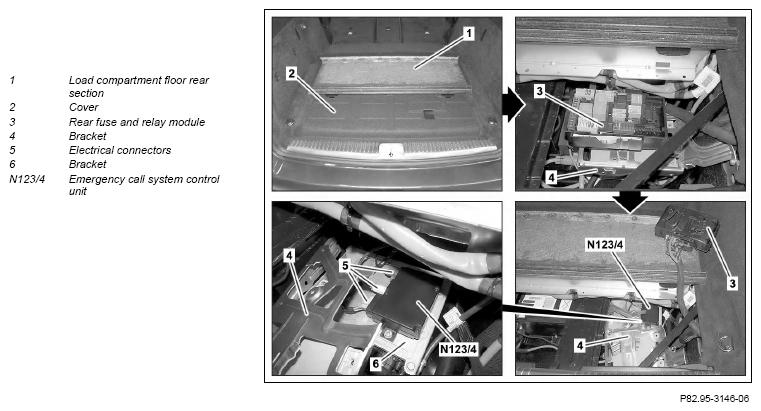

Fig 1: Control Unit For Emergency Call System Components Location - Model 205.047 Up To Model Year 2019 With Code 348
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death when working on component parts and systems with U > = 30 V alternating voltage (AC) or U > = 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission emergency call system control unit (N123/4). | When replacing emergency call system control unit (N123/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove load compartment floor rear section. | Model 205.047/147 up to model year 2019 with code 348 (Emergency call/assistant system) |
|
| 3.2 | Fold over load compartment floor rear section (1). | Model 205.247 up to model year 2019 with code 348 (Emergency call/assistant system) |
|
| 4 | Remove trim (2). | ||
| 5 | Remove rear fuse and relay module (3) from holder (4) and place to one side with attached electric lines. | Model 205.047/147/247 up to model year 2019 with code 348 (Emergency call/assistant system) |
AR54.15-P-0001LW |
| 6 | Remove trailer recognition control unit from holder (4) and place to one side with attached electric lines. | Model 205.047/147/247 up to model year 2019 with code 348 (Emergency call/assistant system) with code 550 (Trailer coupling) |
|
| 7 | Remove holder (4) and place to one side, as shown. | ||
| 8 | Release electrical connections (5) and disconnect. | ||
| 9 | Remove emergency call system control unit (N123/4) from holder (6). | ||
| 10 | Install in the reverse order. |
