Retrofit Illuminated Door Sill Molding Wiring Harness - AZ82.20-P-0001-04LW

Model 205.0/2/3/4

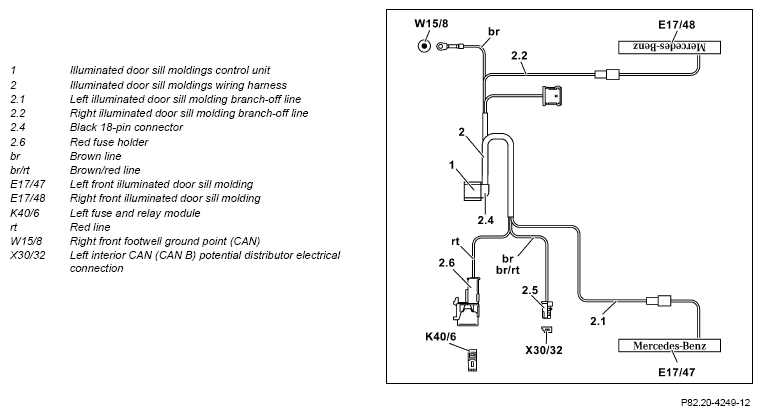

Connection scheme

Courtesy of MERCEDES-BENZ USA

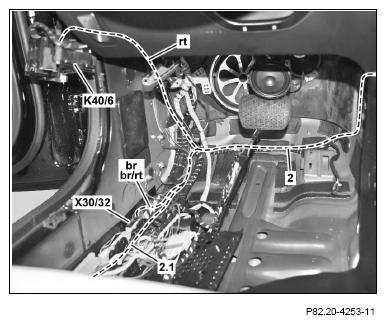

Routing diagram (shown on model 205.0)

Courtesy of MERCEDES-BENZ USA

1. Place wiring harness for illuminated door sill molding (2) into front passenger footwell.

   The black, 18-pin connector (2.4) of the illuminated door sill molding wiring harness (2) is connected to the illuminated door sill molding control unit at a later stage.

2. Route brown line (BN) to right front footwell ground point (CAN) (W15/8) and fix in place with cable ties.
3. Connect brown line (BN) to right front footwell ground point (CAN) (W15/8)

   A maximum of 5 connectors may be connected to a ground point. In the event of over-assignment another ground point should be selected.

4. Route right illuminated door sill molding branch-off line (2.2) along existing lines through cable duct and fix in place with cable ties.

   Route the right illuminated door sill molding branch-off line (2.2) so that the black, 2-pin plug (2.8) can be clipped into the provided cutout at a later stage.

5. Route illuminated door sill molding wiring harness (2) into driver footwell.

   Use a pull-through device.

   Courtesy of MERCEDES-BENZ USA

6. Route illuminated door sill molding wiring harness (2) to A-pillar and fix in place with cable ties.
7. Route left illuminated door sill molding branch-off line (2.1) along existing lines through the cable duct and fix in place with cable ties.

   Route left illuminated door sill molding branch-off line (2.1) so that the black, 2-pin plug can be clipped into the provided cutout later.

8. Unpin red line (RD) from red fuse holder.
9. Route red line (RD) to the left fuse and relay module (K40/6) and fix in place with cable ties.
10. Route twisted brown line (BN) and brown/red line (BN/RD) through cable duct to left interior CAN (CAN B) potential distributor electrical connector (X30/32) and fix in place using cable ties.

    Courtesy of MERCEDES-BENZ USA

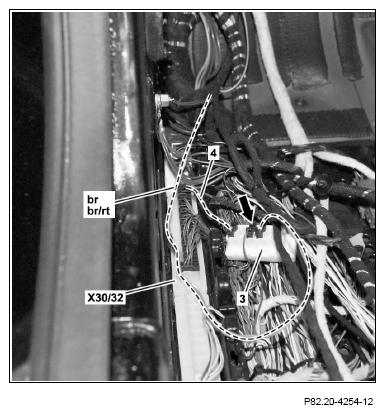

11. Attach black, 2-pin connector of twisted brown line (BN) and brown/red line (BN/RD) to any free slot of left interior CAN (CAN B) potential distributor electrical connector (X30/32).

    If no slots are free.

    Remove any black, 2-pin connector from left interior CAN (CAN B) potential distributor electrical connector (X30/32) and connect potential distributor extension (3) using adapter line (4). Connect detached black, 2-pin connector and black, 2-pin connector of twisted brown line (BN) and brown/red line (BN/RD) to potential distributor extension (3).

    Shown when using potential distributor (3) extension

    Courtesy of MERCEDES-BENZ USA

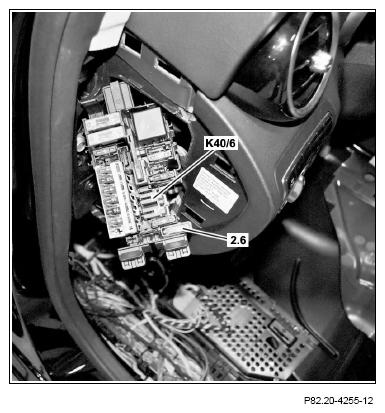

12. Remove lock (20) from left fuse and relay module (K40/6).
13. 13.1) Model 205.0/2/3 up to 12/31/15

    Install electric jumper link (21), as shown, into slot S7 and contact cavity 9 of left fuse and relay module (K40/6).

    Slot S7 and contact cavity 9 of the left fuse and relay module (K40/6) are labeled.

    13.2) Model 205.0/2/3 as of 1/1/16

    Model 205.4

14. Install red line (RD) into slot 5 of left fuse and relay module (K40/6).

    Slot 5 of left fuse and relay module (K40/6) is labeled.

15. Install lock (20) onto left fuse and relay module (K40/6).

    Courtesy of MERCEDES-BENZ USA

16. Model 205.0/2/3 up to 12/31/15

    Install red line (RD) into fuse holder (2.6).

17. Model 205.0/2/3 up to 12/31/15

    Mount red fuse holder (2.6) onto slot S7 of left fuse and relay module (K40/6).

    Slot S7 of left fuse and relay module (K40/6) is labeled.

    1. 17.1) Model 205.0/2/3 up to 12/31/15

       Insert fuse with fuse rating of 5 A into fuse holder (2.6).

    2. 17.2) Model 205.0/2/3 as of 1/1/16

       Model 205.4

       Insert fuse with fuse rating of 5 A into slot F220.
