Retrofit COMAND Online Incl. DVD Changer - AN82.85-P-0008CLW

Model 205.3

with code 3U1 (Head unit ECE/ROW)

with code 531 (COMAND APS)

with code 815 (Single DVD drive)

except code 625 (Australia specification)

except code 822 (Addit. parts for South African vehicles)

except code 830 (China version)

except code 835 (South Korea version)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

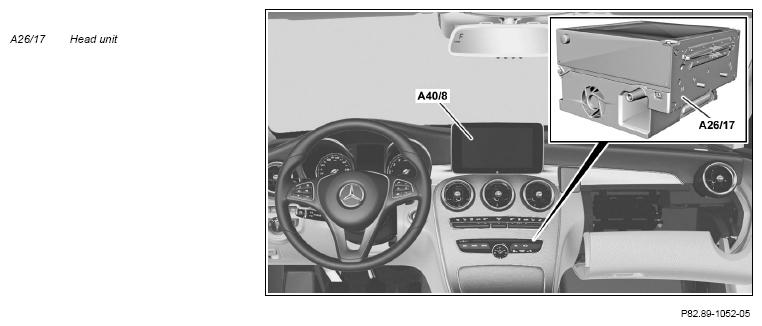

1	Remove head unit (A26/17), COMAND Online with DVD player.
		Model 205.3 as of model year 2019	AR82.85-P-1101LWM
		Model 205.3 up to model year 2019 The head unit (A26/17) COMAND Online incl. DVD player is no longer required.	AR82.85-P-1100LW
2	Remove upper control panel control unit.
		The upper control panel control unit is no longer required.	AR54.21-P-1262LW
	Install
3	Install new upper control panel control unit.
			AR54.21-P-1262LW
4	Install head unit (A26/17), COMAND Online with DVD changer.
		Model 205.3 as of model year 2019	AR82.85-P-1101LWM
		Model 205.3 up to model year 2019	AR82.85-P-1100LW
	Update Vehicle Documentation (VeDoc)
5	Delete special equipment from on-line vehicle data card.	CODE 815 (Single DVD drive)
6	Enter special equipment into online vehicle data card.	Code 814 (DVD changer)
7	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008CLW" under field organization texts to DG 82.
	Check
8	Perform function test.	See Owner's Manual.
