Retrofit CA Module Card Reader - AZ82.60-P-0032LW

Model 205.0 (except 205.047), 205.2/3

with code 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea)

with code 865 (digital TV)

except code 835 (South Korea version)

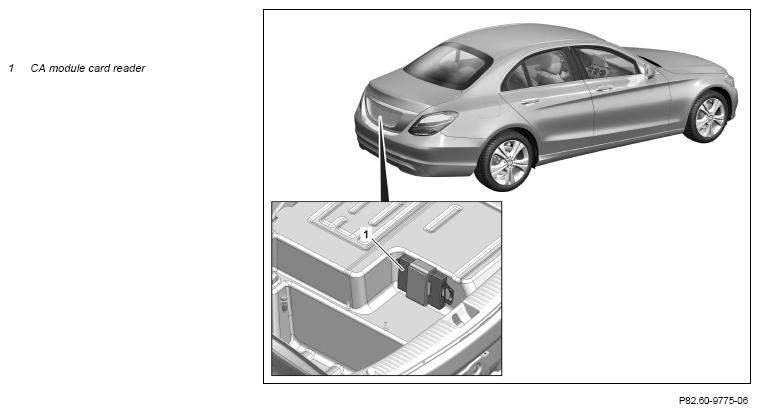

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove
1	Remove trunk recess cover	Model 205.0/3
			AR68.30-P-4600LW
2	Remove load compartment well lining	Model 205.2
	Install
3	Install electrical wiring harness for CA module card reader (1)		AZ82.60-P-0032-01LW
4	Retrofit bracket for CA module card reader (1)		AZ82.60-P-0032-02LW
5	Position trunk recess trim in trunk or load compartment well trim in load compartment, while guiding electrical wiring harness for CA module card reader (1) through previously drilled hole
6	Connect electrical wiring harness to CA module card reader (1) for TV tuner
7	Fasten CA module card reader (1) to bracket for CA module card reader (1)
8	Install trunk recess trim	Model 205.0/3
			AR68.30-P-4600LW
9	Install load compartment well trim	Model 205.2
	Update Vehicle Documentation (VeDoc)
10	Enter special equipment in on-line vehicle data card	Code 381 (CI+BOX card reader for DVB-T2 standard)
11	Attach note "CA module card reader retrofitted as per AZ82.60-P-0032LW" under field organization texts to design group 82
12	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
13	Carry out variant coding using software calibration number (SCN)	TV tuner
		CA module card reader (1) can only be operated in temperature range from 0 to 50°C. Outside of this temperature range, the CA module card reader (1) shuts off automatically.
14	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
15	Perform function test
