Remove Exit And Warning Lamp - AZ82.20-P-0020-02A

Model 156.9

with code U62 (Exterior light and sight package)

Model 166.0

with code 876 (Interior Light package)

except code 587 (Logo projection via mirror)

Model 166.8

with code 876 (Interior Light package)

except code 587 (Logo projection via mirror)

Model 176.0

with code U62 (Exterior light and sight package)

Model 205.0/1/2

with code 876 (Interior Light package)

Model 212.0/2

as of model year 2014

except code 953 (Standard equipment)

except code H76 (Facet-look aluminum trim)

Model 212.0/2

up to model year 2014

Model 213.0/1/2

with code 877 (Ambient lighting)

Model 246.2

with code U62 (Exterior light and sight package)

Model 253.3/9

with code 876 (Interior Light package)

Model 253.3/9

with code 877 (Ambient lighting)

Model 292.3

with code 876 (Interior Light package)

except code 587 (Logo projection via mirror)

1. Switch off entrance and exit illumination at overhead control panel control unit.

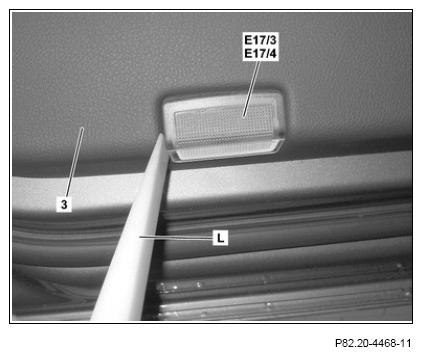

2. Remove left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4) from door trim (3) using long wedge (L).

   Unclip left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4) from below starting at the left side.

   The electrical connector is located on the right side and could otherwise be damaged.

   Courtesy of MERCEDES-BENZ USA

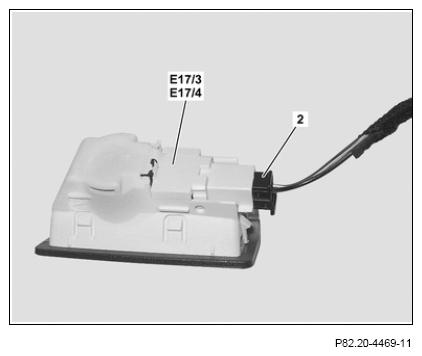

3. Detach black 2-pin connector socket (2) from left front door exit and warning lamp (E17/3) or right front door exit and warning lamp (E17/4).

Courtesy of MERCEDES-BENZ USA
