Install Exit And Warning Lamp With Logo Projector - AZ82.20-P-0020-01A
Model 156.9
with code U62 (Exterior light and sight package)
Model 166.0
with code 876 (Interior Light package)
except code 587 (Logo projection via mirror)
Model 166.8
with code 876 (Interior Light package)
except code 587 (Logo projection via mirror)
Model 176.0
with code U62 (Exterior light and sight package)
Model 205.0/1/2
with code 876 (Interior Light package)
Model 212.0/2
as of model year 2014
except code 953 (Standard equipment)
except code H76 (Facet-look aluminum trim)
Model 212.0/2
up to model year 2014
Model 213.0/1/2
with code 877 (Ambient lighting)
Model 246.2
with code U62 (Exterior light and sight package)
Model 253.3/9
with code 876 (Interior Light package)
Model 253.3/9
with code 877 (Ambient lighting)
Model 292.3
with code 876 (Interior Light package)
except code 587 (Logo projection via mirror)
Shown on model 176.0

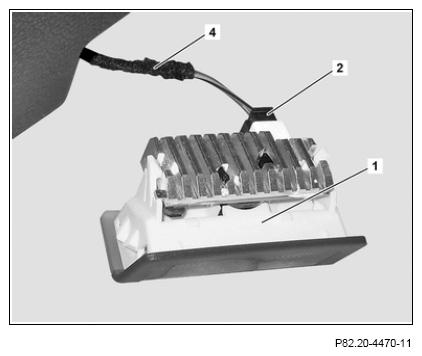

- Connect black 2-pin connector socket (2) of electrical line (4) to exit and warning lamp with logo projector (1).

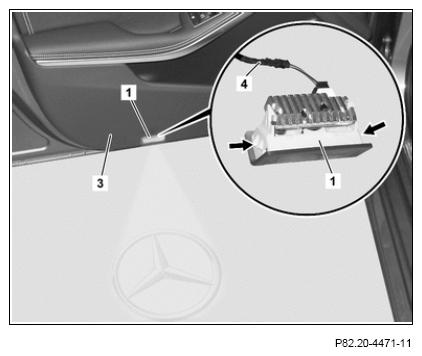

- Install exit and warning lamp with logo projector (1) in cutout of door panel (3).
Do not pinch or crush electrical line (4). Otherwise, the electrical line (4) may be damaged and the connected systems malfunction.
Install exit and warning lamp with logo projector (1) with the white lens facing downward. Ensure that catch tabs (arrows) are seated and engaged correctly in the door panel (3).
