Remove/Install Telephone Antenna Splitter - AR82.70-P-8956LWR

Model 205, 253, 293

with code 362 (HERMES communications module LTE)

Model 205, 253

with code 379 (Telephone module with Bluetooth® (SAP profile))

Model 205, 253

with code 386 (Comfort telephony)

Model 205, 253

with code B24 (Remote control for Auxiliary heating)

Model 205, 293

with code 899 (Multifunction telephony)

Model 205

with code 344 (Antenna preinstallation for taxi)

Model 253

with code 360 (HERMES UMTS)

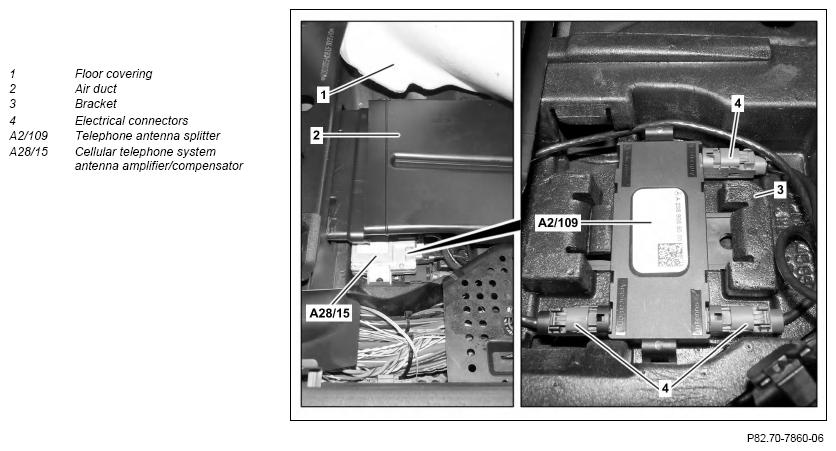

Shown with CODE 386 (Comfort telephony)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right front seat.	Model 205.4 with code 344 (Antenna preinstallation for taxi) Model 205.4 with code 362 (HERMES communications module LTE) Model 205.4 with code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.4 with code 386 (Comfort telephony) Model 205.4 with code 899 (Multifunction telephony) Model 205.4 with code B24 (Remote control for Auxiliary heating)	AR91.10-P-1000LWR
		Model 205.0/1/2/3, 293 with code 362 (HERMES communications module LTE) Model 205.0/1/2/3, 293 with code 899 (Multifunction telephony) Model 205.0/1/2/3 with code 344 (Antenna preinstallation for taxi) Model 205.0/1/2/3 with code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.0/1/2/3 with code 386 (Comfort telephony) Model 205.0/1/2/3 with code B24 (Remote control for Auxiliary heating)	AR91.10-P-1000LW
2	Release floor covering (1) at front right.
3	Release air duct (2).
4	Remove cellular telephone system antenna amplifier/compensator (A28/15) from holder (3) and place to one side with attached lines.	If installed.
5	Remove telephone antenna splitter (A2/109) from holder (3) and disconnect electrical connectors (4).	The number of electrical connections (4) may vary depending on the vehicle equipment involved.
6	Install in the reverse order.
