Remove/Install TV And DAB Antenna Amplifier - AR82.62-P-8312LWR

Model 205.4

with code 865 (digital TV)

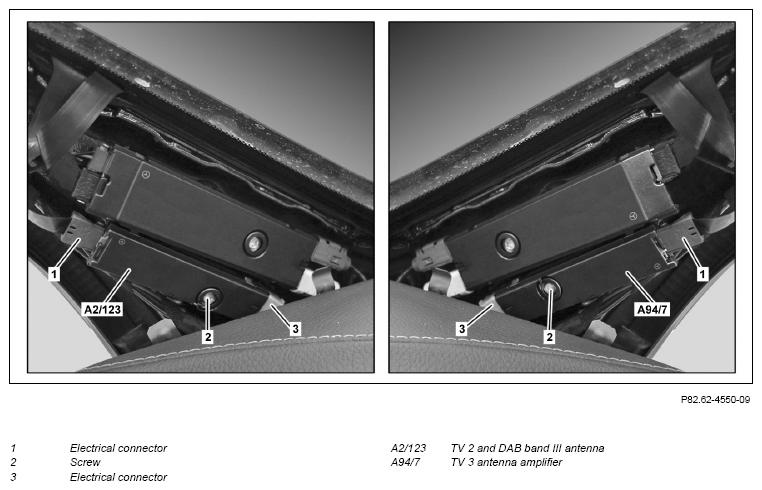

Fig 1: TV And DAB Antenna Amplifier Components Location - Model 205.4 With Code 865

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove A-pillar trim.		AR68.30-P-4050LW
2	Disconnect electrical connector (1).
3	Remove screw/bolt (2).	The screw/bolt (2) remains on the TV 2 and DAB Band III antenna amplifier (A2/123) and the TV 3 antenna amplifier (A94/7).
4	Unclip TV 2 and DAB Band III antenna amplifier (A2/123) or TV 3 antenna amplifier (A94/7) from A-pillar.
5	Disconnect electrical connector (3) and remove TV 2 and DAB Band III antenna amplifier (A2/123) or TV 3 antenna amplifier (A94/7).
	6	Install in the reverse order
