Remove/Install Radio/Audio/Video/Multimedia Tuner Unit - AR82.60-P-2002LWR
Model 205.4
up to model year 2019
with code 536 (Sirius satellite radio complete system)
Model 205.4
up to model year 2019
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 205.4
up to model year 2019
with code 865 (digital TV)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission tuner unit (A90/4). | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove rear load compartment floor. | ||
| 4 | Remove luggage compartment well cover. | ||
| 5 | Remove 360° camera control unit. | Model 205.4 up to model year 2019 with code 501 (360° camera) with code 536 (Sirius satellite radio complete system) Model 205.4 up to model year 2019 with code 501 (360° camera) with code 537 (DAB digital radio standard (Digital Audio Broadcast)) Model 205.4 up to model year 2019 with code 501 (360° camera) with code 865 (digital TV) |
|
| AR54.65-P-0012LWR | |||

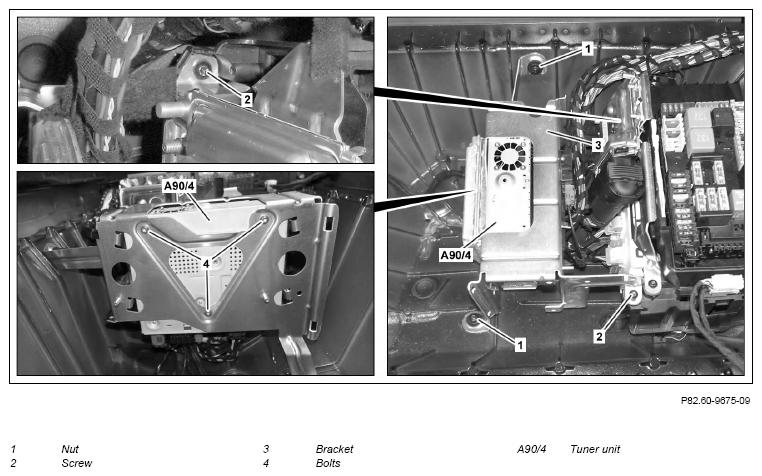

| 6 | Remove bolts (4) and lower tuner unit (A90/4). | ||
| 7 | Unscrew nuts (1), remove bolts (2) and move holder (3) to one side. | ||
| 8 | Disconnect electrical connectors from tuner unit (A90/4). | ||
| 9 | Remove tuner unit (A90/4). | ||
| 10 | Install in the reverse order. |
