Remove/Install Radio/Audio/Video/Multimedia Tuner Unit - AR82.60-P-2002LW
Model 205.0/2/3
up to model year 2019
with code 536 (Sirius satellite radio complete system)
Model 205.0/2/3
up to model year 2019
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
Model 205.0/2/3
up to model year 2019 with code 865 (digital TV)

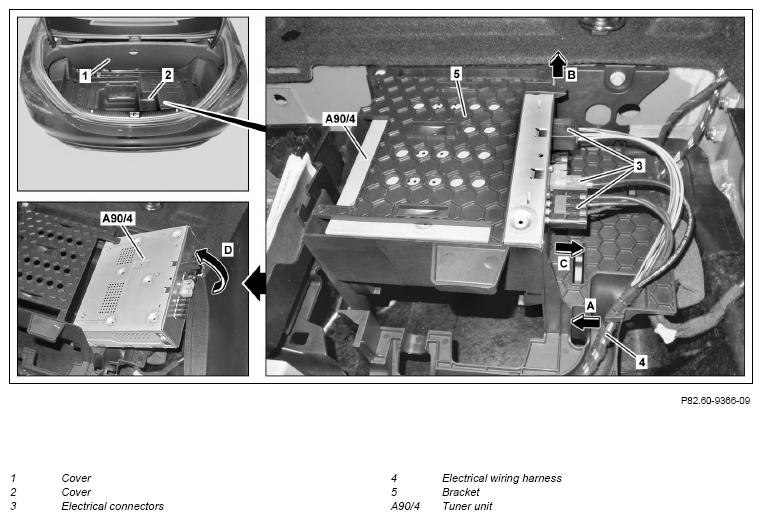

Fig 1: Multimedia Tuner Unit Components Location - Model 205.0/2/3 Up To Model Year 2019 With Code(s) 536, 537 And 865
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission tuner unit (A90/4). | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove cover (1). | ||
| 4 | Remove trim (2). | ||
| 5 | Disconnect electrical connection (3). | ||
| 6 | Unhook electrical wiring harness (4) (arrow A). | ||
| 7 | Lift up catch hook on holder (5) (arrow B) and push tuner unit (A90/4) out of holder (5) (arrow C). | ||
| 8 | Swivel tuner unit (A90/4) upwards (arrow D) and remove. | ||
| 9 | Install in the reverse order. |
